1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV

China 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV supplier
1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV supplier 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV supplier 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV supplier 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV supplier

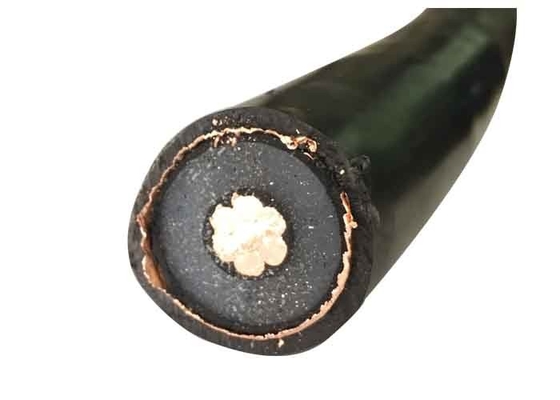

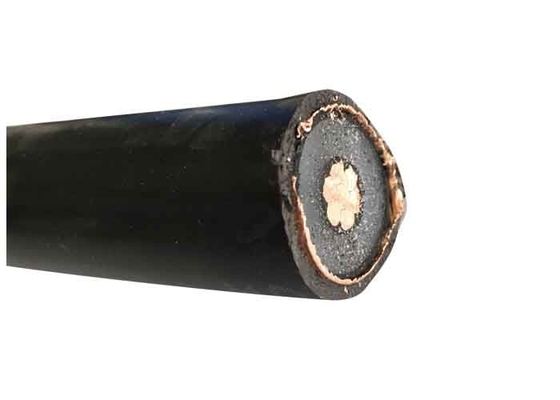

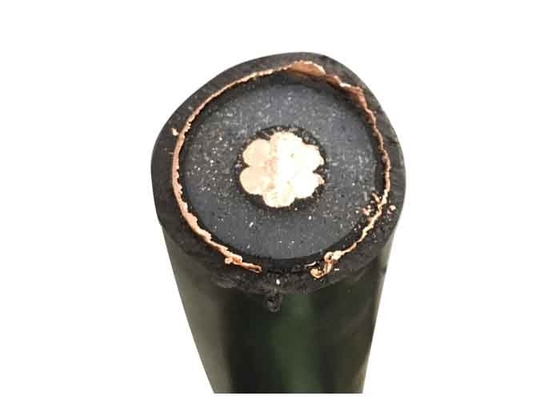

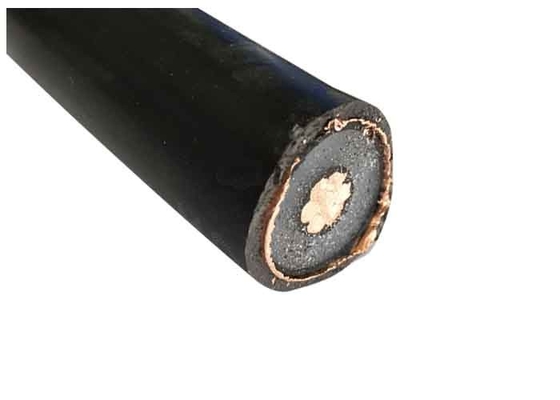

Large Image :  1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Cross Section Area: 1-630mm2 Conductor: Compacted And Stranded Copper
Insulation: XLPE Screen: Copper Tape
Sheath: PVC (ST2) Application: Power Station
High Light:

xlpe insulated cable

,

xlpe electrical cable

1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV



Cable Application



Cu/XLPE/CTS/PVC/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation, semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.

Technical Information

Conductor Material: Copper
Conductor Identification: Coloured tape under screen
Conductor Shape: Circular
Conductor Flexibility: Stranded class 2
Material of the Inner Semi-conductor: Semi-conducting compound
Insulation: XLPE (Chemical)
Armour Type: Aluminium wires
Screen: Copper tape
Outer Sheath: PVC
Inner Sheath: PVC
Material of the External Semi-conduct: Extruded strippable
Colour: Red
Lead Free: Yes
Rated Voltage Uo/U (Um): 6350/11000V to BS6622 & IEC 60502-2
Installation Temperature: Minimum: 0°C Maximum: 60°C
Installation Type: Direct burial or in ducts
Operating Temperature: Minimum: -15°C Maximum: 90°C
Short-circuit Maximum Conductor Temperature: 250°C
Flame Retardant: Yes, IEC 60332-1
Bending Radius: 15 x Ø

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
