Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class

China Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class supplier
Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class supplier Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class supplier Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class supplier Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class supplier

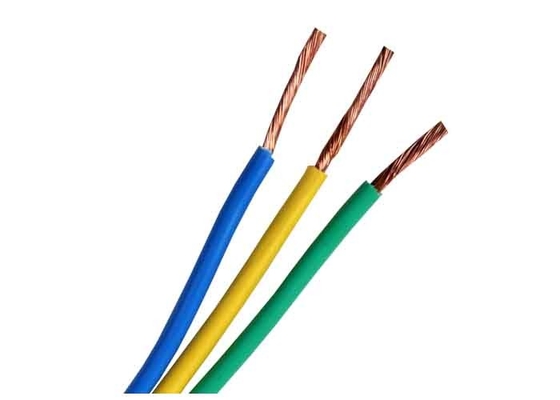

Large Image :  Green Blue Insulated Wire Cable For Switch Control , 450/750v 5 Conductor Class

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: RV/HO7V-k

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Conductor: Flexible Copper Conductor,comform To IEC 60228 Class5 Insulation: PVC
Rated Voltage: 450/750v Working Temperature: Not More Than 70℃
Min Bending: 6xO.D Conductor Class: 5
High Light:

electrical wire cable

,

insulated wire cable

Single-core non-sheathed cables with flexible conductor for general purposes 450/750v



Descriptions

Single-core non-sheathed cables with flexible conductor for general purposes

Code designation:60227 IEC o2 (International),RV 450/750v(China),H07V-K(VDE)



Constructions

1. Conductor:  flexible copper conductor,comform to IEC 60228 class5

2. Insulation:PVC/C



Applications

Used in the switch control,relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equiment, motor starters and controllers.



Standards

International:IEC 60227

China:GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical date

Rate voltage:450/750v

Max.Conductor Temp. in normal use: 70℃

Min. Bending Radius: 6 x cable O.D



Certificates

CE,RoHS,CCC,KEMS and more others at request



Specifications

Nom.Cross-section Area Thickness of insulation Mean.O.D. Max.R of conductor at 20℃ Min.Insulation resistance at 70℃ Approx.weight
Lower Limit Upper Limit
mm2 mm mm mm ohm/km M ohm˙km kg/km
1.5 0.7 2.8 3.4 13.1 0.010 20.3
2.5 0.8 3.4 4.1 7.98 0.009 31.6
4 0.8 3.9 4.8 4.95 0.007 47.1
6 0.8 4.4 5.3 3.30 0.006 68.0
10 1.0 5.7 6.8 1.91 0.0056 112.0
16 1.0 6.7 8.1 1.21 0.0046 179.0
25 1.2 8.4 10.2 0.780 0.0044 281.0
35 1.2 9.7 11.7 0.554 0.0038 381.0
50 1.4 11.5 13.9 0.386 0.0037 521.0
70 1.4 13.2 16.0 0.272 0.0032

734.0

95 1.6 15.1 18.2 0.206 0.0032 962.0
120 1.6 16.7 20.2 0.161 0.0029 1180.0
150 1.8 18.6 22.5 0.129 0.0029 1470.0
185 2.0 20.6 24.9 0.106 0.0029 1810.0
240 2.2 23.5 28.4 0.0801 0.0028 2535.0
