Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard

China Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard supplier
Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard supplier Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard supplier Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard supplier Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard supplier

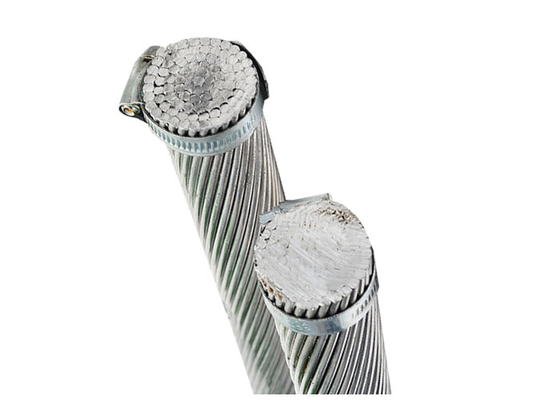

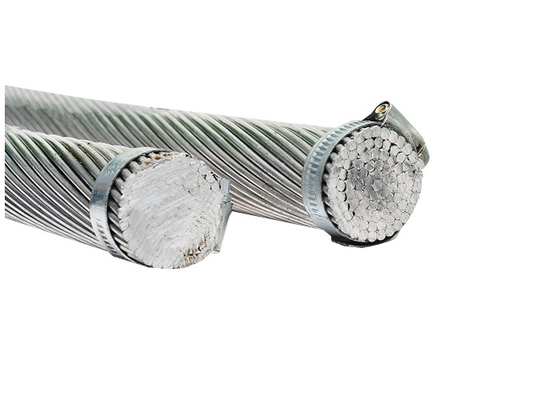

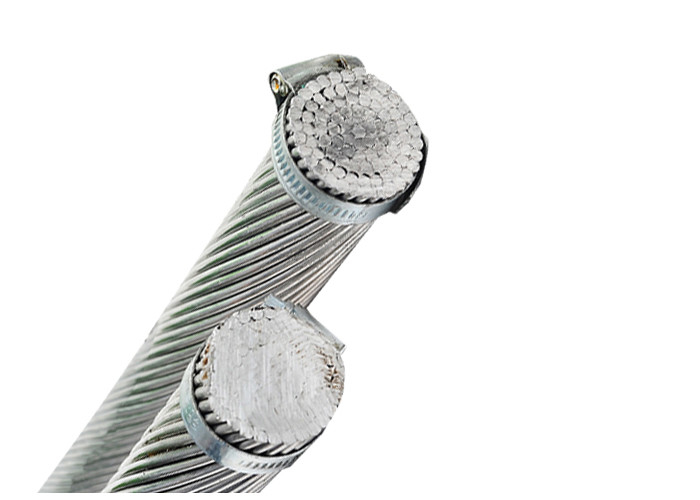

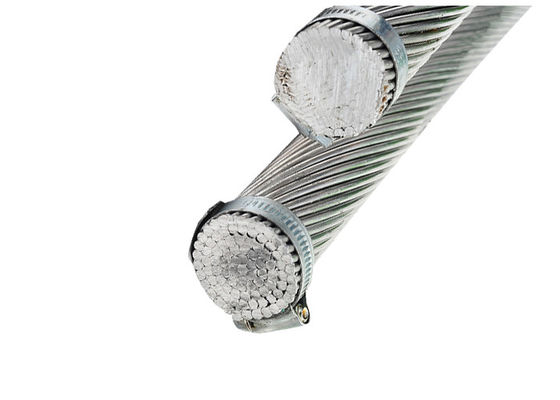

Large Image :  Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: KEMA/CE/TUV/ISO
Model Number: ACSR 1033.5MCM

Payment & Shipping Terms:

Minimum Order Quantity: 500m
Price: USD 0.06-8.52/M
Packaging Details: Wooden Drum
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 962758KM/Day
Detailed Product Description
No.of Al Wire: 45/3.85mm No.of Steel Wire: 7/2.57mm
Tensile Strength: 124KN D.C.Resistance: 0.049 Ω/km
Lay Direction: Rightward Weight: 1732KG/KM
High Light:

overhead line Conductor

,

bare overhead conductors

Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard China Shanghai Manufacturer.



1. Applications

ACSR conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.



Shanghai Shenghua Cable (Group)Co.,Ltd.
Test Report
Specification : ACSR1033.5MCM Ortlan Item: Aluminum Conductor
Steel Reinforced
Standard: ASTM B 232 Date: 2017.1.5
No. Item Standards and Requirements Test Results Evaluation
1 Dimension of conductor
1-1 Overall Diameter mm 30.81±1% 30.82 Qualified
1-2 Number of AL. wire 45 45 Qualified
1-3 Number of steel wire 7 7 Qualified
1-4 Diameter of Al.wire (mm) 3.85±1% 3.850 3.852 3.858 Qualified
1-5 Diameter of steel wire (mm) 2.57±0.051 2.572 2.580 2.604 Qualified
1-6 Stranding direction Rightward Rightward Qualified
1-7 Appearance The surface of the stranded wire is smooth, glossy and tightly stranded Meet the requirement Qualified
2 Lay ratio
2-1 Lay ratio of steel wire 18-30 18.1 Qualified
2-2 Lay ratio of 12 wire layer 10-17 15.8 Qualified
2-3 Lay ratio of 18 wire layer 10-16 13.6 Qualified
2-4 Lay ratio of 24 wire layer 10-13 11.3 Qualified
3 Performance of steel wire
3-1 Tensile strength MPa ≥1340 1410 Qualified
3-2 Elongation(250mm) % ≥3.5 3.6 Qualified
3-3 Stress at 1% extension MPa ≥1280 1302 Qualified
3-4 Mass of Zinc coating g/m2 ≥229 254 Qualified
3-5 Zinc coating adherence No crack Meet the requirement Qualified
3-6 Wrapping test The wire shall be wrapped around 1 time the diameter of the wire, from a close helix of eight turns,
wire shall not crack
Meet the requirement Qualified
4 Performance of aluminum wire
4-1 Tensile strength MPa (after) ≥160 163 Qualified
4-2 Wrapping test The wire shall be wrapped around 1 time the diameter of the wire, from a close helix of eight turns, withdraw six turns, wire shall not crack Meet the requirement Qualified
4-3 D.C. resistivity at 20℃ Ω.mm2/m ≤0.028264 0.027812 0.027902
0.027721 0.027825
Qualified
5 Performance of conductor
5-1 Tensile strength kN ≥123.1 124 Qualified
5-2 D.C. resistance at 20℃ Ω/km ≤0.05531 0.049 Qualified
5-3 Weight kg/km 1732 1732.1 Qualified
5-4 Lay direction Rightward Rightward Qualified
Conclusion: The performances tested meet the technical requirements of ASTM B 232, IEC 60888, IEC 60889. Permission to deliver the products.

Tested by:   Checked by:   Approved by:





Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard 0
