Product Details:
Payment & Shipping Terms:
|
| Power Line Core: | 3 Core | Ground Core: | 1 Core |
|---|---|---|---|
| Control Core: | 3-4 Core | Application: | Mining |
| Power Line Core Size: | 16-185 Mm2 | Jacket: | Rubber |
| Insulation: | Rubber | ||
| High Light: | rubber insulated cable,rubber electrical cable |
||

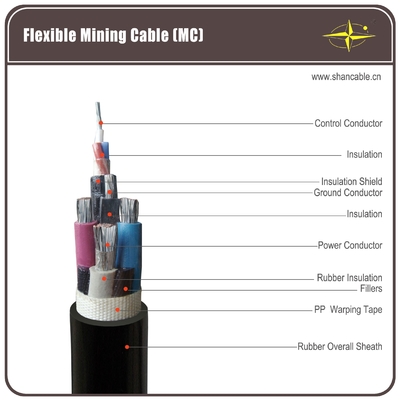

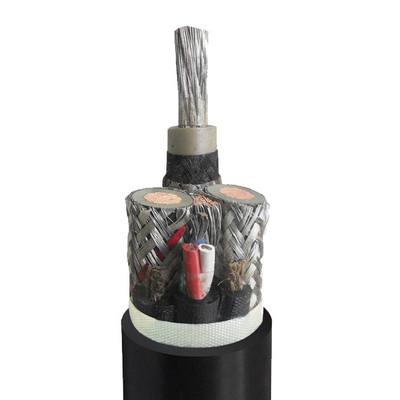

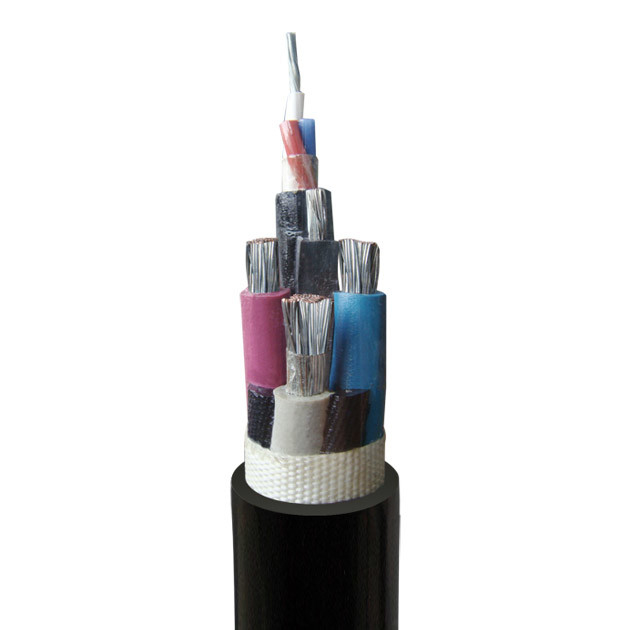

Coal winning machine rubber sheathed soft cable at rated voltage 0.38/0.66
1.USE
Rated voltage of power supply of 0.38/0.66kv mining and similar equipment connected
2.Operation character

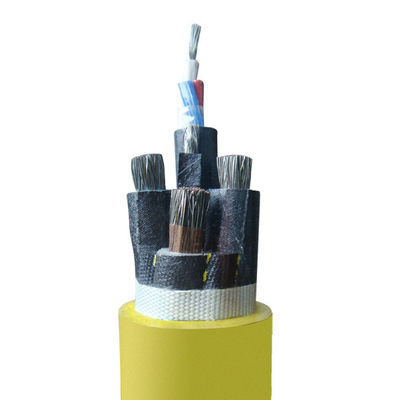

The line core allows for a long time working temperature of 65 degrees, the minimum bending radius of the wire is 6 times the diameter of the cable. The yellow jacket cable shall not be exposed to the sun for long time.
3.Model
MC-0.38/0.66
4.Specification size
| Core x Conductor Nominal section(mm2) | Nominal thickness(mm) | Cable outside diameter(mm) | ||||
| Power line core | Ground core | Control core | Power line core insulation | thickness | minimum value | Maximum value |
| 3x16 | 1x4 | 3x2.5 | 1.6 | 4.5 | 29.5 | 34.5 |
| 3x25 | 1x6 | 4x2.5 | 1.8 | 5.5 | 36.0 | 41.0 |
| 3x35 | 1x6 | 4x4 | 1.8 | 5.5 | 39.0 | 45.0 |
| 3x50 | 1x10 |
4x4 |
2.0 | 5.5 | 44.0 | 50.5 |
| 3x70 | 1x16 | 4x6 | 2.0 | 6.0 | 50.0 | 57.5 |
| 3x95 | 1x25 | 4x6 | 2.2 | 6.0 | 56.0 | 63.5 |
| 3x120 | 1x25 | 4x6 | 2.4 | 6.0 | 60.5 | 68.5 |
| 3x150 | 1x35 | 4x10 | 2.4 | 6.0 | 65.0 | 73.0 |
| 3x185 | 1x35 | 4x10 | 2.6 | 6.0 | 71.0 | 79.0 |
The above parameters are only part of the parameters, for reference only.
FAQ
A: Yes, we welcome sample order to test and check quality.
A:Sample needs 3-5 days, mass production needs 2-3 weeks .
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 year warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
