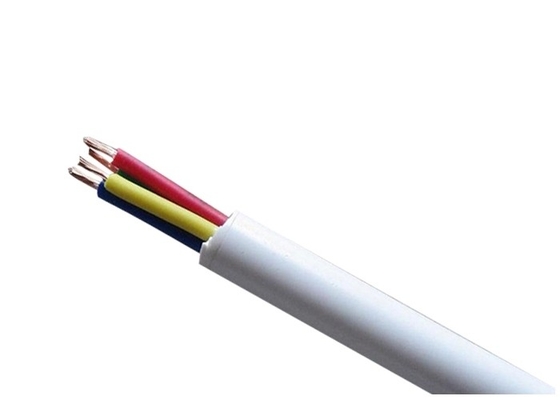

BVV 300V / 500V Multi Core Copper Conductor House Wiring Cable

Descriptions

Light PVC Sheathed Cable for fixed wiring.

Code designation : 60227 IEC 10 ( International ) , BVV 300 / 500V ( China )

Constructions

1. Conductor : Plain circular solid copper conductor , comform to LEC 60228 class 1

                  Plain circular stranded copper conductor , comform to IEC 60228 class 2

2. Insulation : PVC / C

3. Inner Covering

4. Overall Sheath : PVC type ST₄ .

Note : Insulation color as per standards or at request

Applications

Used as fixed wiring cable of rated voltage 300 / 500V

Standards

International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request

Technical data

Rated voltage : 300 / 500V

Max Conductor Temp . in normal use : 70℃

Min Bending Radius : 4 x cable O.D

Certificates

CE , ROHS , CCC , KEMA and more others at request

Specifications

Nom.Cross-section Area	Conductor Type	Thickness of insulation	Inner covering Thickness	Sheath Thickness	Mean.O.D.		Min.Insulation resistance at 90℃	Max.R of conductor at 20℃
					Lower Limit	Upper Limit
mm2		mm	mm	mm	mm	mm	MΩ*KM	Ω/km
2x1.5	1	0.7	0.4	1.2	7.6	10.0	0.011	12.1
2x1.5	2	0.7	0.4	1.2	7.8	10.5	0.010	12.1
2x2.5	1	0.8	0.4	1.2	8.6	11.5	0.010	7.41
2x2.5	2	0.8	0.4	1.2	9.0	12.0	0.009	7.41
2x4	1	0.8	0.4	1.2	9.6	12.5	0.0085	4.61
2x4	2	0.8	0.4	1.2	10.0	13.0	0.0077	4.61
2x6	1	0.8	0.4	1.2	10.5	13.5	0.0070	3.08
2x6	2	0.8	0.4	1.2	11.0	14.0	0.0065	3.08
2x10	1	1.0	0.6	1.4	13.0	16.5	0.0070	1.83
2x10	2	1.0	0.6	1.4	13.5	17.5	0.0065	1.83
