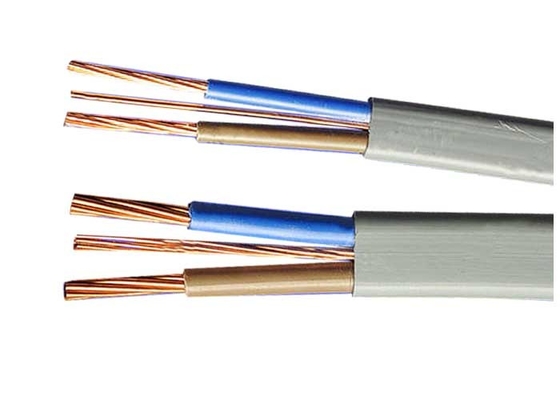

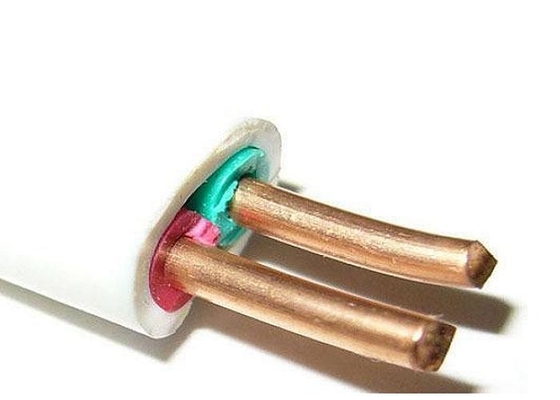

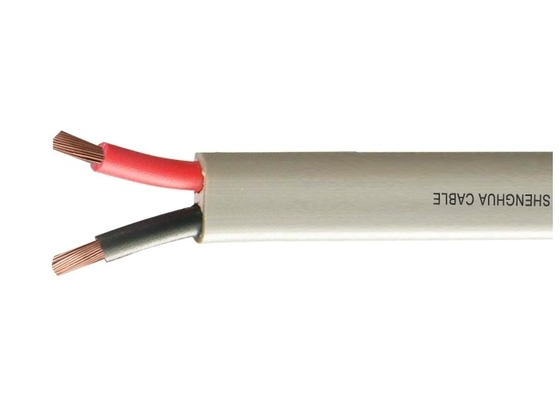

Bvvb Solid / Stranded Copper Conductor Pvc Sheath Multi - Core Cables

China Bvvb Solid / Stranded Copper Conductor Pvc Sheath Multi - Core Cables supplier
Bvvb Solid / Stranded Copper Conductor Pvc Sheath Multi - Core Cables supplier Bvvb Solid / Stranded Copper Conductor Pvc Sheath Multi - Core Cables supplier Bvvb Solid / Stranded Copper Conductor Pvc Sheath Multi - Core Cables supplier

Large Image :  Bvvb Solid / Stranded Copper Conductor Pvc Sheath Multi - Core Cables

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: BVVB

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Sheath: Pvc Core: 2-3 Core
Conductor: Solid Or Stranded Copper Rated Voltage: 300/500v
Certificates: CE,ROHS,CCC,KEMA And More Other At Request Size: 0.75-10mm
High Light:

electrical wire cable

,

insulated wire cable

bvvb solid or stranded copper conductor pvc sheath multi-core cables

Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal in rectifier equipment, motor straters and controllers.



Descriptions

Ordinary PVC Sheathed cord
Code designation : 60227 IEC 53 ( International ),BVVB 300/500v(china).

Constructions

1. Conductor : Solid or stranded  copper conductor , comform to IEC 60228 class 1or 2
2. Insulation : PVC / D
3.sheath:PVC type ST5


Standards

International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request

Technical data

Rated voltage : 300 / 500 V

Max . Conductor Temp . in normal use : 70℃

Min Bending Radius : 6 x cable O.D

Certificates
CE,ROHS,CCC,KEMA and more others at request



Specifications

non.cross-section of conductor number/diameter of core max.overall diameter approx. weight max.D.C. resistance of conductor(20℃)
mm2 mm mm kg/km Ω/km
2x0.75 2x1/0.97 4.6x7.0 43.7
2x1.0 2x1/1.13 4.8x7.4 51.0
2x1.5 2x1/1.38 5.4x8.4 65.9
2x2.5 2x1/1.78 6.2x9.8 95.7 7.41
2x4 2x7/0.85 7.2x11.5 146 4.61
2x6 2x7/1.04 8.0x13.0 200 3.08
2x10 2x7/1.35 9.6x16.0 323 1.83



After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
