Product Details:
Payment & Shipping Terms:
|
| Cable Type: | XLPE Insulated Power Cable | Cable Shield: | Copper Wire+tape Shield |
|---|---|---|---|
| Conductor Screen: | Semi Conductive Compound | Cable Size: | 500mm2 |
| Cable Structure: | Single Core | Cable Core: | Single |
| Cable Application: | Outdoor | Insulation Material: | XLPE |
| Sheath: | PE | Model: | YJSY13 |
| High Light: | 12/20kV Single Core POWER CABLE,Single Core POWER CABLE,PE Single Core POWER CABLE |
||
The XLPE Insulated Power Cable is suitable for a variety of industries including power plants, hospitals, airports, and factories. It is ideal for use in high temperature and high voltage environments, and is capable of withstanding high loads in harsh conditions. The cable is designed for a long service life, withstanding over-currents, over-voltages, and short-circuit conditions. It is also corrosion-resistant, making it an ideal choice for use in wet or damp environments.
The XLPE Insulated Power Cable is designed for installation in a variety of indoor applications, and is compliant with international standards such as IEC, BS, ASTM, and VDE. The cables are easy to install and maintain, making them a cost-effective and reliable solution for any indoor power needs.
The XLPE Insulated Power Cable from SHAN CABLE is a great choice for indoor applications. This cable features a model number of YJV, and has a voltage rating of 12/20(24kV). It's produced with PVC jacketing and is compliant with the IEC standard. The cable is made of either copper or aluminum, and is specially designed to provide excellent electrical insulation. Whether it's residential or commercial, the XLPE Insulated Power Cable is the perfect choice for outdoor applications.
Power cables are cables used to transmitand distribute electrical energy. Power cablesare commonly used in urban undergroundpower grids, power station lead lines, interna!power supply in industrial and miningenterprises,and underwater transmission linesacross rivers and seas. In power lines, theproportion of cables is gradually increasing.Power cables are cable products used totransmit and distribute high-power electric
energy in the main lines of the power system,
including power cables of various voltage
levels and various insulations from 1-500KV
and above.Our Standardized lEc 60502.2
conductors continues to serve our
international clients since year 2000 up to present

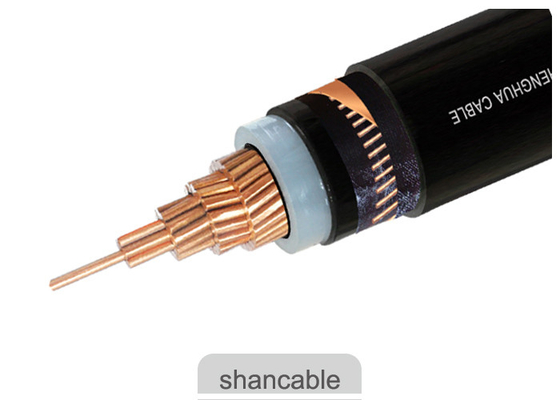

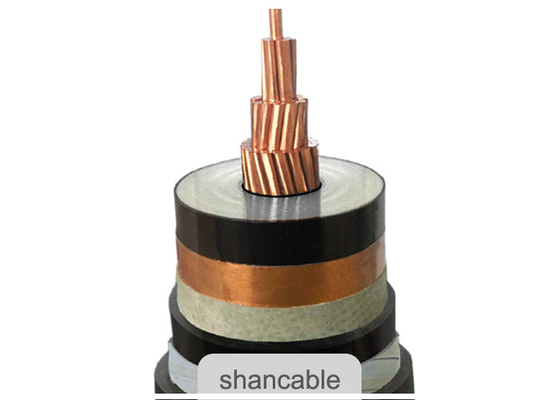

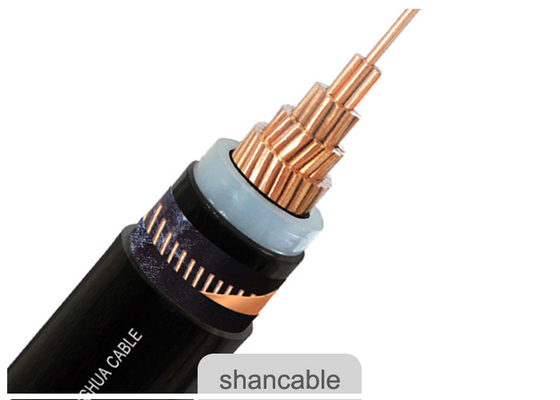

Detail Specification:

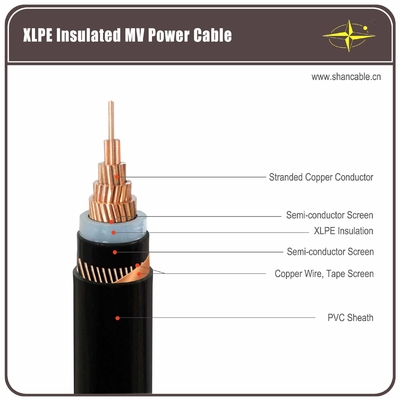

| Construction | |||
| Quotation Item | 1 | ||
| Model No.: CU/XLPE/CWS/PE 12/20kV | 1x500/35 | ||
| 1 | Conductor | ||
| Material | Stranded Copper Conductor | ||
| Type | Class 2 | ||
| No./Diameter before stranded | 61/3.23 mm | ||
| 2 | Conductor screen | ||
| Material | Semi-conductive material | ||
| Thickness | 0.9mm | ||
| 3 | Insulation | ||
| Material | XLPE | ||
| Thickness | 5.5mm | ||
| 4 | Insulation screen | ||
| Material | Semi-conductive material | ||
| Thickness | 1.0mm | ||
| 5 | Metallic Screen | ||
| Material | Copper Wire With Copper Tape Open Wrapping | ||
| Copper Tape Gape Wrapping | 35SQMM Copper Wire With 0.05mm Thickness Copper Tape | ||
| 6 | Wraping Tape | ||
| Material | Non-woven Wraping Tape | ||
| 7 | Overall Sheath | ||
| Material | PE | ||
| Thickness | 2.6mm | ||
| Approx Overall Diameter | 50.1mm | ||
| Cable marking by ink jet printing | |||
| SHANGHAI SHENGHUA CABLE GROUP CU/SC/XLPE/CWS/PE 1x500/35 SQMM 12/20 KV ***M | |||
| Technical Data & Packing | |||
| 1 | Rated voltage | 12/20(24KV) | |
| 2 | Testing Voltage(5 minutes) | 42kV | |
| 3 | Max. Resistance of Conductor D.C at 20℃ |
0.0366Ω/km | |
| 4 | Max. Resistance of Conductor at A.C at 90℃ |
0.0468Ω/km | |
| 5 | Approx Weight | 6350 kg/km | |
| 6 | Working Temp. of conductor | 90℃ | |
| 7 | Min.Installation temp | >0℃ | |
| 8 | The current carrying capacity of Cable in Soil(25℃) Flat Laying |
830A | |
| 9 | The current carrying capacity of Cable in Air(40℃)Flat Laying |
1030A | |
| 10 | The short current rating for Conductor(1s) |
71.55kA | |
| 11 | Bending Radious | 15xO.D. | |
| 12 | Type of packing | Wooden-steel drum | |
SHENGHUA CABLE offers customized XLPE Insulated Power Cable for different applications. Our XLPE Insulated Power Cable is designed with model number YJV, and it is provided with insulation material of XLPE, voltage rating of 0.6/1kV, and cable jacket of PVC. The cable size is in the range of 1.5-0mm2 and cable core can be 2-5 cores.
We provide technical support and services for our XLPE Insulated Power Cable products. Our experts are available to answer any questions you may have about the product and to provide guidance and advice on its installation and use. We also offer a range of installation and maintenance services, including on-site installation and repair, and remote diagnostics and troubleshooting. We also offer technical training courses to ensure that users are familiar with the product and its features, and can maximize its effectiveness and efficiency.
