Product Details:
Payment & Shipping Terms:
|

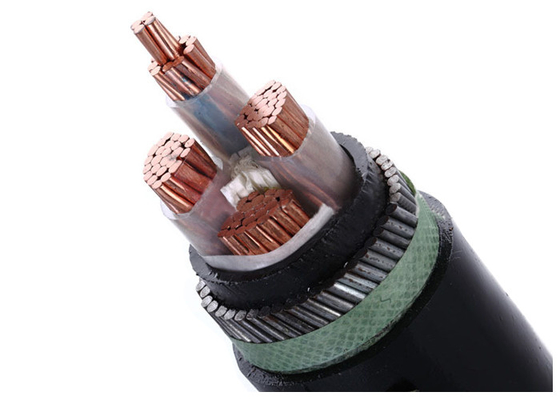

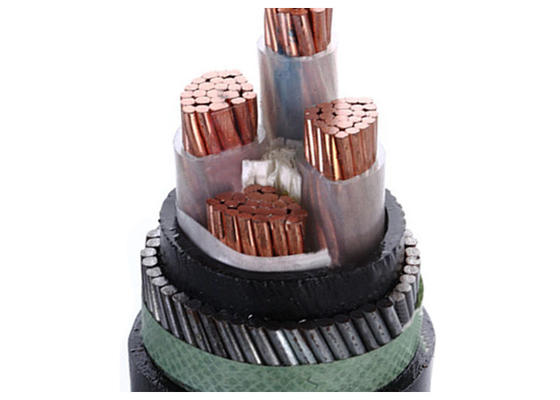

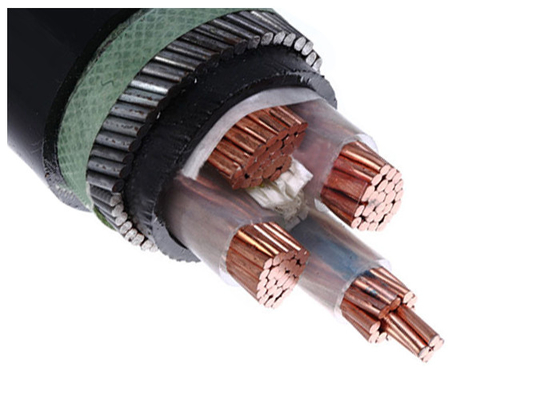

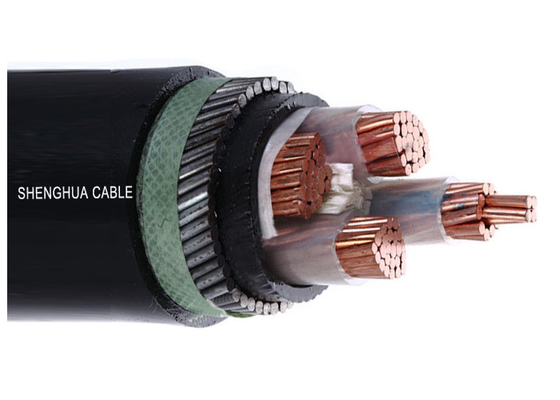

| Product Name: | PVC Power Cable | Rated Voltage: | 0.6/1kV |
|---|---|---|---|
| Insulation: | PVC | Conductor: | Copper |
| Armour: | Fine Steel Wire Armour | Sizes: | 1.0 - 630 SQMM |
| Cores: | 4 Core | Jacket: | PVC |
| Free Sample: | Yes | Warranty: | 2 Years |
| Standards: | IEC / BS / IS / VDE | ||
| High Light: | armoured power cable,armoured electric cable |
||
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation :PVC
Inner covering : PVC
Armoring : Fine steel wire
Sheath : PVC type ST2 to IEC 60502, black
V: PVC insulation
V: PVC sheath
32: Galvanized steel wire armoring
Applications
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST2 to IEC 60502, black
Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
Rated voltage, No. of core and range of sectional area
Rate Voltage(kv):0.6/1kV 1.8/3kV 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV
Equivalent to : 0.6/1kV 1.9/3.3kV 3.8/6.6kV 6.35/11kV 8.7/15kV 12.7/22kV 19/33kV 21/35kV
No. of core and sectional area(mm2) :
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Type Description & Application Occasion
| YJV | Copper Conductor, XLPE Insulated, PVC Sheathed Power Cable | For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
| YJLV | Al. Conductor, XLPE Insulated, PVC Sheathed Power Cable | |
| YJY | Copper Conductor, XLPE Insulated, PE Sheathed Power Cable | For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
| YJLY | Al. Conductor, XLPE Insulated, PE Sheathed Power Cable | |
| YJV22 | XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable | Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
| YJLV22 | Al. Insulated,Steel Tape Armored,PVC Sheathed Power Cable | |
| YJV32 | Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable | Apply to shafts,water and soil,able to bear the larger positive pressure. |
| YJLV32 | Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable | |
| YJV42 | Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable | For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force. |
| YJLV42 | Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable |
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
