4 Core 185 Sqmm SWA Armoured Power Cable Copper Conductor XLPE/PVC Insulated Steel Wire Armored Cable

China 4 Core 185 Sqmm SWA Armoured Power Cable Copper Conductor XLPE/PVC Insulated Steel Wire Armored Cable supplier

Large Image :  4 Core 185 Sqmm SWA Armoured Power Cable Copper Conductor XLPE/PVC Insulated Steel Wire Armored Cable

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,KEMA
Model Number: VV32 YJV32 4*185mm2

Payment & Shipping Terms:

Minimum Order Quantity: 300meter
Price: US$3.1~125.7 per meter
Packaging Details: Drum
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25000Kilometers a Month
Detailed Product Description
Model Name: Armored Cable Conductor: Copper
Size: 185 Sqmm Core No.: 4 Cores
Free Sample: Avaliable Warranty: 2 Years

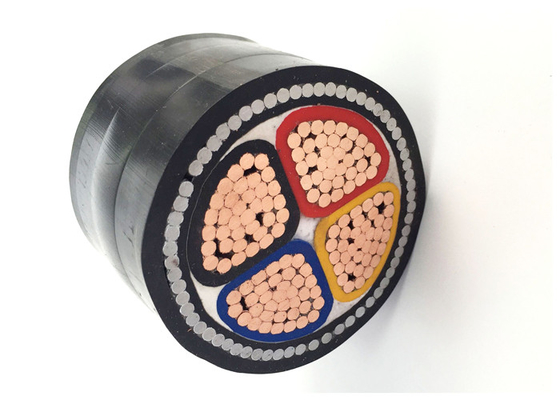

4 Core 185 Sqmm SWA Armoured Power Cable Copper Conductor XLPE/PVC Insulated Steel Wire Armored Cable

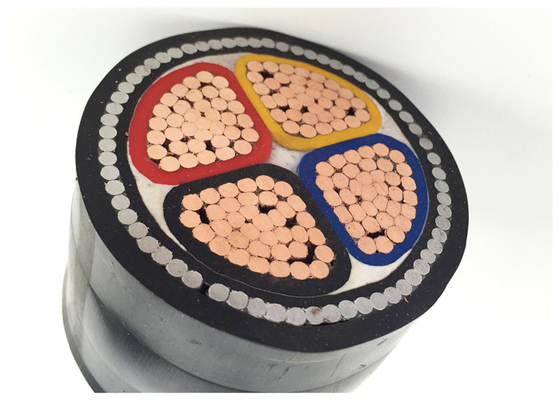

Cable structure



Conductor Copper Conductor as per IEC 60228
Circular or Shaped conductor
Flexible conductor(class 5) optional
Insulation PVC(polyvinyl chloride) rated at 75℃,many color optional, or XLPE
Metallic Screen optional Copper tape or copper wires braiding optional
Armored Steel wire
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization






Technical data: Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90 ℃), emergency (250℃) or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius:

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor





Applications: PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc.







Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request






Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.





Our Services



♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.







FAQ


Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

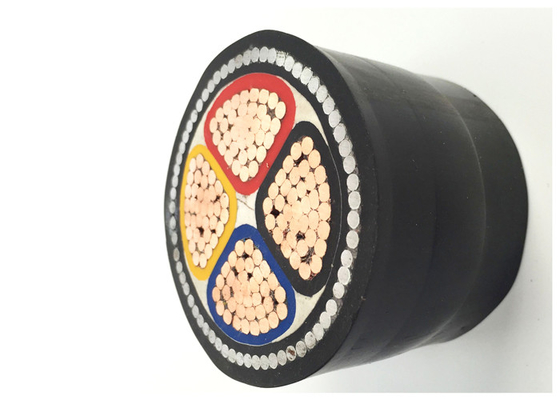

4 Core 185 Sqmm SWA Armoured Power Cable Copper Conductor XLPE/PVC Insulated Steel Wire Armored Cable
