Product Details:
Payment & Shipping Terms:
|
| Product Model: | AL/XLPE/STA Cable | Conductor: | Aluminum |
|---|---|---|---|
| Insulation: | XLPE | Armour Material: | Steel Tape |
| Cores: | 3 Core | Sheath Material: | PVC, PE, LSOH |
| Certificate: | KEMA, Type Test | Standard: | IEC, BS, IS, VDE |
| High Light: | armoured power cable,armoured electric cable |
||

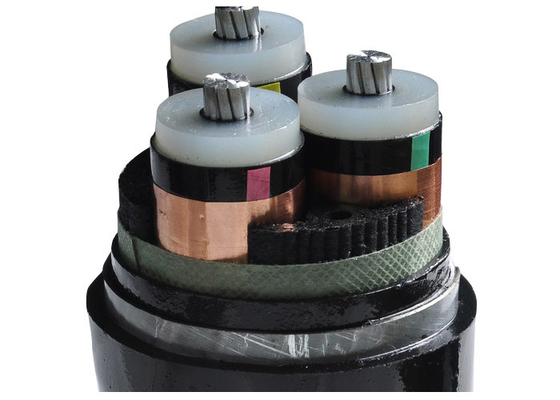

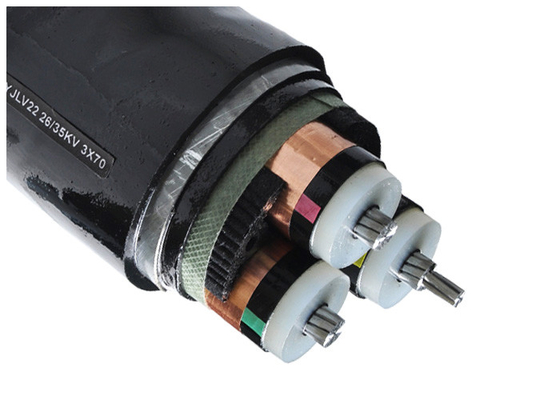

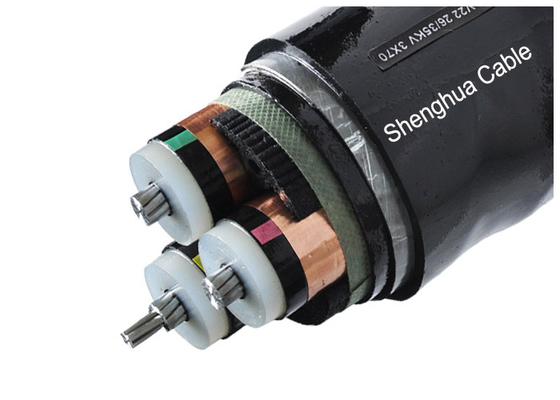

Construction
CU (AL)/XLPE Insulated Electric Cable
Copper (Aluminum)/XLPE insulation/Steel wire armored /PVC Sheath cables
The flame-retardant cable covers all kinds of low-smoke,low-halogen, low-smoke halogen free,and non-smoke nonhalogenated and three classes ofA, B, C.
The cable is used in electric transmission and distribution system operating at rate voltage of 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 18/30, 26/35KV.
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable.
XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting antithetical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Application
Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
| MV(11kv 15kv 33kv) Power Cable | ||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
| Cu core | ||
| YJV, N2XSY;PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | ||
| Al Core | ||
| YJLV, NA2XSY; PVC sheathed power cable | ||
| YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
Standard
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Technical data:
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| 12 / 20 kV | [kV] | 42 / 5 min. | |
| 18 / 30 kV | [kV] | 63 / 5 min. | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
Certificate
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
