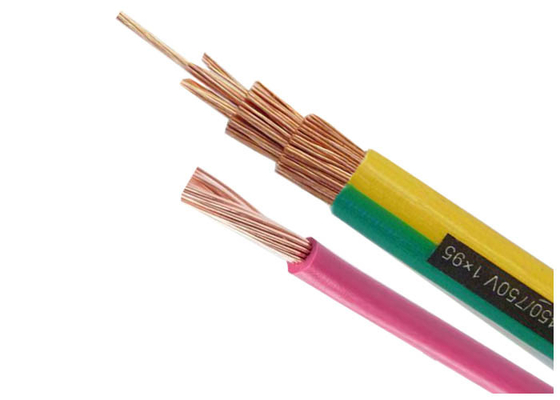

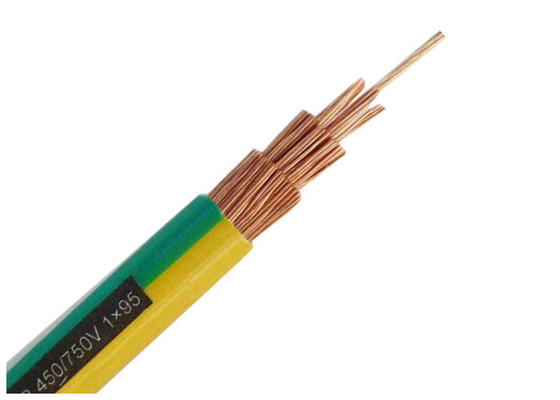

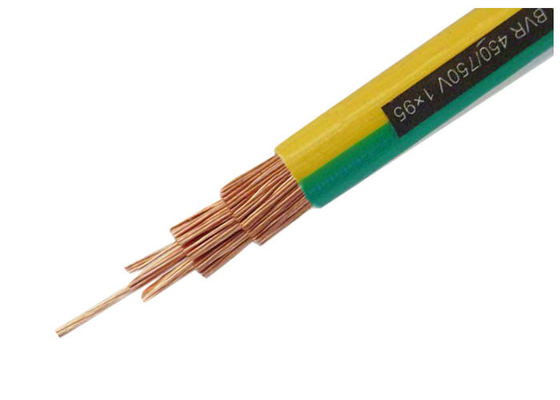

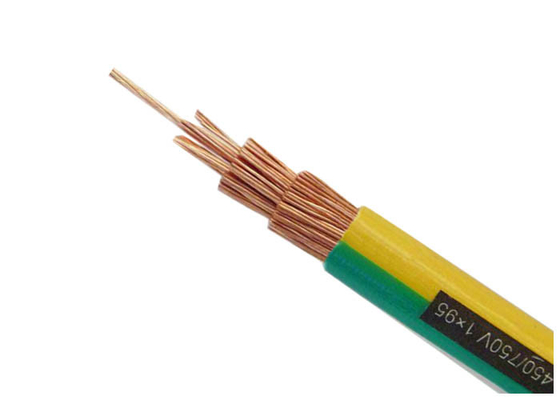

Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring

China Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring supplier
Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring supplier Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring supplier Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring supplier Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring supplier

Large Image :  Multi Core Copper Conductor Electrical Cable Wire / Electrical Cables For House Wiring

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: H05V-K

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Insulation Color: Yellow-Green,Brown,Red,Blue And So On Warranty: 2years
Tes Voltage:: 2000V/5min Main Market: Africa,Asia,Middle-East
Temp: 70 Degree Insulation Material: PVC
High Light:

electrical wire cable

,

insulated wire cable

H05V-K Multi-core Copper Conductor Electrical Cable Wire 0.5mm2,0.75mm2 to 240mm2 China Best Factory



Descriptions
Single-core non-sheathed cables with rigid conductor for general purposes
Code designation: 60227 IEC 01 (International), RV(China), H07V-R(VDE)

Constructions
① Conductor: Plain circular Flexible copper conductor, comform to IEC 60228 class 5

③ Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
② Insulation: PVC/C



Applications


In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

Technical data


Rated voltage: 450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request

Specifications



RV 300/500V



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
0.3 16/0.15 2.3 6.4
0.4 23/0.15 2.5 8.1
0.5 16/0.2 2.6 9.1
0.75 24/0.2 2.8 12.2
1.0 32/0.2 3.0 15.1



RV 450/750V



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
1.5 30/0.25 3.4 21.4
2.5 49/0.25 4.1 24.5



RV 450 / 750V



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
4 56/0.20 4.8 51.8
6 84/0.30 6.4 71.4
10 84/0.30 8.0 12.4

Packing and shipping



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
