PVC Insulated aerial XLPE Insulated Power Cable with 0.6/1 KV ABC AAC conductor

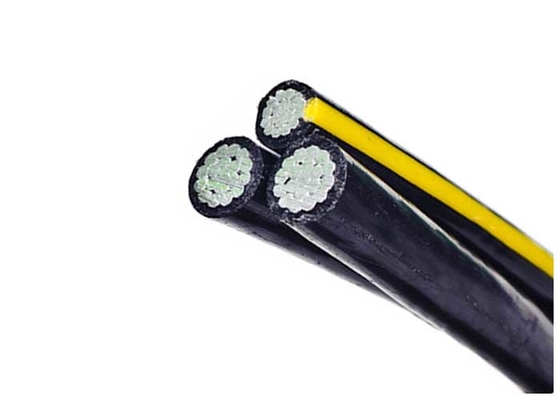

Large Image : PVC Insulated aerial XLPE Insulated Power Cable with 0.6/1 KV ABC AAC conductor

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Conductor::	Aluminium	Insulation:	PVC
Application:	Overhead Power Transmission Lines	Rated Voltage:	0.6/1 KV
Cores No.:	3-5	Code:	ABC-AAC
High Light:	xlpe insulated cable , xlpe electrical cable

Detailed Product Description

Conductor:	Aluminium	Insulation:	PVC
Application:	Overhead Power Transmission Lines	Rated Voltage:	0.6/1 KV
Cores No.:	4	Code:	ABC-AAC
Voltage:	0.6/1KV

Detailed Product Description

Conductor:	Aluminum Conductors Steel Reinforced	Insulation:	XLPE Or PVC, HDPE
Application:	Overhead Power Transmission Lines	Rated Voltage:	0.6/1 KV

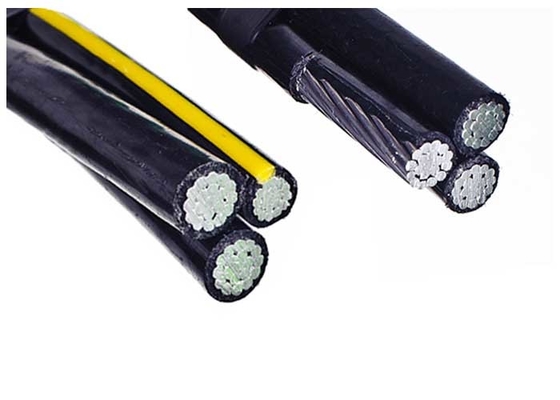

PVC Insulated Aerial Bundled Cable , Triplex Service Drop Cable

1. Applications

Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.

2. Construction

Conductor:

a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

Insulation:

The phase, neutral conductors shall be extruded with PVC as insulation.

3. Standards

TRIPLEX SERVICE DROP-ALUMINUM CONDUCTOR

ASTM B-231,B-232 and B-399, ICEA S -76-474

Code Name		Phase Conductors			Bare Natural			Weight		Ampacity
	Size & No. of	Insulation	Nominal Diamerer		Size & No. of	Rated Stength	XLPE	Aluminum	Total
	Wires	Thickness	Bare	OD
		mm	mm	mm	Wires	kg	kg/km	kg/km	kg/km	A
Cerapus	4/0-19	1.52	13.4	16.459	2/0-6/1	2404	192	787	1069	372
Nepatus	4/0-19	2.03	13.4	17.475	2/0-6/1	2404	246	787	1121	372
Razor	4/0-7	1.52	13.3	16.307	4/0-6/1	3788	191	897	1226	372
Zuzara	4/0-19	1.52	13.4	16.459	4/0-6/1	3788	192	897	1229	372
Alima	4/0-19	2.03	13.4	17.475	4/0-6/1	3788	246	897	1281	372
Callista	266.8-19	2.03	15.1	19.126	3/0-6/1	3003	280	994	1384	410
Dosinia	266.8-19	2.03	15.1	19.126	268.8-18/1	3121	280	1133	1472	410
Cowry	336.4-19	2.03	16.9	20.980	4/0-6/1	3788	320	1253	1713	506
Limpet	336.4-19	2.03	16.9	20.980	336.4-18/1	3937	320	1429	1823	506
