|Model Name:||300/500V Letrical Cable Wire||Conductor Type:||Flexble Copper, Class 5|
|Nos.of Cores:||1||Insulation Color:||Pantone Color|
|Warranty:||2 Years||Flame Retardant:||As Per Customer Request|
|Packing Style:||100 Meters Per Roll Or As Per Customer Request|
electrical wire cable,
insulated wire cable

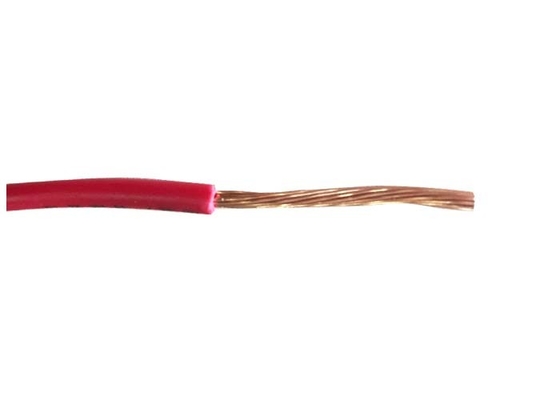

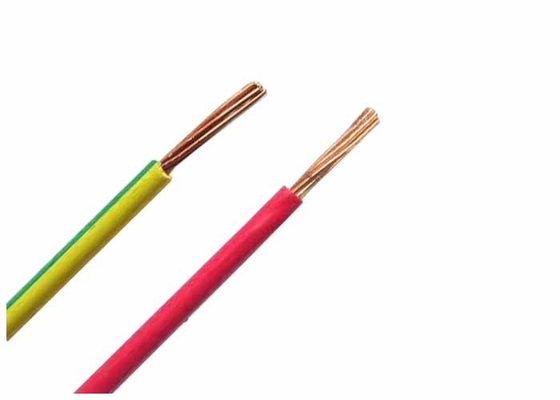

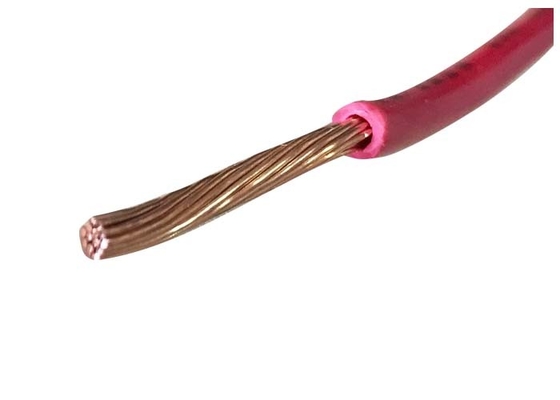

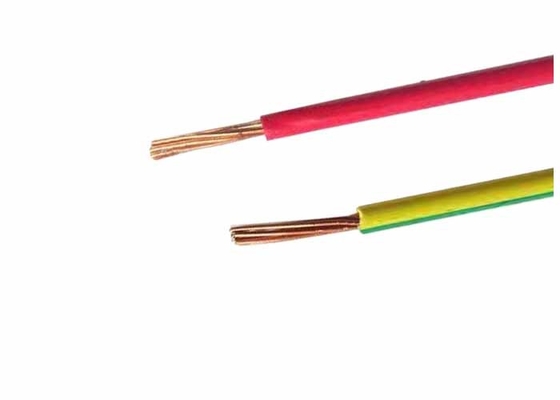

Single Core 300/500V Flexible Copper - Class 5 Housing Wire Top Cable Factory
Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
Code designation: 60227 IEC 08 (International), RV-90 300/500V(China)
① Conductor: Flexible copper conductor, comform to IEC 60228 class 5
② Insulation: PVC/E
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 90℃
Min. Bending Radius: 6 x cable O.D
CE, RoHS, CCC, KEMA and more others at request
|Cross-section area||Thickness of insulation||Av.overall diameter
|Max.R of conductor at 20oC||Min.Insulation resistance at 70oC||Approx.weight|
|Copper conductor||Tinned copper conductor|
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
