| Conductor: | Aluminium Conductor | Insulation: | XLPE Or PVC |
|---|---|---|---|
| Rated Voltage: | 0.6/1 KV | Structure: | 4 Phase |
| Application: | Overhead Power Transmission Lines | Sheath: | No |
| Per Drum Length: | 500 Meters Or As Per Request | ||
| High Light: | aerial electrical cable,aerial bunch cable |
||

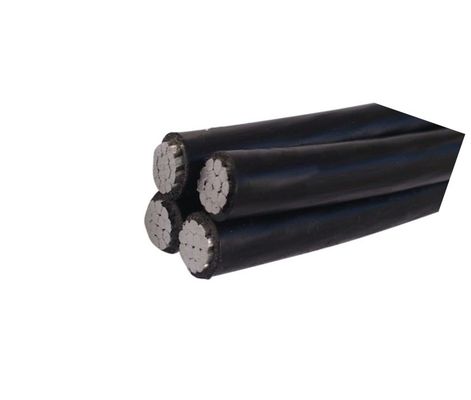

Certificated Aluminum Conductor XLPE Insulation Aerial Bundled Cable
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
2. Standards
QUADRUPLEX SERVICE DROP-ALUMINIUM CONDUCTOR
ASTM B-231,B-232 and B-399, ICEA S -79-474
Description
3 Phase conductors + 1 Messenger conductor ABC Cable
The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.
Construction
Conductor:
a) Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.
b) Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.
Insulation:
The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.
STANDARD NF C 33-209
NFA 2X
| Phases | Neutral/Messenger | ||||||||
| Distribution Lines | Pub. Lighting | ||||||||
| Cable Type | Number of | Number of | Avarage | Resistance | Conductance | Number of | Avarage | Rated | Resistance |
| core | wire | diameter | at 20℃ | at 30℃ | core | diameter | Strength | at 20℃ | |
| mm² | mm² | PCS | mm | ohm/km | A | mm² | mm | kN | ohm/km |
| 3x25+54.6 | 3x25 | 7 | 5.9 | 1.20 | 112 | - | 9.6 | 16.0 | 0.63 |
| 3x25+1x16+54.6 | 3x25 | 7 | 5.9 | 1.20 | 112 | 1x16 | 9.6 | 16.0 | 0.63 |
| 3x25+2x16+54.6 | 3x25 | 7 | 5.9 | 1.20 | 112 | 2x16 | 9.6 | 16.0 | 0.63 |
| 3x35+54.6 | 3x35 | 7 | 6.9 | 0.868 | 138 | - | 9.6 | 16.0 | 0.63 |
| 3x35+1x16+54.6 | 3x35 | 7 | 6.9 | 0.868 | 138 | 1x16 | 9.6 | 16.0 | 0.63 |
| 3x35+2x16+54.6 | 3x35 | 7 | 6.9 | 0.868 | 138 | 2x16 | 9.6 | 16.0 | 0.63 |
| 3x50+54.6 | 3x50 | 7 | 8.1 | 0.641 | 168 | - | 9.6 | 16.0 | 0.63 |
| 3x50+1x16+54.6 | 3x50 | 7 | 8.1 | 0.641 | 168 | 1x16 | 9.6 | 16.0 | 0.63 |
| 3x50+2x16+54.6 | 3x50 | 7 | 8.1 | 0.641 | 168 | 2x16 | 9.6 | 16.0 | 0.63 |
| 3x70+54.6 | 3x70 | 12 | 9.7 | 0.443 | 213 | - | 9.6 | 16.0 | 0.63 |
| 3x70+1x16+54.6 | 3x70 | 12 | 9.7 | 0.443 | 213 | 1x16 | 9.6 | 16.0 | 0.63 |
| 3x70+2x16+54.6 | 3x70 | 12 | 9.7 | 0.443 | 213 | 2x16 | 9.6 | 16.0 | 0.63 |
| 3x70+1x25+54.6 | 3x70 | 12 | 9.7 | 0.443 | 213 | 1x25 | 9.6 | 16.0 | 0.63 |
| 3x70+2x25+54.6 | 3x70 | 12 | 9.7 | 0.443 | 213 | 2x25 | 9.6 | 16.0 | 0.50 |
| 3x70+70 | 3x70 | 12 | 9.7 | 0.443 | 213 | - | 10.2 | 20.6 | 0.50 |
| 3x70+1x16+70 | 3x70 | 12 | 9.7 | 0.443 | 213 | 1x16 | 10.2 | 20.6 | 0.50 |
| 3x70+2x16+70 | 3x70 | 12 | 9.7 | 0.443 | 213 | 2x16 | 10.2 | 20.6 | 0.50 |
| 3x95+70 | 3x95 | 12 | 11.5 | 0.320 | 258 | - | 10.2 | 20.6 | 0.50 |
| 3x95+1x16+70 | 3x95 | 12 | 11.5 | 0.320 | 258 | 1x16 | 10.2 | 20.6 | 0.50 |
| 3x95+2x16+70 | 3x95 | 12 | 11.5 | 0.320 | 258 | 2x16 | 10.2 | 20.6 | 0.50 |
| 3x120+70 | 3x120 | 12 | 12.8 | 0.253 | 300 | - | 10.2 | 20.6 | 0.50 |
| 3x120+1x16+70 | 3x120 | 19 | 12.8 | 0.253 | 300 | 1x16 | 10.2 | 20.6 | 0.50 |
| 3x120+2x16+70 | 3x120 | 19 | 12.8 | 0.253 | 300 | 2x16 | 10.2 | 20.6 | 0.50 |
| 3x150+70 | 3x150 | 19 | 14.5 | 0.206 | 344 | - | 10.2 | 20.6 | 0.50 |
| 3x150+1x16+70 | 3x150 | 19 | 14.5 | 0.206 | 344 | 1x16 | 10.2 | 20.6 | 0.50 |
| 3x150+2x16+70 | 3x150 | 19 | 14.5 | 0.206 | 344 | 2x16 | 10.2 | 20.6 | 0.50 |
| 3x120+95 | 3x120 | 19 | 12.8 | 0.253 | 300 | - | 12.9 | 27.9 | 0.343 |
| 3x120+1x16+95 | 3x120 | 19 | 12.8 | 0.253 | 300 | 1x16 | 12.9 | 27.9 | 0.343 |
| 3x120+2x16+95 | 3x120 | 19 | 12.8 | 0.253 | 300 | 2x16 | 12.9 | 27.9 | 0.343 |
| 3x150+95 | 3x150 | 19 | 14.5 | 0.206 | 344 | - | 12.9 | 27.9 | 0.343 |
| 3x150+1x16+95 | 3x150 | 19 | 14.5 | 0.206 | 344 | 1x16 | 12.9 | 27.9 | 0.343 |
| 3x150+2x16+95 | 3x150 | 19 | 14.5 | 0.206 | 344 | 2x16 | 12.9 | 27.9 | 0.343 |
Schedule of technical particulars
| Phase conductor | |||||||||||
| Nominal cross-sectional area | mm² | 16 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Number of cores | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Minimum number of wires | 6 | 6 | 6 | 6 | 6 | 12 | 15 | 15 | 30 | 30 | |
| Nominal insulation thickness | mm | 1 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2.0 |
| Diameter of insulated core | mm | 6.8 | 6.8 | 8.5 | 9.5 | 11.2 | 13.0 | 15.1 | 16.6 | 18.4 | 20.6 |
| Max. DC resistance at 20℃ | ohm/km | 1.91 | 1.91 | 1.20 | 0.868 | 0.641 | 0.443 | 0.320 | 0.253 | 0.206 | 0.164 |
| Current rating at still wind, ambient | A | 61 | 61 | 84 | 104 | 129 | 167 | 209 | 246 | 283 | 332 |
| temperature=30℃ | |||||||||||
| Conductor temperature=75℃ | |||||||||||
| Messenger conductor | |||||||||||
| Nominal cross-sectional area | mm² | 25 | 25 | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
| Minimum number of wires | 6 | 6 | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 | |
| Nominal insulation thickness | mm | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| Diameter of insulated core | mm | 8.5 | 8.5 | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
| Max. DC resistance at 20℃ | ohm/km | 1.312 | 1.312 | 1.312 | 1.312 | 0.943 | 0.693 | 0.469 | 0.469 | 0.349 | 0.273 |
| Calculated breaking load | kN | 6.4 | 6.4 | 6.4 | 6.4 | 8.9 | 12.1 | 18.0 | 18.0 | 24.2 | 30.8 |
| Completed cable | |||||||||||
| Approx. overall diameter | mm | 15.3 | 19.0 | 23.2 | 25.6 | 30.0 | 34.9 | 40.6 | 44.1 | 49.2 | 54.9 |
| Approx. weight of cable | kg/km | 160 | 290 | 400 | 500 | 680 | 920 | 1270 | 1510 | 1870 | 2340 |
| Packing length | m/drum | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
