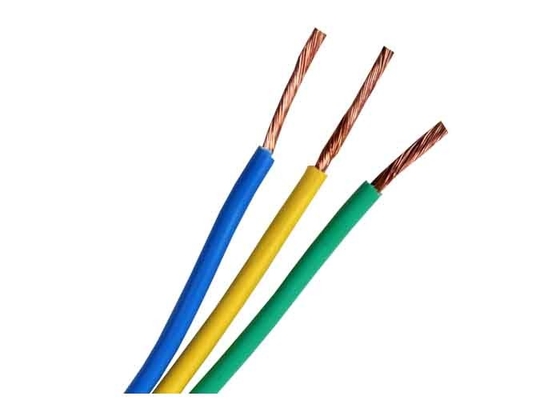

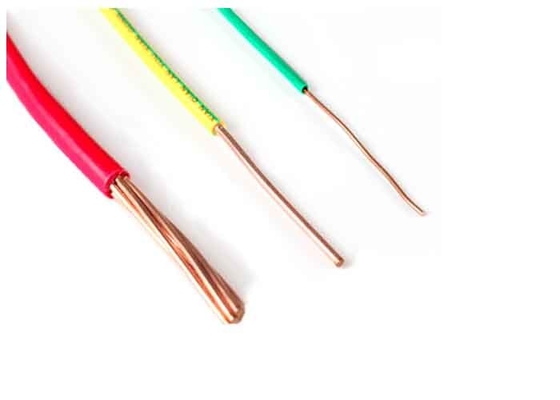

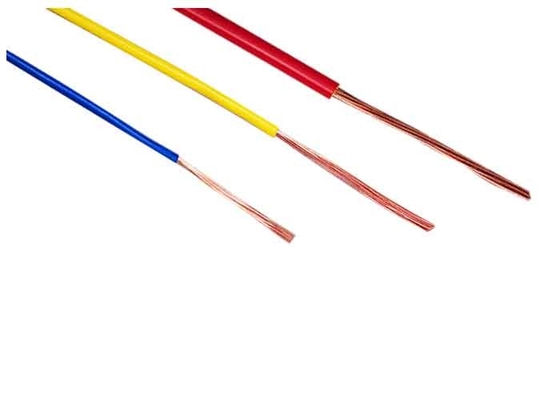

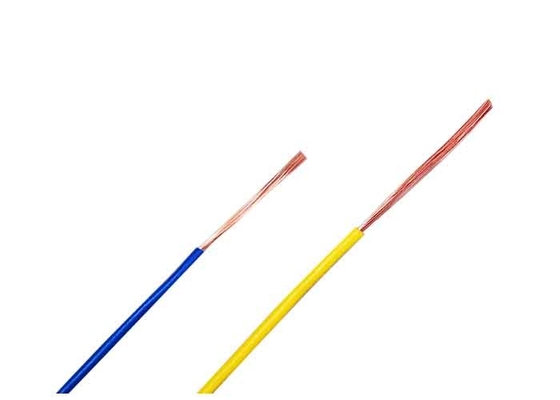

Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor

China Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor supplier
Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor supplier Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor supplier Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor supplier Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor supplier

Large Image :  Standard IEC 60227 Electrical Cable Wire With Flexible Copper Conductor

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: KEMA/CE/TUV/ISO/CNAS
Model Number: RV-90℃

Payment & Shipping Terms:

Minimum Order Quantity: 2000m
Price: USD 0.1-90/m
Packaging Details: 100M/Roll Or 500M/ Drum
Delivery Time: 7days
Supply Ability: 63520KM/Week
Contact Now
Detailed Product Description
Conductor: Flexible Copper Conductor,comform To IEC 60228 Class5 Insulation: PVC
Rated Voltage: 300/500v Working Temperature: Not More Than 90℃
Min Bending: 6xO.D

Single-core non-sheathed cables with flexible conductor for internal wiring 300/500v



Descriptions

Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃

Code designation:60227 IEC o8 (International),RV-90 300/500v



Constructions

1. Conductor: Flexible copper conductor, comform to IEC 60228 class 5

2. Insulation:PVC



Applications

Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.



Standards

International:IEC 60227

China:GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical date

Rate voltage:300/500v

Max.Conductor Temp. in normal use: 90℃

Min. Bending Radius: 6 x cable O.D



Certificates

CE,RoHS,CCC,KEMS and more others at request



Specifications

Nom.Cross-section Area Thickness of insulation Mean.O.D. Max.R of conductor at 20oC Min.Insulation resistance at 90℃ Approx.weight
Lower Limit Upper Limit
mm2 mm mm mm ohm/km M ohm˙km kg/km
0.5 0.6 2.1 2.5 39.0 0.013 9.9
0.75 0.6 2.2 2.7 26.0 0.011 13.0
1 0.6 2.4 2.8 19.5 0.010 15.5
1.5 0.7 2.8 3.4 13.3 0.009 21.0
2.5 0.8 3.4 4.1 7.98 0.009 32.5
