Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2

China Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2 supplier
Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2 supplier Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2 supplier Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2 supplier Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2 supplier

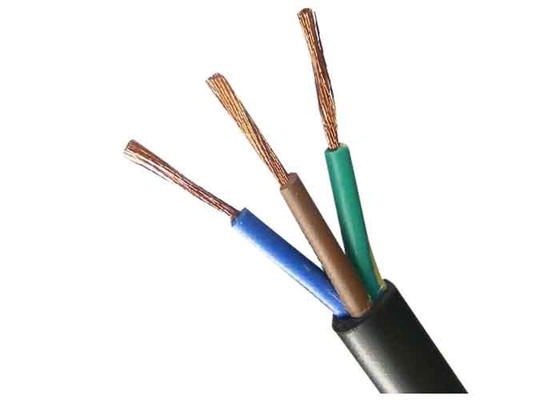

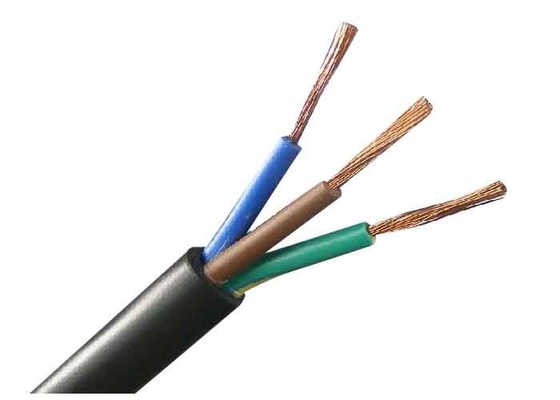

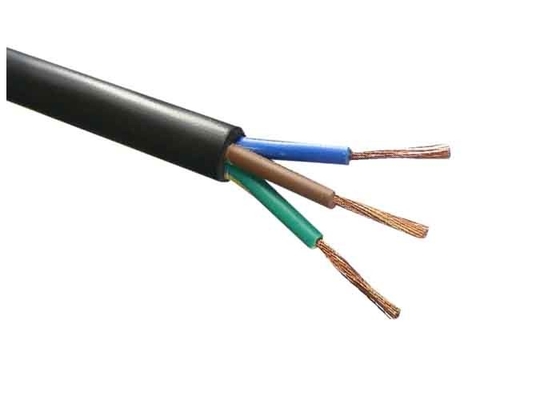

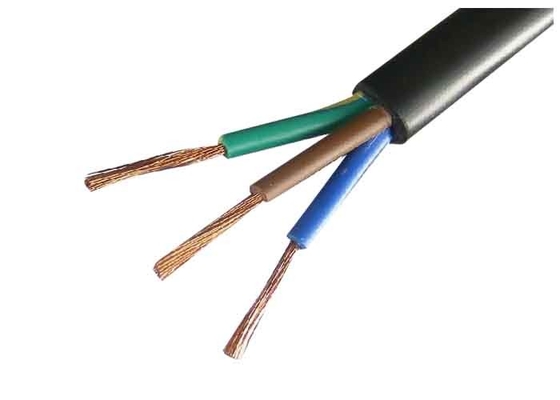

Large Image :  Triple Cores Flexible PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: KEMA/CE/ISO/TUV/UL
Model Number: RVV

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: USD 0.11-2.89/M
Packaging Details: 100m/roll
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 82397KM/day
Contact Now
Detailed Product Description
Application: Fixed Wiring Which Requires Flexibility Core: Triple
Insulation: PVC Conductor: Stranded Copper
Sample: Free Color: Yellow/Green,Black And So On.
Origin: China

Triple Cores Flexible Cores PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2 Made in China



Specifications
H05V-K 300/500V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
0.3 16/0.15 2.3 6.4
0.4 23/0.15 2.5 8.1
0.5 16/0.2 2.6 9.1
0.75 24/0.2 2.8 12.2
1.0 32/0.2 3.0 15.1


H07V-K 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
1.5 30/0.25 3.4 21.4
2.5 49/0.25 4.1 24.5


H07V-K 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
4 56/0.20 4.8 51.8
6 84/0.30 6.4 71.4
10 84/0.30 8.0 12.4



1) Conductor: Copper; Solid, Stranded & Flexible; 1~5 Cores


2) Insulation: Polyvinyl Chloride (PVC), Flame-Retardant or Halogen Free Polyolefin, Rubber, XLPE, etc.

3) Sheath: Non-Sheathed or PVC, PE, etc.

4) Features: Solid, Flexible, Round, Flat, Flame-Retardant, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature Resistant, etc.

5) Rated Voltage: 450/750V or 300/500V

6) Work Temperature: 70°C / 90°C / 105°C / 120°C / 150°C / 200°C / 250°C

7) Colors: Red, Blue, Brown, White, Black, Yellow, Two Colors, etc.


These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc.and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.

After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
