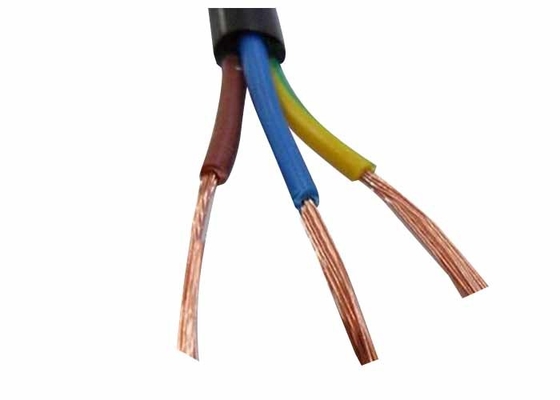

H07vv-K Pvc Insulated Multi - Core Cable With Copper Conductor

China H07vv-K Pvc Insulated Multi - Core Cable With Copper Conductor supplier
H07vv-K Pvc Insulated Multi - Core Cable With Copper Conductor supplier H07vv-K Pvc Insulated Multi - Core Cable With Copper Conductor supplier H07vv-K Pvc Insulated Multi - Core Cable With Copper Conductor supplier

Large Image :  H07vv-K Pvc Insulated Multi - Core Cable With Copper Conductor

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: CE/ROHS/KEMA/CCC
Model Number: RVV

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: USD 0.33-15.99/M
Packaging Details: 100m/roll
Delivery Time: 8 day
Supply Ability: 80km/day
Contact Now
Detailed Product Description
Size: 0.75-2.5mm Core: 2-5 Core
Insulation: Pvc Sheath: Pvc
Certificates: CE,ROHS,CCC,KEMA And More Other At Request

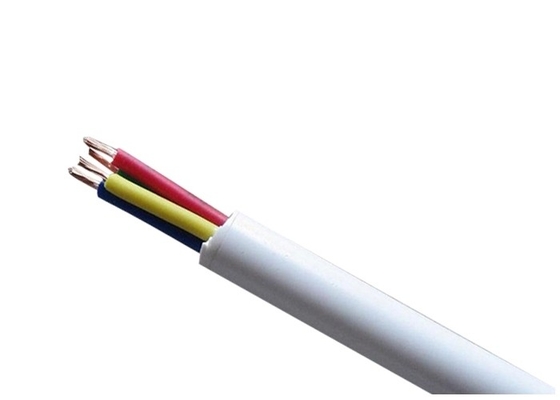

H07vv-k pvc insulated multi-core cable with copper conductor



RVV wire full name of copper core PVC insulated PVC sheathed flexible wire, also known as light PVC sheathed cord, commonly known as soft sheathed wire, is a sheath line. Mainly used in electrical appliances, instruments and electronic equipment and automation equipment with power lines, control lines and signal transmission lines, specifically for anti-theft alarm systems, building intercom systems.



Descriptions

Ordinary PVC Sheathed cord
Code designation : 60227 IEC 53 ( International ),RVv 300/500v(china),H07vv-k(VDE).

Constructions

1. Conductor : flexible copper conductor , comform to IEC 60228 class 5
2. Insulation : PVC / D
3.sheath:PVC type ST5


Standards

International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request

Technical data

Rated voltage : 300 / 500 V

Max . Conductor Temp . in normal use : 70℃

Min Bending Radius : 6 x cable O.D

Certificates
CE,ROHS,CCC,KEMA and more others at request



Specifications

Nom.Cross-section Area Thickness of insulation sheath thickness Mean.O.D. Max.R of conductor at 70℃ Min.Insulation resistance at 20℃
Lower Limit Upper Limit
mm2 mm mm mm mm m ohm/km ohm˙km
2x0.75 0.6 0.8 5.7 7.2 0.011 26.0
2x1.0 0.6 0.8 5.9 7.5 0.010 19.5
2x1.5 0.7 0.8 6.8 8.6 0.010 13.3
2x2.5 0.8 1.0 8.4 10.6 0.009 7.98
3x0.75 0.6 0.8 6.0 7.6 0.011 26.0
4x0.75 0.6 0.8 6.6 8.3 0.011 26.0
