Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station

China Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station supplier
Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station supplier Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station supplier Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station supplier Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station supplier

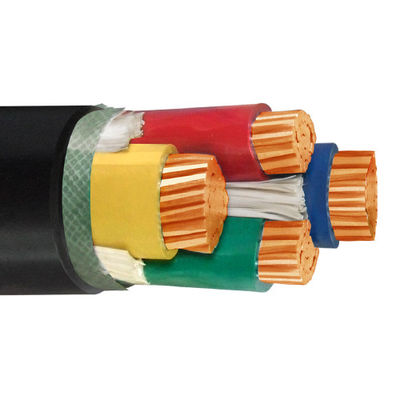

Large Image :  Cu / XLPE Insulation LSOH Sheath MV Power Cable Power Station

Product Details:

Place of Origin: Shanghai, China
Brand Name: XINXIN
Certification: KEMA, CE, RoHS, CCC
Model Number: WDZ-YJY WDZA-YJY23

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $1.15/Meters >=500 Meters
Packaging Details: Wooden Drums<br>Cu/XLPE Insulation LSOH sheath Power Cable
Detailed Product Description
Insulation Material: Xlpe Type: Medium Voltage
Application: Power Station Conductor Material: Copper
Jacket: LSOH Sheath Standard: IEC 60502
Warranty: 2 Years Since Delivery Port: Shanghai Port
High Light:

LSOH Sheath xlpe power cable

,

Power Station xlpe power cable

,

IEC 60502 xlpe insulated pvc sheathed cable

Cu/XLPE Insulation LSOH  sheath Power Cable



Constructions

Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2



Insulation: XLPE(cross-linked polyethylene) rated at 90°C



Binder: Non-woven

Overall Sheath: PVC type ST2 to IEC 60502, black

Steel Wire Armoring

Overall Sheath: PVC type ST2 to IEC 60502, black. LSOH  sheath



Applications

Suitable for use in power distribution lines with rated voltage 1.8/3kV. For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.



Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 26/35kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position



Certificates

CE, RoHS, CCC, KEMA and more others at request
