| Color Of Insulation: | Two Core:Red,Blue | Function: | Lighting For Building And Construction |
|---|---|---|---|
| Size: | 2*1.0mm2,2*1.5mm2,2x2.5mm2 ,2x4mm2 | Test Voltage: | 2000V/5mins |
| Conductor Type: | Flexible Copper Conductor (class5) | Standard: | IEC 60227 |
| Main Market: | Asia,Midldle-East,African, | Material: | PVC |
| High Light: | electrical wire cable,insulated electrical wire |
||

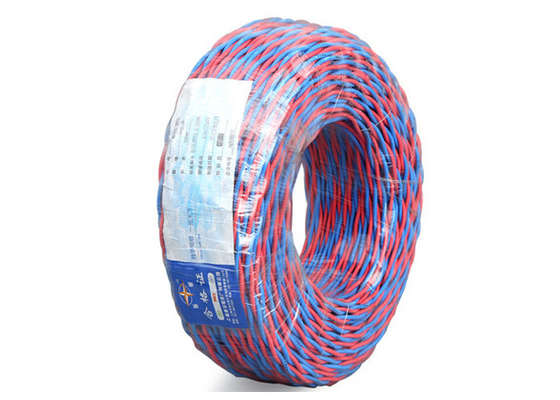

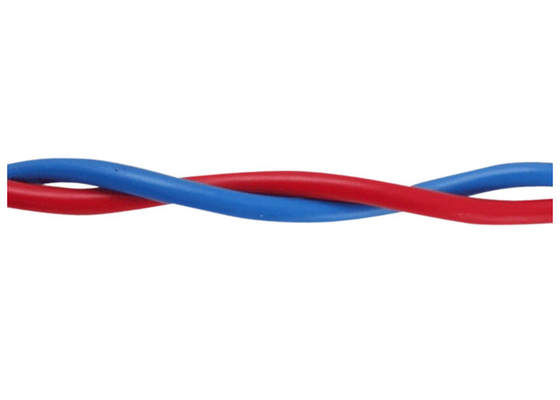

100% Copper Conductor Twin Flat Electrical Cable 2000V / 5 mins Test Voltage
Descriptions
Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
Code designation: 60227 IEC 08 (International), RVS-90 300/500V(China)

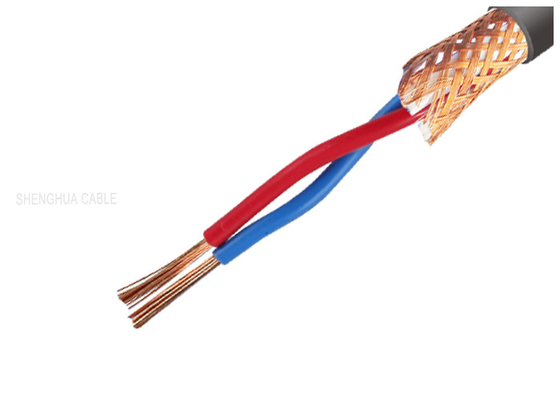

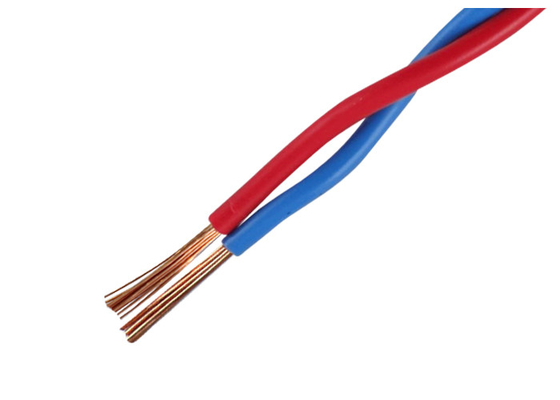

Constructions
① Conductor: Flexible copper conductor, comform to IEC 60228 class 5
② Insulation: PVC/E
Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
RVS 300 / 300V
| Nominal area of conductor | No./Dia. Of Conductor | Single Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.5 | 2X16/0.2 | 2.6 | 16 |
| 2X0.75 | 2X24/0.2 | 2.8 | 22 |
| 2X1.0 | 2x32/0.2 | 3.0 | 26 |
| 2X1.5 | 2x30/0.25 | 3.5 | 38 |
| 2x2.5 | 2x50/0.25 | 4.2 | 60 |
| 2x4 | 2x56/0.3 | 4.8 | 92 |
| 2x6 | 2x84/0.3 | 6.3 | 134 |
| 2x10 | 2x80/0.4 | 7.6 | 242 |
