Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly

China Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly supplier
Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly supplier Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly supplier Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly supplier

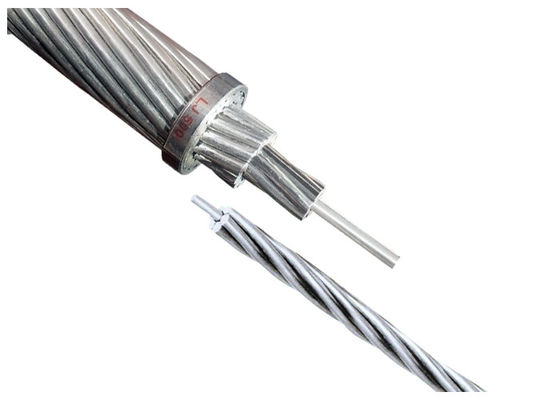

Large Image :  Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ASTM B231
Model Number: AAC Bluebonnet

Payment & Shipping Terms:

Minimum Order Quantity: 0.5km
Price: 0.20-30.99USD/m
Packaging Details: Wooden Drum or Steel Drum
Delivery Time: 10Days or More
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000km per Month
Detailed Product Description
Conductor: Aluminium(AAC) Code Name: AAC Bluebonnet
Application: Overhead Power System Cores Nos: 127 Pcs
Overall Diameter: 54.8mm Area: 3500 Sq Mm
Corporation: Shenghua Group Brand: Sh Cable
Highlight:

transmission conductor

,

bare overhead conductors

Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly



ALL ALUMINIUM STRANDED CONDUCTOR



AAC

                  ASTM B231
    Total Area   Stranding and Wire Overall Diameter Linear Mass Nominal Breaking Max. D.C.
Code Name         Diameter     Load Resistance at 20℃
  AWG or MCM   mm2 mm mm kg/km daN Ω/km
Peachbell 6     13.29 7/1.554 4.67 37 249 2.1692
Rose 4     21.16 7/1.961 5.89 58 396 1.3624
Iris 2     33.61 7/2.474 7.42 93 597 0.8577
Pansy 1     42.39 7/2.776 8.33 117 732 0.6801
Poppy 1/0     53.48 7/3.119 9.36 147 873 0.5390
Aster 2/0     67.42 7/3.503 10.51 186 1100 0.4276
Phlox 3/0     85.03 7/3.932 11.80 234 1347 0.3390
Oxlip 4/0     107.23 7/4.417 13.26 296 1698 0.2688
Valerian 250     126.71 19/2.913 14.57 349 2062 0.2275
Sneezewort 250     126.71 7/4.80 14.4 349 2007 0.2275
Laurel 266.8     135.16 19/3.01 15.05 373 2200 0.2133
Daisy 266.8     135.16 7/4.96 14.9 373 2141 0.2133
Peony 300     152.0 19/3.193 15.97 419 2403 0.1896
Tulip 336.4     170.45 19/3.381 16.91 470 2695 0.1691
Daffodil 350     177.35 19/3.447 17.24 489 2804 0.1625
Canna 397.5     201.42 19/3.673 18.36 555 3184 0.1431
Goldentuft 450     228.0 19/3.909 19.55 629 3499 0.1264
Syringa 477     241.68 37/2.882 20.19 666 3849 0.1193
Cosmos 477     241.68 19/4.023 20.12 666 3708 0.1193
Hyacinth 500     253.35 37/2.951 20.65 698 4035 0.1138
Zinnia 500     253.35 19/4.21 20.6 698 3888 0.1138
Dahlia 556.5     282.0 19/4.346 21.73 777 4327 0.1022
Mistletoe 556.5     282.0 37/3.114 21.79 777 4362 0.1022
Meadowsweet 600     304.0 37/3.233 22.63 838 4703 0.0948
Orchid 636     322.25 37/3.33 23.31 888 4985 0.0894
Heuchera 650     329.35 37/3.366 23.56 908 5095 0.0875
Flag 700     354.71 61/2.72 24.48 978 5146 0.0813
Verbena 700     354.71 37/3.493 24.45 978 5487 0.0813
Nasturtium 715.5     362.58 61/2.75 24.76 1000 5874 0.0795
Violet 715.5     362.85 37/3.533 24.74 1000 5609 0.0795
Cattail 750     380.0 61/2.817 25.35 1048 5985 0.0795
Petunia 750     380.0 37/3.617 25.32 1048 5875 0.0795
Lilac 795     402.84 61/2.90 26.11 1111 6345 0.0715
Arbutus 795     402.84 37/3.724 26.06 1111 6232 0.0715
Snapdragon 900     456.06 61/3.086 27.78 1257 6978 0.0632
Cockscomb 900     456.06 37/3.962 27.73 1257 6848 0.0632
Goldenrod 954     483.42 61/3.177 28.6 1333 7896 0.0596
Magnilia 954     483.42 37/4.079 28.55 1333 7258 0.0596
Camellia 1000     506.71 61/3.251 29.36 1397 7753 0.0596
Hawkweed 1000     506.71 37/4.176 29.23 1397 7608 0.0596
Larkspur 1033.5     523.68 61/3.307 29.76 1444 8012 0.0550
Bluebell 1033.5     523.68 37/4.244 29.72 1444 7863 0.0550
Marigold 1113     563.93 61/3.432 30.89 1555 8628 0.0511
Hawthorn 1192.5     604.26 61/3.551 31.05 1666 9245 0.0477
Narcissus 1272     644.51 61/3.668 33.02 1777 9861 0.0477
Columbine 1351.5     684.84 61/3.78 34.01 1888 10478 0.0421
Carnation 1431     725.10 61/3.89 35.03 1999 10768 0.0398
Gladiolus 1510.5     765.35 61/4.00 35.09 2110 11365 0.0376





Total Area   Stranding and Wire Overall Diameter Linear Mass Nominal Breaking Max. D.C.
Code Name       Diameter     Load Resistance at 20℃
  AWG or MCM   mm2 mm mm kg/km daN Ω/km
Coreopsis 1590   805.68 61/4.099 36.51 2221 11964 0.0358
Jessamine 1750   886.71 61/4.302 38.72 2445 13168 0.0325
Cowslip 2000   1013.42 91/3.76 41.40 2791 15300 0.0285
Lupine 2500   1266.67 91/4.21 46.30 3524 18700 0.0230
Trillium 3000   1520.13 127/3.90 50.75 4232 22500 0.0192
Bluebonnet 3500   1773.50 127/4.21 54.80 4985 26200 0.0166

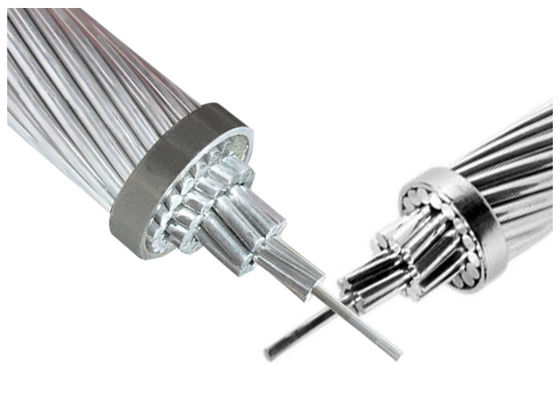

CONSTRUCTION OF OVERHEAD CONDUCTORS



Concentric-Lay-Stranded Bare Transmission Conductor AAC Bluebonnet Eco Friendly 0



ALL ALUMINIUM STRANDED BARE CONDUCTORS ASTM B231 AAC Peachbell
