Steel Wire Armoured Power Cable

China Steel Wire Armoured Power Cable supplier
Steel Wire Armoured Power Cable supplier Steel Wire Armoured Power Cable supplier Steel Wire Armoured Power Cable supplier Steel Wire Armoured Power Cable supplier

Large Image :  Steel Wire Armoured Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV32 YJV22 MV/HV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Product Name: Armoured Power Cable Insulation: XLPE
Armour: Steel Wire Conductor: Copper
Sheath: PVC, PE, LSOH Cores: Three Cores
Standard: IEC, BS, IS, VDE Warranty: 2 Years
High Light:

armoured power cable

,

armored electrical cable

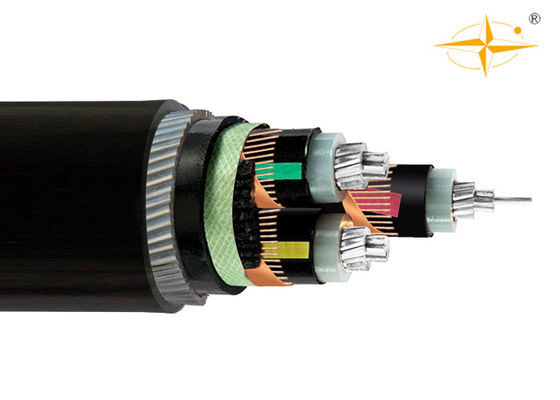

CU/XLPE/CTS/SWA/PVC Steel Wire Armoured Power Cable HV Copper Cable 3x400mm2





YJ: XLPE insulation

V: PVC sheath

32: Steel wire armoring—3 cores

22: Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant





Application





Used in transformer stations, switching blocks, in electric power plants and industrial plants.

Medium voltage power cable for static application in ground, within and outside facilities, outdoor,

in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress

and tensile strain.







Construction


Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Conductor Screen Semi-conductor (MV only)
Insulation XLPE(Cross-linked polyethylene)
Insulation Screen Semi-conductor (MV only)
Metalic Shield Copper Tape Screen or Copper wire & copper tape Shield (MV must, LV optional)
Filler Fillers strip
Wrapping Tape Non woven wrapping tape or lsoh wrapping tape
Inner Covering Extruded PVC, or LSOH (MV only)
Armour Steel Tape Armour, Steel Wire or Aluminium Wire Armor optional
Overall Sheath PVC, FR-PVC, PE or LSOH







MV(6 to 35kv) Power Cable Details





MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable





This product is applicable to the power transmission and distribution line with AC rated voltage

(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and

tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the

protection layer structure.







Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request





Technical data

- Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622
- Temperature range max. to +90 °C
- Temperature during installation from 0 °C to +70 °C
- Short circuit temperature +250 °C (up to 5 seconds)
- Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS)
- Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV = max. 36 kV
- Test voltage a.c. 3,6/6 kV = 11 kV up to 5 min. 6/10 kV = 21 kV up to 5 min. 18/30 kV = 63 kV

up to 5 min.
- Minimum bending radius approx. 15 cable diameter



Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2







*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length








Certificate



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
