Product Details:
Payment & Shipping Terms:
|
| Application: | Fixed Wiring Which Requires Flexibility | Standard: | IEC60227 |
|---|---|---|---|
| Insulation: | PVC | Conductor: | Stranded Copper |
| Sample: | Free | Color: | Yellow/Green,Black And So On. |
| High Light: | electrical wire cable,insulated wire cable |
||

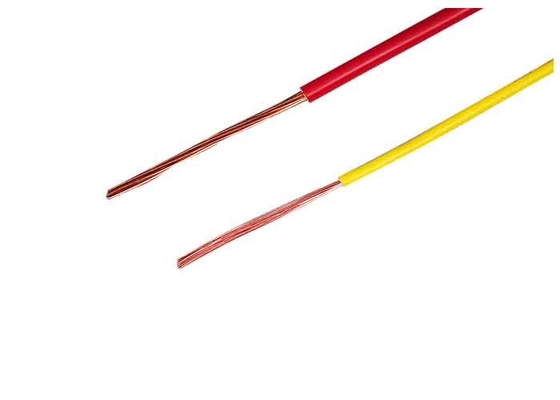

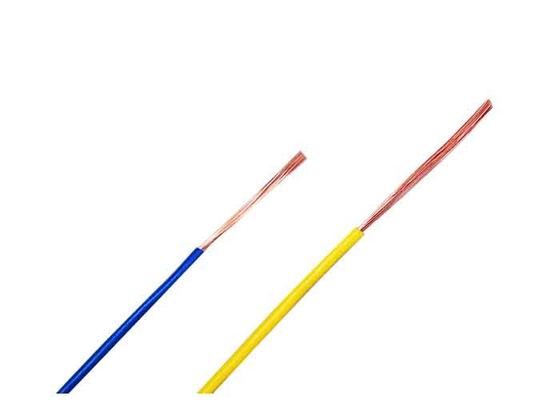

Flexible Copper Single Core PVC Insulated Electrical Cable Wire RV 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 95mm2 120mm2
Descriptions
Single-core non-sheathed cables with rigid conductor for general purposes
Code designation: 60227 IEC 01 (International), RV (China)
Construction
- Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation.
Description
Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.
Specifications
H05V-K 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 0.3 | 16/0.15 | 2.3 | 6.4 |
| 0.4 | 23/0.15 | 2.5 | 8.1 |
| 0.5 | 16/0.2 | 2.6 | 9.1 |
| 0.75 | 24/0.2 | 2.8 | 12.2 |
| 1.0 | 32/0.2 | 3.0 | 15.1 |
H07V-K 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 1.5 | 30/0.25 | 3.4 | 21.4 |
| 2.5 | 49/0.25 | 4.1 | 24.5 |
H07V-K 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 4 | 56/0.20 | 4.8 | 51.8 |
| 6 | 84/0.30 | 6.4 | 71.4 |
| 10 | 84/0.30 | 8.0 | 12.4 |
Applications
Building wires fixed installation and laid in pipes for general applications
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
