Product Details:
Payment & Shipping Terms:
|
| Cable Type: | Single Core House Wire | Insulation: | PVC |
|---|---|---|---|
| Insulation Colour: | Any Colour | Warranty: | 2 Years |
| Voltage: | 450/750V | Conductor Material: | Copper. |
| High Light: | electrical wire cable,insulated wire cable |
||

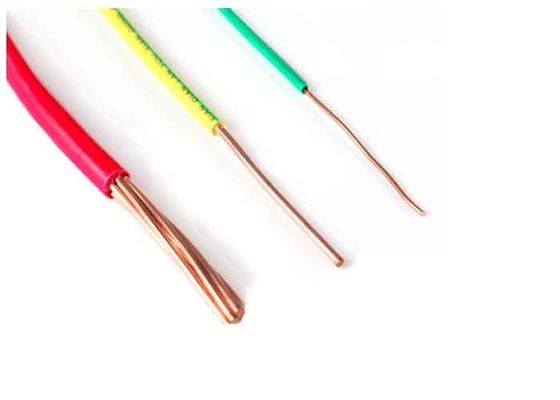

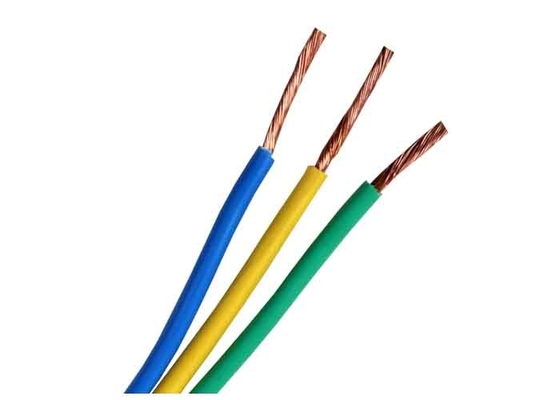

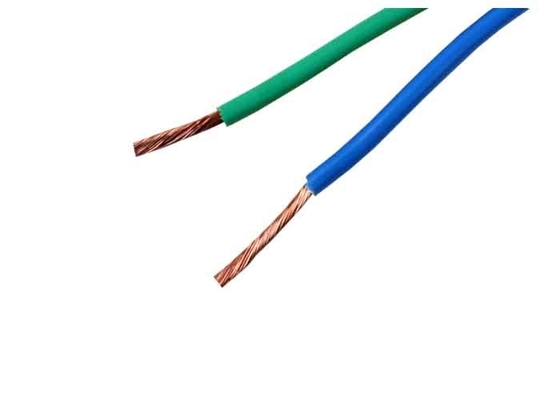

House Electrical Wire Pure Copper Conductor PVC 1.5 sq mm - 400 sq mm
| Code Designation by IEC | Code by GB | Voltage | Products Name | Constructions | Maximum conductor temperature |
| 60227 IEC 01 | BV | 450/750 V | Single-core non-sheathed cable with rigid conductor for general purposes | Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation | 70 °C. |
| 60227 IEC 02 | RV | 450/750 V | Single-core non-sheathed cable with flexible conductor for general purposes | Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation | 70 °C. |
| 60227 IEC 05 | BV | 300/500 V | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C | Cl.1 Solid Copper Conductor, PVC/C Insulation | 70 °C. |
Descriptions
Single-core non-sheathed cables with rigid/stranded/flexible conductor for general purposes
Code designation: 60227 IEC 01 (International), BV , RV(China), H05V-U, H07V-K (VDE)
Constructions
Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
Conductor: Plain circular flexible copper conductor, comform to IEC 60228 class 5
Insulation: PVC/C
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
H05V-U 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 0.5 | 1/0.80 | 2.3 | 8.5 | 36.0 |
| 0.75(A) | 1/0.97 | 2.5 | 11.1 | 24.5 |
| 0.75(B) | 7/0.37 | 2.6 | 12.0 | 24.5 |
| 1.0(A) | 1/1.13 | 2.7 | 13.9 | 18.1 |
| 1.0(B) | 7/0.43 | 2.8 | 15.0 | 18.1 |
H05V-U 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
| mm2 | mm | mm2 | kg/km | Ω /km | ||
| Copper | Aluminium | Aluminium | Copper | |||
| 1.5(A) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
| 1.5(B) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
| 2.5(B) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
| 4(A) | 1/2.55 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.6 | 50.3 | |||
H05V-U 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
| mm2 | mm | mm2 | kg/km | Ω /km | ||
| Copper | Aluminium | Aluminium | Copper | |||
| 6(A) | 7/0.85 | 5.0 | 50.3 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.2 | 71.2 | 29 | 4.91 | 3.08 |
| 10 | 7/1.35 | 6.4 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 7.8 | 179 | 78 | 1.91 | 1.15 |
| 25 | 27/2.04 | 9.7 | 281 | 118 | 1.20 | 0.727 |
| 35 | 27/2.52 | 10.9 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 12.8 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 14.4 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.1 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 18.8 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 20.9 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.3 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.6 | 2350 | 857 | 0.125 | 0.0754 |
| 300 | 61/2.52 | 29.6 | 2930 | 1070 | 0.100 | 0.0601 |
| 400 | 61/2.85 | 33.2 | 3870 | 1390 | 0.0778 | 0.0470 |
