Insulation: | Rubber | Jacket: | Rubber |
---|---|---|---|
Type: | Low Voltage | Cable Size: | 0.3-400mm2 |
Conductor Material: | Copper | Application: | Outdoor |
High Light: | rubber insulated cable,rubber electrical cable |
1 Application
This product is suitable for rated ac voltage 450/750v or below domestic appliaces,power-operated tools and various portable electric equipments.
2 Operation character
1) 60245IEC53(YZ),60245IEC57(YZW), model rated voltage Uo/U is 300/500V, 60245IEC66(YCW),YC rated voltage Uo/U is 450/750V.
2)Long time allow working temperature of wire core is not more than 65℃.
3)W model cable has the property of durability and suitable for cutdoor touching of greasy dirt.
4)ZR model cable has the property of fire-resistance.
3 Model name and usage
Model No. | Product Name | Applications |

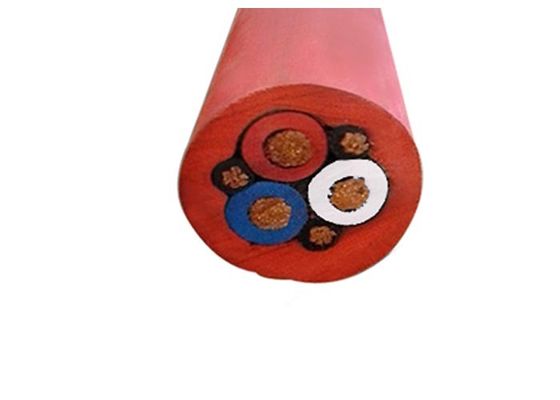

YQ,YQW | Light model rubber sheath flexible cable | Used for light portable electric equipment and tools |
YZ, YZW | Middle model rubber sheath flexible cable | Used for various portable electric equipment and tools |
YC. YCW | Heavy model rubber sheath flexible cable | Used for various portable electric equipment which can bear large mechanical force effect |
Certificates
CE, RoHS, CCC, KEMA and more others at request
4 Size, weight and technological date
300/300V YQ/YQW light model
Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
min | max | ||||||
2x0.3 | 16/0.15 | 4.3 | 5.8 | 69.2 | 71.2 | 30 | 31.5 |
2x0.5 | 28/0.15 | 4.8 | 6.4 | 39 | 40.1 | 43 | 45.5 |
3x0.3 | 16/0.15 | 4.6 | 6.1 | 69.2 | 71.2 | 36 | 38.5 |
3x0.5 | 28/0.15 | 5.1 | 6.7 | 39 | 40.1 | 74 | 77 |
300/500V YZ/YZW medium model
Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
min | max | Copper | Tinned-Copper | YZ | YZW | ||
2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
