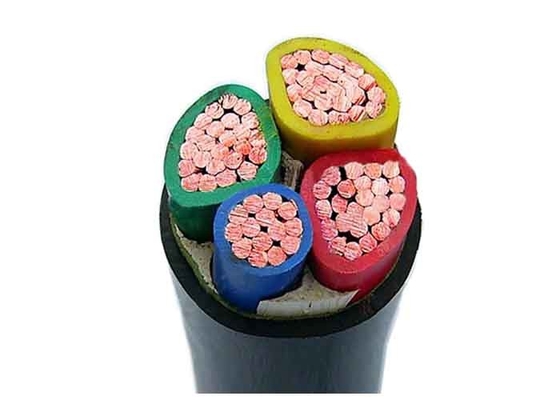

Large Image :  Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: SHANCABLE
Certification: IEC,KEMA,ISO,CE,GOST
Model Number: CU/XLPE/PVC

Payment & Shipping Terms:

Minimum Order Quantity: 300 meter
Price: US$1.67~266.85per meter
Packaging Details: Steel Wooden Drum
Delivery Time: 7 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram, Standby LC
Supply Ability: 30000Kilometer per Month
Contact Now
Detailed Product Description
Cores: Four Size: 1.5sqmm~1000sqmm
Conductor Type: Compated Copper Wires Insulation Color: Red,yellow,blue,green
Rated Voltage: 600/1000V Sheath Color: Black Or Customization
Packing: Steel Wooden Drum

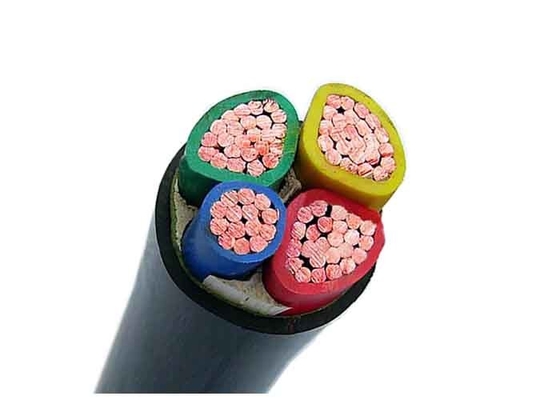

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer



Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/XLPE

Sheath: PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement



Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For laying indoors and outdoors.Able to bear certain traction during installation, but not

external mechanical forces.



Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request


Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, CCC, KEMA and more others at request



Electric Performance



1.Maximum Conductor DC resistance @ 20℃, Ω/km

Cross Section mm2 Copper Aluminum

Cross Section

mm2

Copper Aluminum
25 0.727 1.20 185 0.0991 0.164
35 0.542 0.868 240 0.0754 0.125
50 0.387 0.641 300 0.0601 0.100
70 0.268 0.443 400 0.0470 0.0778
95 0.193 0.320 500 0.0366 0.0605
120 0.153 0.253 630 0.0238 0.0469
150 0.124 0.206



2. Single phase AC 50Hz voltage test or DC voltage test:

Rated voltage 3.6 6 8.7 12 18 21 26
Single phase AC 50Hz test voltage 12.5 21 30.5 42 63 73.5 91



3. Partial Charge Test:

Test voltage is 1.73U0, the partial charge should not bigger than 10PC.

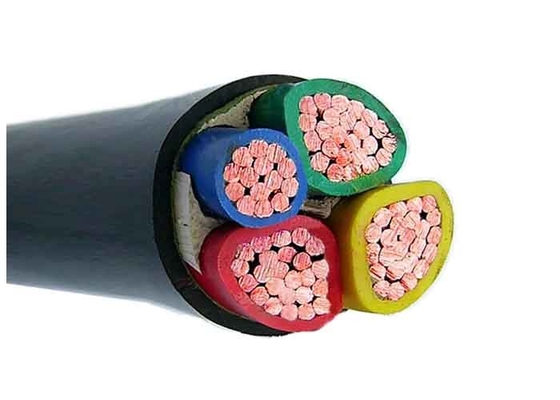

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer
