SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified

China SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified supplier
SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified supplier SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified supplier SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified supplier SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified supplier

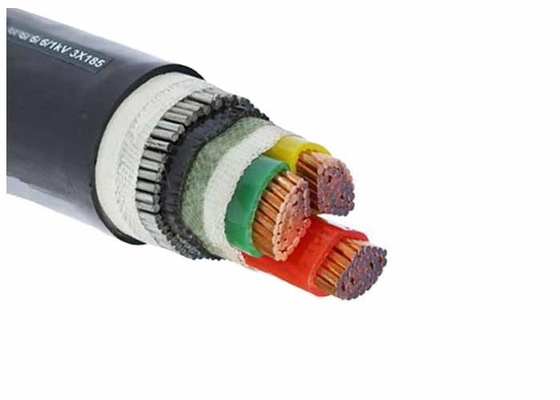

Large Image :  SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: KEMA/CE/ISO/CCC
Model Number: NYY

Payment & Shipping Terms:

Minimum Order Quantity: 500m
Price: USD 0.16-2.88 /M
Packaging Details: Wooden drum
Delivery Time: 7-10 days
Payment Terms: L/C, T/T
Supply Ability: 500KM per Month
Contact Now
Detailed Product Description
Structure: Cu(Al)/XLPE/PVC Insulation: 90℃ XLPE
Sheath: PVC ST2 Application: Power Station
Test Voltage: 3.5KV/5mins Warranty: 2 Years

SWA Low Voltage PVC Insulated PVC Sheathed Power Cable 0.6/1kV KEMA Certified





LV PVC Power Cable (Low Voltage PVC Insulated PVC Sheathed Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Low Voltage PVC Insulated PVC Sheathed Power Cable.

Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.



Construction:
0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

0.6/1kV PVC Insulated Power Cable Conductor Insulation Armor Outer Sheath
Aluminum Copper PVC SW ST DST AW PVC PE
Cu/PVC/PVC   P P --- --- --- --- P
Cu/PVC/PE   P P --- --- --- ---   P
Al/PVC/PVC P   P --- --- --- --- P
Al/PVC/PE P   P --- --- --- ---   P
Cu/PVC/STA/PVC   P P --- P --- --- P
Cu/PVC/STA/PE   P P --- P --- ---   P
Al/PVC/STA/PVC P   P --- P --- --- P
Al/PVC/STA/PE P   P --- P --- ---   P
Cu/PVC/DSTA/PVC   P P --- --- P --- P
Cu/PVC/DSTA/PE   P P --- --- P ---   P
Al/PVC/DSTA/PVC P   P --- --- P --- P
Al/PVC/DSTA/PE P   P --- --- P ---   P
Cu/PVC/SWA/PVC   P P P --- --- --- P
Cu/PVC/SWA/PE   P P P --- --- ---   P
Al/PVC/SWA/PVC P   P P --- --- --- P
Al/PVC/SWA/PE P   P P --- --- ---   P
Cu/PVC/AWA/PVC   P P --- --- --- P P
Cu/PVC/AWA/PE   P P --- --- --- P   P
Al/PVC/AWA/PVC P   P --- --- --- P P
Al/PVC/AWA/PE P   P --- --- --- P   P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire
