0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission

China 0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission supplier
0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission supplier 0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission supplier 0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission supplier 0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission supplier

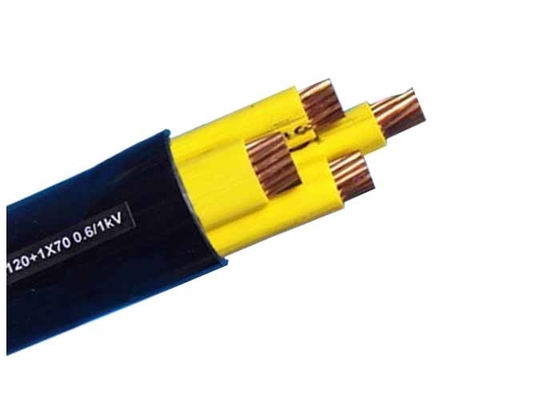

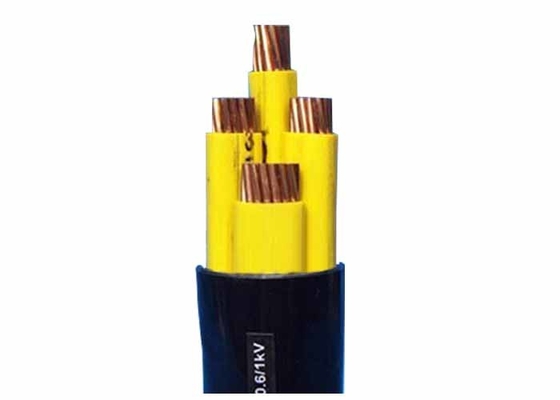

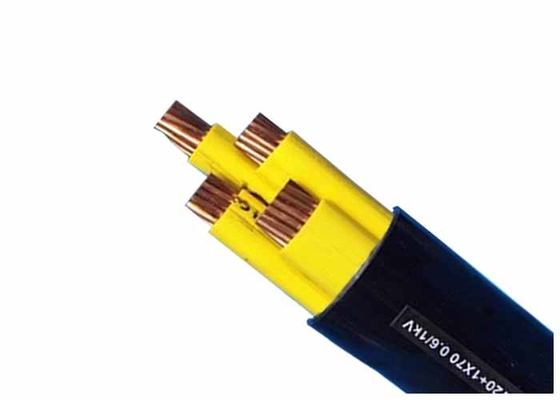

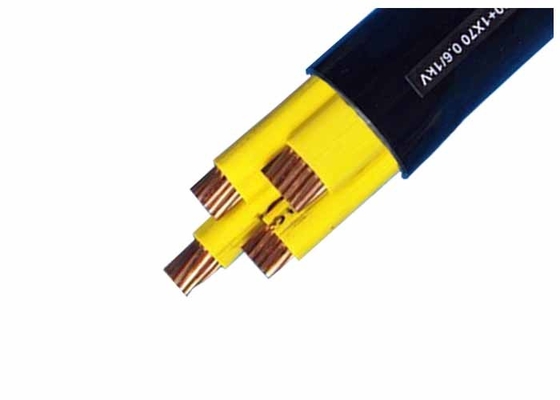

Large Image :  0.6/ 1kV Four Cores CU/PVC/PVC Yellow PVC Insulated Cables for Power Transmission

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: CU/XLPE/PVC 1kV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Size: 1.5~800 Sqmm Core No.: 1~5
Insulation Color: Yellow Or Customized Sheath Color: Black Or Red Or Customization
Marking: Ink Or Embossing Sample: Available
High Light:

PVC Insulated Power Cable

,

PVC Electrical Cable

0.6/ 1kV Four Cores CU/PVC/PVC Yellow Color Power Cable for Power Transmission

Application:
Low Voltage PVC Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 1kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.


Voltage rating for PVC Power CableNo. x Nominal Cross Section of Conductor No. x mm2
1 core2 core3 core3+1 core4core3+2 core4+1 core5 core
0.6/1 kV1x4 mm22x4 mm23x4 mm23x4 mm2 + 1x2.5mm24x4 mm23x4 mm2 + 2x2.5mm24x4 mm2 + 1x2.5mm25x2.5 mm2
1x6 mm22x6 mm23x6 mm23x6 mm2 + 1x4 mm24x6 mm23x6 mm2 + 2x4 mm24x6 mm2 + 1x4 mm25x4 mm2
1x10 mm22x10 mm23x10 mm23x10 mm2 + 1x6 mm24x10 mm23x10 mm2 + 2x6 mm24x10 mm2 + 1x6 mm25x6 mm2
1x16 mm22x16 mm23x16mm23x16 mm2 + 1x10 mm24x16 mm23x16 mm2 + 2x10 mm24x16 mm2 + 1x10 mm25x10 mm2
1x 25 mm22x 25 mm23x 25 mm23x25 mm2 + 1x16mm24x25 mm23x25 mm2 + 2x16mm24x25 mm2 + 1x16mm25x16 mm2
1x35 mm22x35 mm23x 35 mm23x35 mm2 + 1x16mm24x35 mm23x35 mm2 + 2x16mm24x35 mm2 + 1x16mm25x25 mm2
1x50 mm22x50 mm23x 50 mm23x50 mm2 + 1x25mm24x50 mm23x50 mm2 + 2x25mm24x50 mm2 + 1x25mm25x35 mm2
1x70 mm22x70 mm23x 70 mm23x70 mm2 + 1x35mm24x70 mm23x70 mm2 + 2x35mm24x70 mm2 + 1x35mm25x50 mm2
1x95 mm22x95 mm23x 95 mm23x95 mm2 + 1x50mm24x95 mm23x95 mm2 + 2x50mm24x95 mm2 + 1x50mm25x70 mm2
1x120 mm22x120 mm23x 120 mm23x120mm2 + 1x70mm24x120 mm23x120mm2 + 2x70mm24x120mm2 + 1x70mm25x95 mm2
1x150 mm22x150 mm23x 150 mm23x150mm2 + 1x70mm24x150 mm23x150mm2 + 2x70mm24x150mm2 + 1x70mm2
1x185 mm22x185 mm23x 185 mm23x185mm2 + 1x95mm24x185 mm23x185mm2 + 2x95mm24x185mm2 + 1x95mm2
1x240 mm2 3x 240 mm23x240mm2 + 1x120mm24x240 mm23x240mm2 + 2x120mm24x240mm2 + 1x120mm2
1x300 mm2 3x 300 mm23x300mm2 + 1x150mm24x300 mm23x300mm2 + 2x150mm24x300mm2 + 1x150mm2
1x400 mm2
1x500 mm2
