Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable

China Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable supplier
Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable supplier Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable supplier Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable supplier Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable supplier

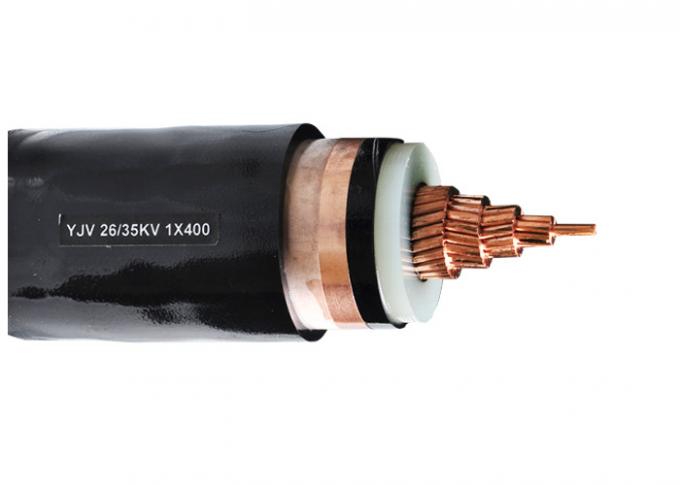

Large Image :  Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: CE/KEMA/TUV/ISO
Model Number: CU/XLPE/PVC-6/10KV

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: USD 0.8~125/m
Packaging Details: Wooden drum
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 7895623KM/Week
Contact Now
Detailed Product Description
Filler: Polypropylene Test Voltage: 3.5KV/5mins
Cable Sample: Available Jacket: PVC
Insulation: Cross-Linked XLPE Conductor: Annealed Copper

Single Core up to 1000 SQMM XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable

Constructions

Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
Insulation: XLPE(cross-linked polyethylene) rated at 90oC
Sheath: PVC type ST2 to IEC 60502, black

Applications

Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards

International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Specifications

Nom. section of conductorInsulation ThicknessSheath ThicknessApprox. O.D.Approx.WeightMax. D.C Resistance of Conductor (20 ℃ )Testing Voltage A.CCurrent Rating
mm2mmmmmmKg/kmΩ /kmKV/5minIn air (A)In soil(A)
1 × 1.50.71.565312.13.52633
1 × 2.50.71.56687.413.53443
1 × 40.71.57874.613.54456
1 × 60.71.571103.083.55670
1 × 100.71.58.21551.833.57794
1 × 160.71.59.22201.153.5100120
1 × 250.91.510.63450.7273.5130155
1 × 350.91.511.64240.5243.5160185
1 × 501.01.512.75550.3873.5195220
1 × 701.11.514.77700.2683.5245270
1 × 951.11.516.110400.1933.5300320
1 × 1201.21.517.812900.1533.5350365
1 × 1501.41.619.815900.1243.5400410
1 × 1851.61.621.819440.09913.5465465
1 × 2401.71.724.425100.07543.5550540
1 × 3001.81.826.730420.06013.5635610
1 × 4002.01.930.638690.04703.5745695
1 × 5002.22.134.549100.03663.5860780
1 × 6302.42.239.562200.02833.5990880
1 × 8002.62.445.278700.02213.51120970
1 × 10002.82.650.498040.01763.512601060


PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.


Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

Single Core XLPE Insulated Power Cable Middile Voltage Unarmoured Power Cable
