Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line

China Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line supplier
Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line supplier Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line supplier Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line supplier Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line supplier

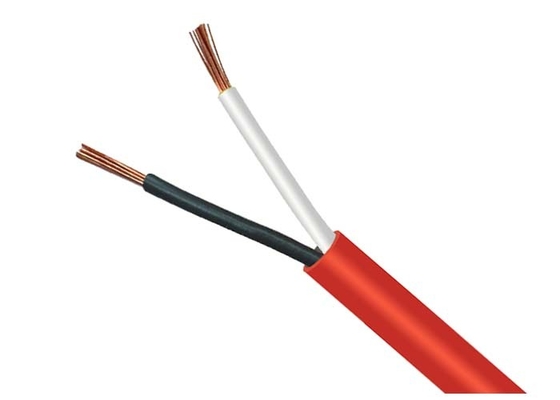

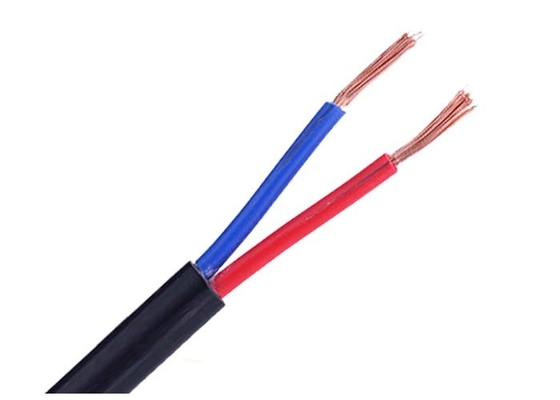

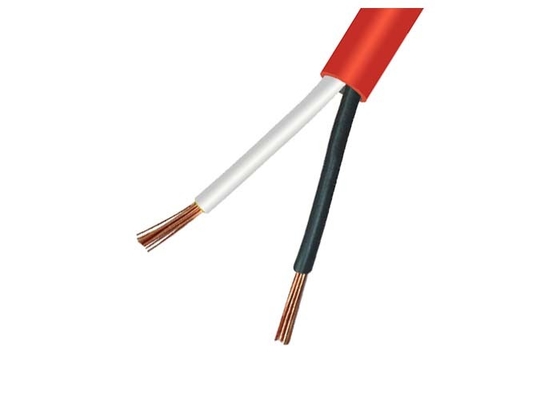

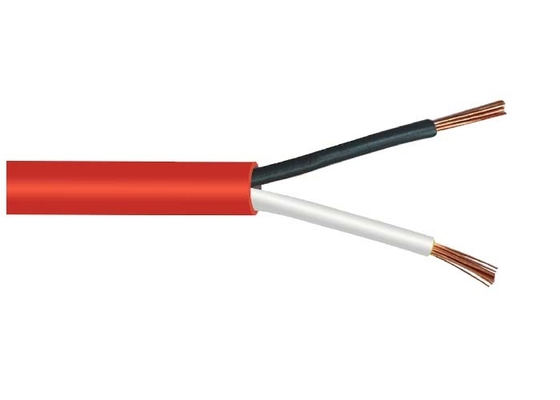

Large Image :  Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: BVVB

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Conductor: Solid Or Stranded Copper Conductor,comform To IEC 60228 Class1/2 Insulation: PVC
Rated Voltage: 300/500v Working Temperature: Not More Than 70℃
Min Bending: 6xO.D Sheath: PVC Type St5
High Light:

electrical wire cable

,

insulated wire cable

Ordinary PVC Sheathed cord 300/500v



Descriptions

Ordinary PVC Sheathed cord

Code designation:60227 IEC (International),BVVB 300/500V(China)



Constructions

1. Conductor:  Solid or Stranded copper conductor,comform to IEC 60228 class1,class 2

2. Insulation:PVC

3. Sheath:PVC type ST5



Applications

Used in the switch control,relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equiment, motor starters and controllers.



Standards

International:IEC 60227

China:GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical date

Rate voltage:300/500v

Max.Conductor Temp. in normal use: 70℃

Min. Bending Radius: 6 x cable O.D



Certificates

CE,RoHS,CCC,KEMS and more others at request



Specifications

Nom.Cross-section Area Number/Diameter of core Max.overall Diameter Max.R of conductor at 20℃ Approx.weight

mm2 mm mm ohm/km kg/km
2x0.75 2x1/0.97 4.6x7.0   43.7
2x1.0 2x1/1.13 4.8x7.4   51.0
2x1.5 2x1/1.38 5.4x8.4   65.9
2x2.5 2x1/1.78 6.2x9.8 7.41 95.7
2x4 2x7/0.85 7.2x11.5

4.61

146
2x6 2x7/1.04 8.0x13.0 3.08 200
2x10 2x7/1.35 9.6x16.0 1.83 323
3x0.75 3x1/0.97 4.6x9.4 24.5 62.6
3x1.0 3x1/1.13 4.8x9.8 18.1 74.3
3x1.5 3x1/1.38 5.4x11.5 12.1

95.6

3x2.5 3x1/1.78 6.2x13.5 7.41 140
3x4 3x7/0.85 7.4x16.5 4.61 220
3x6 3x7/1.04 8.0x18.0 3.08 295
3x10 3x7/1.35 9.6x22.5 1.83 485





After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.



Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line 0Copper Core Electrical Wire Cable PVC Insulation PVC Sheath Round Power Line 1
