0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable

China 0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable supplier
0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable supplier 0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable supplier 0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable supplier 0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable supplier

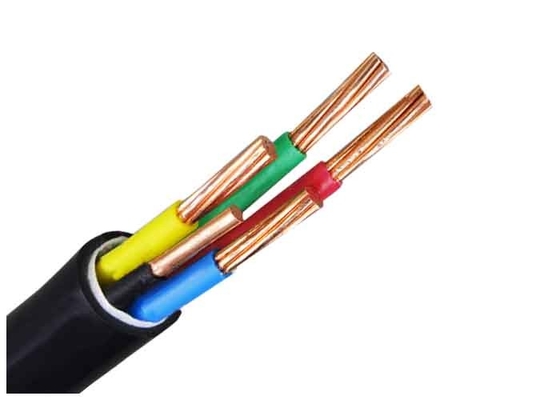

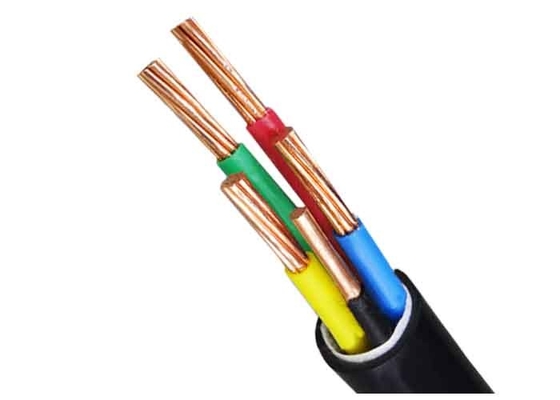

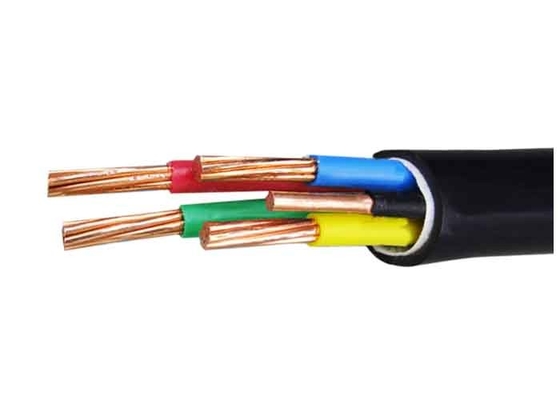

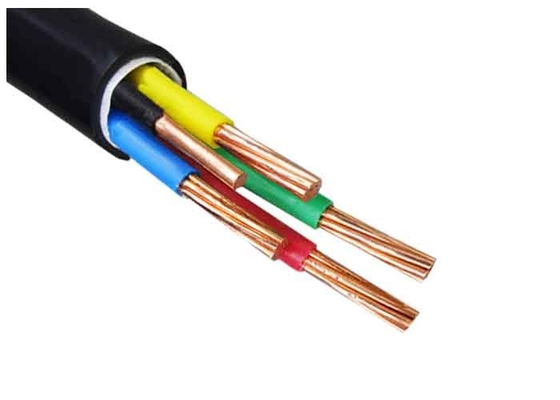

Large Image :  0.6/1KV Armoured 5 Core PVC Insulated Cable PVC Electrical Copper Power Cable

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,KEMA
Model Number: CU/PVC/PVC 1k,VVV 5C

Payment & Shipping Terms:

Minimum Order Quantity: 2000meter
Price: US$0.18~108.87per meter
Packaging Details: Sealing Steel -wooden drum
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000 Kilometer/Month
Contact Now
Detailed Product Description
Model Name: PVC Cable 5 Cores Conductor Type: Copper Conductor
Size: 1.5-400sqmm Core No.: 5
Warranty: 2 Years Free Sample: Avaliable

0.6/1KV Armoured 5 Core PVC Insulated Cable PVC electrical Copper Power Cable



Construction: Conductor : Annealed Copper Conductor as per IEC 60228

≤6mm2 solid (class 1) or stranded (class 2)

>6mm2 stranded (class 2)

Flexible conductor(class 5) optional.

Insulation : PVC(polyvinyl chloride) rated at 75℃

Metallic Screen optional : Copper tape or copper wires braiding optional

Armored optional: :Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Installation: 1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.



Applications: PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV. Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.



Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request



Technical parameter



Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
5x2.5 0.8 1.8 13.6 7.41 3.5
5x4 1.0 1.8 16.1 4.61 3.5
5x6 1.0 1.8 17.7 3.08 3.5
5x10 1.0 1.8 21.0 1.83 3.5
5x16 1.0 1.8 23.8 1.15 3.5
5x25 1.2 1.8 28.7 0.73 3.5
5x35 1.2 1.9 32.0 0.524 3.5
5x50 1.4 2.1 37.4 0.387 3.5
5x70 1.4 2.2 41.7 0.268 3.5
5x95 1.6 2.4 48.1 0.193 3.5
5x120 1.6 2.5 53.0 0.153 3.5
5x150 1.8 2.7 58.6 0.124 3.5
5x185 2.0 2.9 65.1 0.0991 3.5
5x240 2.2 3.1 72.1 0.0754 3.5
5x300 2.4 3.4 80.1 0.060 3.5
5x400 2.6 3.6 87.0 0.0470 3.5


Main Properties



No. Test Item Property
1 Construction Listed to the tables
2 Conductor resistance Listed to the tables
3 Test Voltage A.C 3.5kV 5min No breaken
4 Machenical Properties before aging Tensile Strength Insulation Min. 12.5N/mm2
Sheath Min. 12.5N/mm2
Elongation at break Insulation Min. 150%
Sheath Min. 150%
Machenical properties after aging Tensile Strength Insulation 100℃±2℃7days Min. 12.5N/mm2
Sheath 100℃±2℃7days Min. 12.5N/mm2
Varying valve of tensile strength Insulation 100℃±2℃7days Max. 25%
Sheath 100℃±2℃7days Max. 25%
Elongation at break Insulation 100℃±2℃7days Min.150%
Sheath 100℃±2℃7days Min.150%
Varying valve of tensile strength Insulation 100℃±2℃7days Max. 25%
Sheath 100℃±2℃7days Max. 25%
5 Flame retardant property IEC60332 - 3
6 Constant of insulation resistivity Min at 20℃ 36.7
Ki MΩ.km Min at 70℃ 0.037


Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
