Product Details:
Payment & Shipping Terms:
|
| Application: | Fixed Wiring Which Requires Flexibility | Standard: | IEC60227 |
|---|---|---|---|
| Insulation: | PVC | Conductor: | Stranded Copper |
| Sample: | Free | Color: | Yellow/Green,Black And So On. |
| Core: | Two | ||
| High Light: | electrical wire cable,insulated wire cable |
||

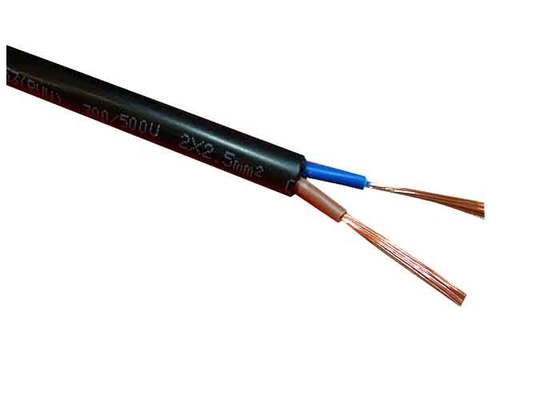

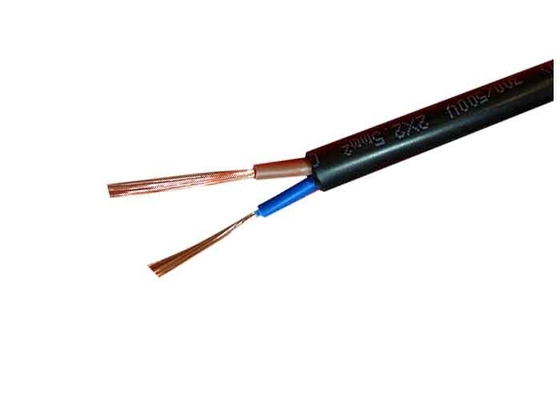

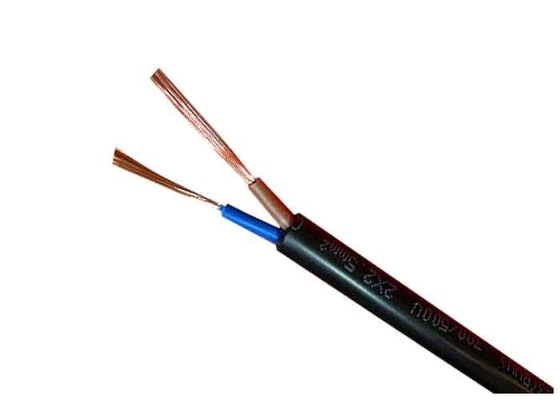

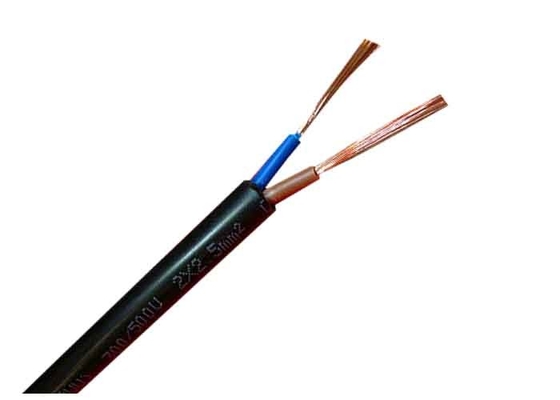

Good Price Double Cores Flexible Cores PVC Insulated Wire Cable RVV 1.5mm2 2.5mm2 4mm2
Specifications
H05V-K 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 0.3 | 16/0.15 | 2.3 | 6.4 |
| 0.4 | 23/0.15 | 2.5 | 8.1 |
| 0.5 | 16/0.2 | 2.6 | 9.1 |
| 0.75 | 24/0.2 | 2.8 | 12.2 |
| 1.0 | 32/0.2 | 3.0 | 15.1 |
H07V-K 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 1.5 | 30/0.25 | 3.4 | 21.4 |
| 2.5 | 49/0.25 | 4.1 | 24.5 |
H07V-K 450/750V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 4 | 56/0.20 | 4.8 | 51.8 |
| 6 | 84/0.30 | 6.4 | 71.4 |
| 10 | 84/0.30 | 8.0 | 12.4 |
1) Conductor: Copper; Solid, Stranded & Flexible; 1~5 Cores
2) Insulation: Polyvinyl Chloride (PVC), Flame-Retardant or Halogen Free Polyolefin, Rubber, XLPE, etc.
3) Sheath: Non-Sheathed or PVC, PE, etc.
4) Features: Solid, Flexible, Round, Flat, Flame-Retardant, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature Resistant, etc.
5) Rated Voltage: 450/750V or 300/500V
6) Work Temperature: 70°C / 90°C / 105°C / 120°C / 150°C / 200°C / 250°C
7) Colors: Red, Blue, Brown, White, Black, Yellow, Two Colors, etc.
These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc.and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.
