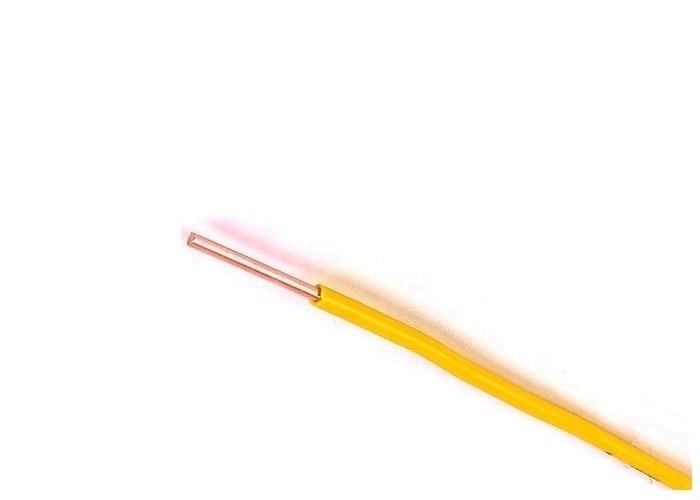

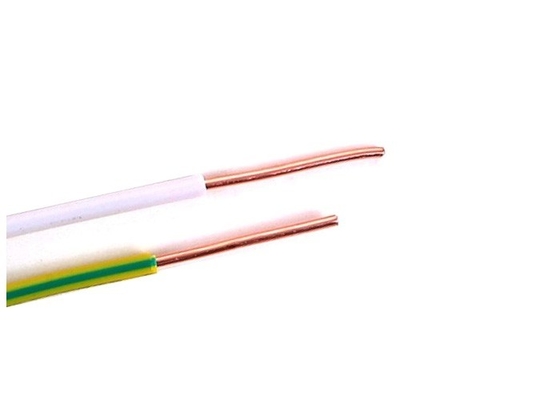

Plain Circular Solid Copper Conductor Electrical Cable Wire Pvc Insulation

China Plain Circular Solid Copper Conductor Electrical Cable Wire Pvc Insulation supplier
Plain Circular Solid Copper Conductor Electrical Cable Wire Pvc Insulation supplier Plain Circular Solid Copper Conductor Electrical Cable Wire Pvc Insulation supplier Plain Circular Solid Copper Conductor Electrical Cable Wire Pvc Insulation supplier

Large Image :  Plain Circular Solid Copper Conductor Electrical Cable Wire Pvc Insulation

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: KEMA/CE/TUV/ISO/CNAS
Model Number: BV

Payment & Shipping Terms:

Minimum Order Quantity: 2000m
Price: USD 0.1-90/m
Packaging Details: 100M/Roll Or 500M/ Drum
Delivery Time: 7-15 days
Supply Ability: 63520KM/Week
Contact Now
Detailed Product Description
Insulation: PVC/C Rated Voltage: 300/500
Conductor: Solid Copper,IEC 60228 Class 1 Core: Single Core
Working Temperature: Not More Than 70℃ Color: Yellow,blue,green And More

Plain circular solid copper conductor pvc insulation low voltage house wieing cable



PVC Insulation Wire

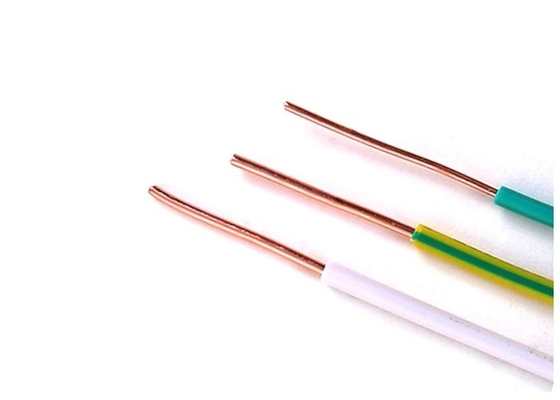

The commonly used BV lines are red, yellow, blue, green, black, white, double color (yellow, green) and brown.



1.Application



This product is fit for ac rated voltage 450/750v

Code designation:60227 IEC 05 (International),BV 300/500v(China)



2.Technical date



Rate voltage:300/500v

Max.Conductor Temp. in normal use: 70℃

Min. Bending Radius: 4 x cable O.D





3.Standards



International:IEC 60227

China:GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



4.Certificates

CE,RoHS,CCC,KEMS and more others at request



5.Specifications

Nom.Cross-section Area Thickness of insulation Mean.O.D. Max.R of conductor at 20℃ Min.Insulation resistance at 70℃ Approx.weight
Lower Limit Upper Limit
mm2 mm mm mm ohm/km M ohm˙km kg/km
0.5 0.6 1.9 2.3 8.5 0.015 36.0
0.75 0.6 2.1 2.5 11.1 0.012 24.5
1 0.6 2.2 2.7 13.9 0.011 18.1
