|Insulation:||PVC||Conductor:||Flexible Copper Conductor Class 5|
|Working Temperature:||Not More Than 70℃||Rated Voltage:||300/500 V|
|Sheath:||PVC||Sheath Color:||White And More|
|Insulation Color:||Red,black,blue And More|

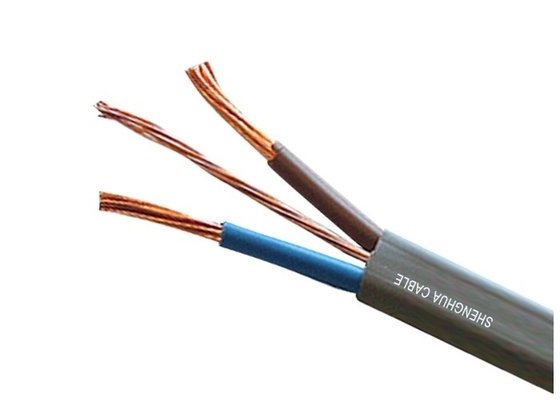

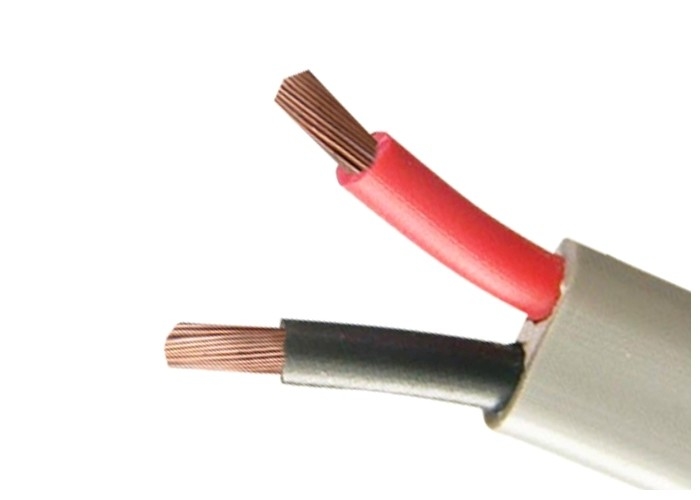

Flexible copper conductor pvc insulation and sheath house wiring cable
Ordinary PVC Sheathed cord
Code designation:60227 IEC 53 (International),RVVB 300/500v(China)
1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5
3.Sheath:PVC type ST5
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Other standards such as BS,DIN and ICEA upon request
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
CE,RoHS,CCC,KEMS and more others at request
|Nom. Cross-section of conductor||Number/Diameter of core||Max.overall Diameter||Approx.Weight|
