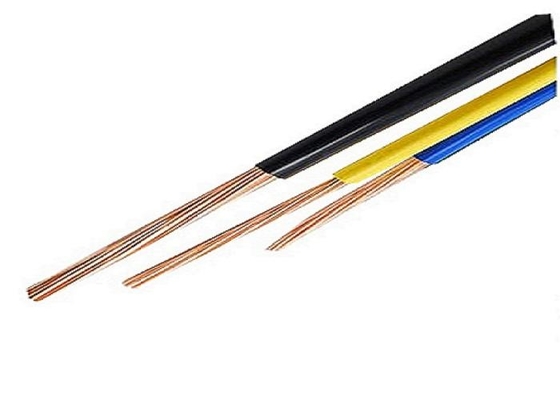

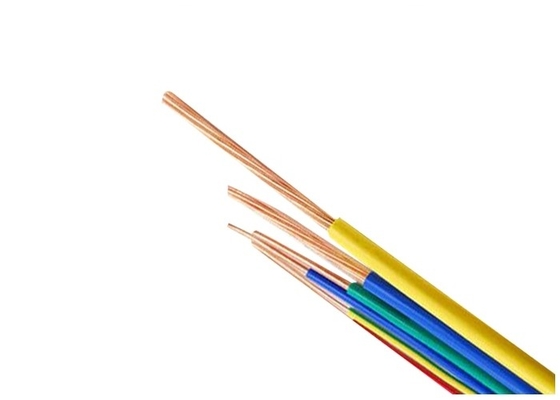

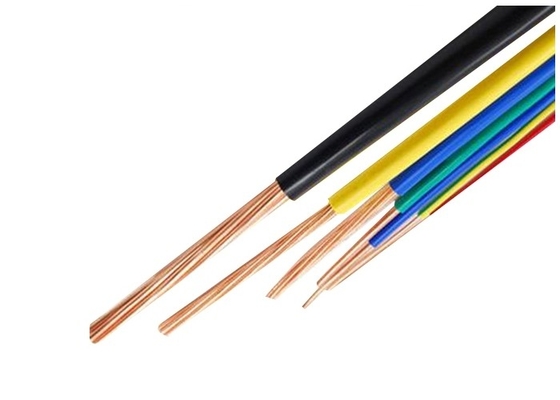

Single Core Non Sheathed Electrical Cable Wire Low Voltage House Wiring Cable

Descriptions

single-core non-sheathed cables with rigid conductor for general purposes

Code designation : 60227 IEC 01 ( International ) , BV 450 / 750V ( China ) , BVR 450 / 750V ( China ) , ho7v-u ( VDE )

Constructions

1. Conductor : Plain circular stranded copper conductor , comform to EC 60228 class 2
2. Insulation : PVC / C

Applications

In dry rooms , apparatus switch and distribution boards , for fixed installation in conduits , over and under plaster and on insulated supports over plaster . Direct laying in plaster is not permitted

Standards

International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request

Technical data

Rated voltage : 450 / 750 V

Max . Conductor Temp . in normal use : 70℃

Min Bending Radius : 4 x cable O.D



Certificates

CE,ROHS,CCC,KEMA and more others at request



Specification

Nom.Cross-section Area	Thickness of insulation	Mean.O.D.		Min.Insulation resistance at 70℃	Max.R of conductor at 20℃	Approx.weight
		Lower Limit	Upper Limit
mm2	mm	mm	mm	MΩ*KM	Ω/km	kg/km
1.5	0.7	2.7	3.3	0.010	12.1	21.6
2.5	0.8	3.3	4.0	0.009	7.41	34.8
4	0.8	3.8	4.6	0.0077	4.61	50.3
6	0.8	4.3	5.2	0.0065	3.08	71.2
10	1.0	5.6	6.7	0.0066	1.83	119
16	1.0	6.4	7.8	0.0050	1.15	179
25	1.2	8.1	9.7	0.0050	0.727	281
