Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm

China Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm supplier
Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm supplier Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm supplier Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm supplier Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm supplier

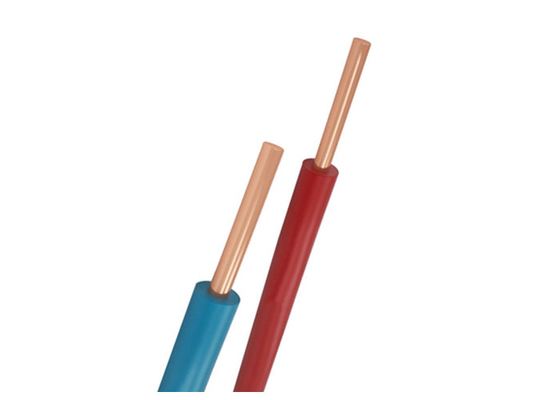

Large Image :  Non Sheated Electrical Cable Wire Solid Core Pvc Insulation 0.5mm - 2.5mm

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: CE/CCC/ROHS/KEMA
Model Number: BV-90

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: USD 0.1-10.99/m
Packaging Details: 100m/roll
Delivery Time: 15 day
Supply Ability: 80KM/ Day
Contact Now
Detailed Product Description
Size: 0.5mm-2.5mm Color: Yellow,red,green And More
Core: Single Rated Voltage: 300/500v
Certifcates: CE,RoHS,CCC,KEMS And More Others At Request Conductor Class: Class 1

Solid Core PVC Insulation Non Sheated Electrical Cable Wire



BV wire is referred to as plastic copper wire and PVC insulated copper wire.
B stands for category, housing wire; V stands for insulation: PVC. Suitable for cables and wires for power devices, household appliances, instruments and telecommunication equipment for AC voltages up to and including 450/750V



Descriptions

single-core non-sheathed cables with solid conductor for internal wiring for a conductor temperature of 90℃ Code designation : 60227 IEC 07 ( International ),BV-90 300/500v(china).

Constructions

1. Conductor : Plain circular solid copper conductor , comform to IEC 60228 class 1
2. Insulation : PVC / E

Standards

International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request

Technical data

Rated voltage : 300 / 500 V

Max . Conductor Temp . in normal use : 90℃

Min Bending Radius : 4 x cable O.D

Certificates
CE,ROHS,CCC,KEMA and more others at request


Specifications

Nom.Cross-section Area Thickness of insulation Mean.O.D. Max.R of conductor at 90℃ Min.Insulation resistance at 20℃ Approx.weight
Lower Limit Upper Limit
mm2 mm mm mm m ohm/km  ohm˙km kg/km
0.5 0.6 1.9 2.3 0.015 36.0 9.9
0.75 0.6 2.1 2.5 0.013 24.5 13.0
1 0.6 2.2 2.7 0.012 18.1 15.5
1.5 0.7 2.6 3.2 0.011 12.1 21.0
2.5 0.8 3.2 3.9 0.009 7.41 32.5
