|Product Name:||Armoured CU Power Cable||Insulation:||XLPE|
|Sheath:||PVC, PE, LSOH||Certificate:||KEMA|
armoured power cable,
armored electrical cable
Medium Voltage XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4.Excellent electrical performance, resistance to chemical corrosion.
|Conductor:||Cu round aluminum, multi wire stranded compacted (RM), class 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295|
|Inner screen:||extruded semi-conductive skin on conductor|
|Insulation:||XLPE (cross-linked polyethylene, recent mark: PE-X) compound DIX 8 acc. to HRN HD 620 S1 ili 2XI1 acc. to DIN VDE 0207 dio 22|
|External screen:||extruded semi-conductive skin on insulation, longitudinally spliced with insulation (+tape of semi-conductive material)|
|Conductorscreen:||copper tape wrapped in counter-helix|
|Filler:||fillers strip, yarn, or paper|
|Wrapping:||non woven wrapping tape or flame retardant or water proof|
|Inner covering:||Extruded PVC|
|Overall Sheath||polyvinylchloride (PVC) or FR-PVC, PE, LSOH|
|Sheath color||Black, red or customized|
a. Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
b. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges.
c. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
|MV(11kv 15kv 33kv) Power Cable|
|Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV||No.of Core||Conductor cross-section area(mm2)|
|xlpe insulation||1 core 3 core||10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm|
|YJV, N2XSY;PVC sheathed power cable|
|YJV22;steel tape armoured,PVC sheathed power cable|
|YJV32,YJV42;steel wire armoured ,PVC sheathed power cable|
|YJLV, NA2XSY; PVC sheathed power cable|
|YJLV22;steel tape armoured,PVC sheathed power cable|
|YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable|

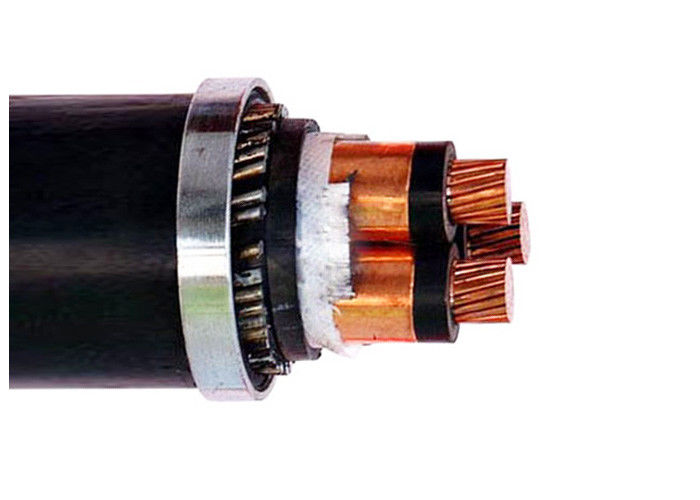

Three Core XLPE Cable Steel Wire Armored
1. Conductor 2. Conductor Screen 3. XLPE insulation 4. Insulation Screen
5. Metal Screen 6. Filler 7. Seperating Sheath(Inner Covering)
8. Armor 9. Outer sheath
Service Conditions And Parameters Of Cable:
The maximum conductor operating temperature: 90℃;
Short Circuit Temperature 250℃Not more than 5 secretary
Environmental Temperature of operating
In air: 40℃, Underground: 25℃
Depth of laying in direct: 80cm
Thermal Resistance of soil: 100℃.cm/W
Environment temperature should be no lower than 0℃ for laying the cable.
D.C Resistance of finished cable at 20℃ per km is not more than the following.
