Product Details:
Payment & Shipping Terms:
|
| Size: | 0.75-6mm | Core: | 1 |
|---|---|---|---|
| Insulation: | Pvc | Certificates: | CE,ROHS,CCC,KEMA And More Other At Request |
| Sample: | 1.5m Free Of Charge | Color: | As Per Request |
| High Light: | insulated wire cable,electrical wire cable |
||

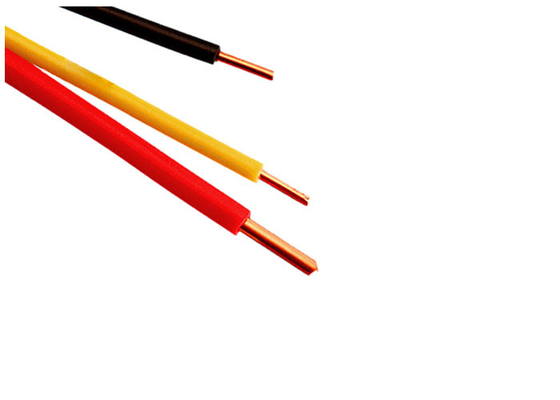

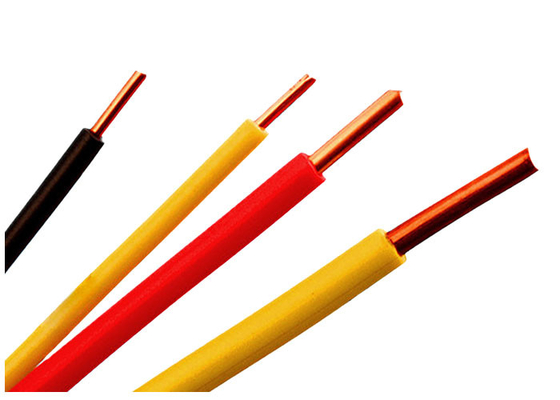

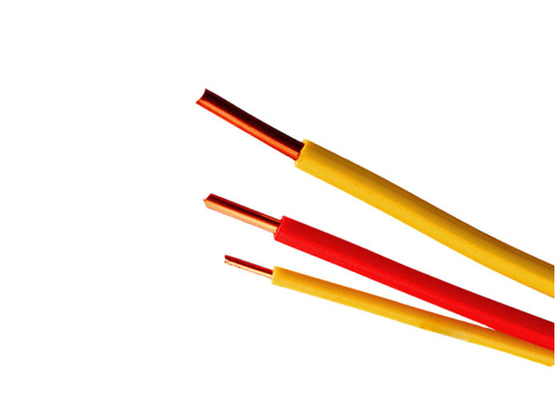

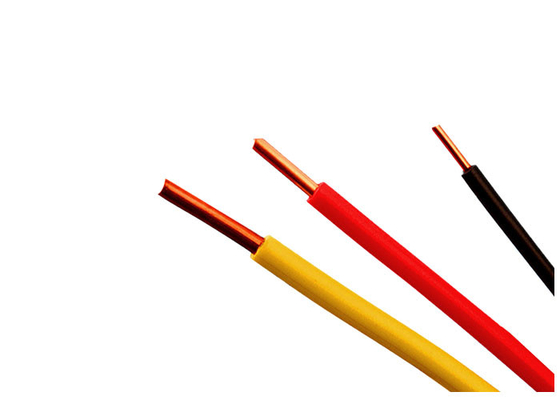

Color Customized Bare Copper Conductor Single Core PVC Insulated Cable 450/750V
The product is suitable for power installation, fixed wiring or flexible connection for electrical appliances with rated voltage of 450/750V and below.
| Description | Single Core PVC Insulated Wire |
| Conductor: | Bare Copper Conductor of Class 1/2 (Solid) |
| Insulation: | PVC Compound |
| Insulation Color | Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink, Orange, Yellow/Green |
| Temperature Range: | -30 - 70℃ |
| Nominal Voltage: | 300/500V, 450/750 V |
| Test Voltage: | 2500 V |
| Minimal Bending Radius: | 4D |
| Standard: | IEC 60552 |
Specifications
| Conductor cross-section | Conductor construction | External diameter | Insulation thickness | Conductor resistance at 20 °C | Insulation resistance at 70°C | Cu weight | Cable weight |
| nominal | min-max | nominal | max | min | approx | ||
| mm² | n x mm | mm | mm | Ω/km | MΩkm | kg/km | kg/km |
| 0.5 | 1 x 0.80 | 1.9 – 2.3 | 0.6 | 36.0 | 0.014 | 4.8 | 9 |
| 0.75 | 1 x 0.95 | 2.1 – 2.5 | 0.6 | 24.5 | 0.013 | 7.2 | 10 |
| 1 | 1 x 1.13 | 2.2 – 2.7 | 0.6 | 18.1 | 0.011 | 9.6 | 14 |
| 1.5 | 1 x 1.38 | 2.6 - 3.2 | 0.7 | 12.10 | 0.011 | 14.4 | 20 |
| 2.5 | 1 x 1.78 | 3.2 - 3.9 | 0.8 | 7.41 | 0.010 | 24.0 | 31 |
| 4 | 1 x 2.26 | 3.6 - 4.4 | 0.8 | 4.61 | 0.0087 | 38.4 | 46 |
| 6 | 1 x 2.70 | 4.1 - 5.0 | 0.8 | 3.08 | 0.0070 | 57.6 | 65 |
| 10 | 7 x 1.35 | 5.6 - 06.7 | 1.0 | 1.83 | 0.0067 | 96 | 120 |
| 16 | 7 x 1.70 | 6.4 - 07.8 | 1.0 | 1.150 | 0.0056 | 153.6 | 175 |
| 25 | 7 x 2.13 | 8.1 - 09.7 | 1.2 | 0.727 | 0.0053 | 240 | 275 |
| 35 | 7 x 2.52 | 9.0 - 10.9 | 1.2 | 0.524 | 0.0046 | 336 | 370 |
| 50 | 19 x 1.83 | 10.6 - 12.8 | 1.4 | 0.387 | 0.0046 | 480 | 500 |
| 70 | 19 x 2.17 | 12.1 - 14.6 | 1.4 | 0.268 | 0.0040 | 672 | 710 |
| 95 | 19 x 2.52 | 14.1 - 17.1 | 1.6 | 0.193 | 0.0039 | 912 | 970 |
| 120 | 37 x 2.03 | 15.6 - 18.8 | 1.6 | 0.153 | 0.0035 | 1152 | 1200 |
| 150 | 37 x 2.27 | 17.3 - 20.9 | 1.8 | 0.124 | 0.0035 | 1440 | 1470 |
