H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable

China H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable supplier
H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable supplier H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable supplier H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable supplier H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable supplier

Large Image :  H07V - U Solid Bare Copper Conductor Electrical Wires And Cables House Wiring Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: H07V-U

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Conductor: Solid Copper Insulation: PVC
Size: 1.5 To 150 Core: Single
Standards: GB/T 5023-2008 Rated Voltage: 450/750V Or 0.6/1kV
High Light:

insulated wire cable

,

electrical wire cable

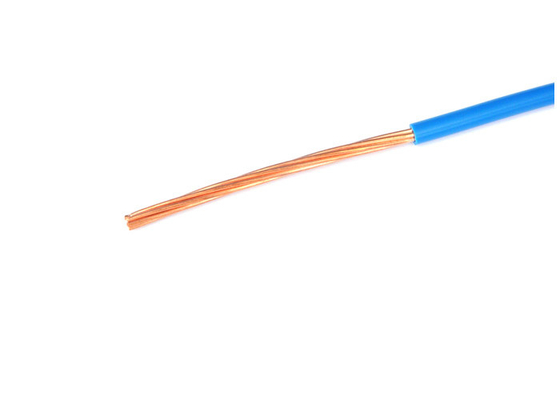

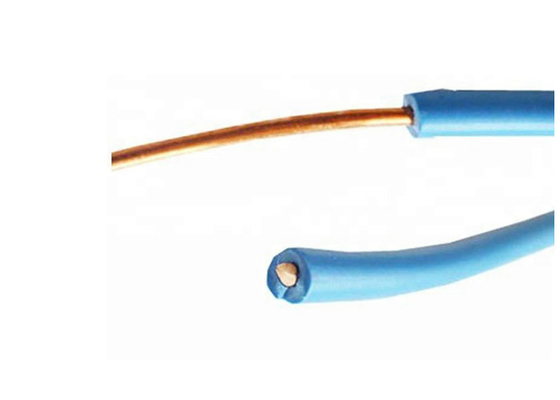

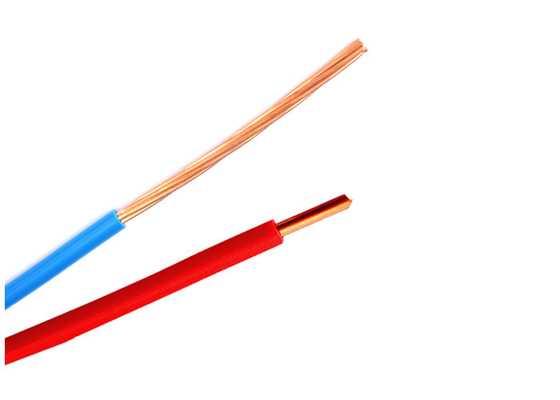

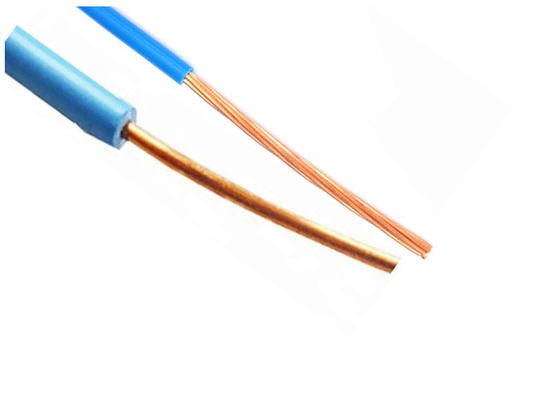

H07V-U Solid Bare Copper Single Core PVC Insulated House Wiring Cable


Descriptions

single-core non-sheathed cables with rigid conductor for general purposes

Code designation : 60227 IEC 01 ( Internationa ) , BV 450 / 750V ( China ) , BVR 450 / 750V ( China ) , h07v-u ( VDE)

Constructions

1 Conductor : Plain circular solid copper conductor , comform to IEC 60228 class 1

  Conductor : Plain circular stranded copper conductor , comform to IEC 60228 class 2
2. Insulation : PVC / C

Applications

In dry rooms , apparatus switch and distribution boards , for fixed installation in conduits , over and under plaster and on insulated supports over plaster . Direct laying in plaster is not permitted

BS6004 IEC227

MM²

Normal Area

MM

Structure

MM

Thicknees of

insulation

MM

App.overall dia

1.0mm² 1*1.13 0.6 2.50
1.5mm² 1*1.38 0.8 3.00
7*0.52 0.8 3.20
2.5mm² 1*1.78 0.8 3.40
7*0.68 0.8 3.60
4.0mm² 1*2.25 0.9 4.00
7*0.85 0.9 4.20
6.0mm² 1*2.76 0.9 4.80
7*1.04 0.9 5.00
10mm² 7*1.35 1.0 5.80
16mm² 7*1.70 1.0 6.80
25mm² 7*2.14 1.2 8.50
35mm² 7*2.52 1.2 10.00
50mm² 19*1.78 1.4 11.90
70mm² 19*2.14 1.4 13.70

Standard

International : IEC 60227

China : GB / T 5023-2008

Other standards such as BS , DIN and ICEA upon request

Technical data

Rated voltage : 450 / 750V

Max . Conductor Temp . in normal use : 70℃

Min . Bending Radius : 4 x cable O.D

Certificates

CE , ROHS , CCC , KEMA and more others at request
