Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors

China Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors supplier
Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors supplier Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors supplier Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors supplier Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors supplier

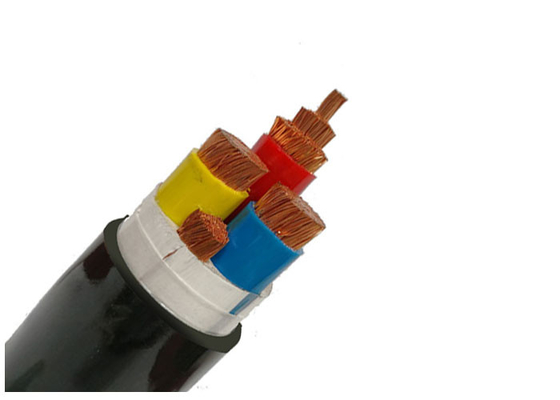

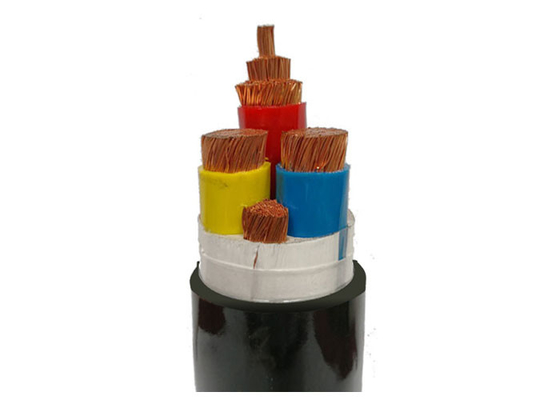

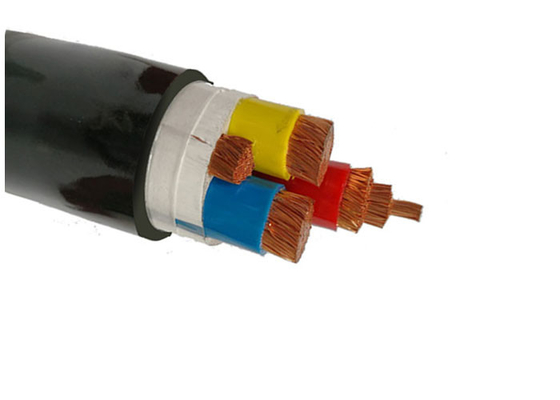

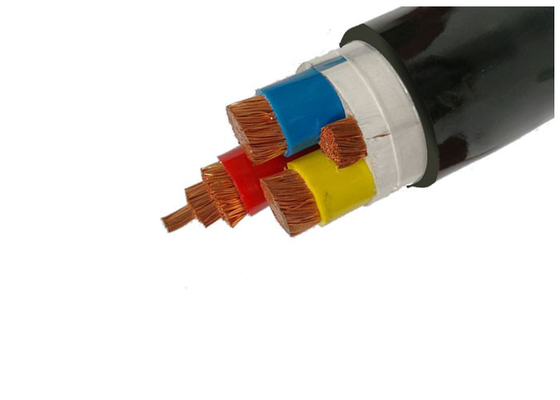

Large Image :  Multi Cores Pvc Electrical Cable 600 / 1000 V Flame Retardant Cables For Laying Indoors And Outdoors

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: CU/PVC/PVC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Cores: 4 Size: 2.5sqmm~630sqmm
Conductor Type: Copper Insulation Color: Red,Yellow,Blue,Green
Rated Voltage: 600/1000V Sheath Color: Black Or As Per Request
Packing: Steel Wooden Drum
High Light:

PVC Electrical Cable

,

PVC Insulated Power Cable

Multi Cores 0.6/1kV PVC Insulated Coper Power Cable Power Transmission Cable



Construction



Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC

Sheath: PVC type ST2 to IEC 60502, Black

Note: Insulation Color as per standards or customer requirement



Applications



Used for Power transmission and distribution line with voltage rated at 35kv and below.

For laying indoors and outdoors.Able to bear certain traction during installation, but not external mechanical forces.



Standards


International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request


Technical data


Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, CCC, KEMA and more others at request



Electric Performance


1.Maximum Conductor DC resistance @ 20℃, Ω/km



Cross Section mm2 Copper Aluminum

Cross Section

mm2

Copper Aluminum
25 0.727 1.20 185 0.0991 0.164
35 0.542 0.868 240 0.0754 0.125
50 0.387 0.641 300 0.0601 0.100
70 0.268 0.443 400 0.0470 0.0778
95 0.193 0.320 500 0.0366 0.0605
120 0.153 0.253 630 0.0238 0.0469
150 0.124 0.206



2. Single phase AC 50Hz voltage test or DC voltage test:



Rated voltage 3.6 6 8.7 12 18 21 26
Single phase AC 50Hz test voltage 12.5 21 30.5 42 63 73.5 91



3. Partial Charge Test:



Test voltage is 1.73U0, the partial charge should not bigger than 10PC.



After-service commitment


Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
