| Model Name: | Five Cores PVC Cable | Conductor Type: | Copper Conductor |
|---|---|---|---|
| Size: | 1.5-800mm2 | Core No.: | 5 |
| Warranty: | 2 Years | Free Sample: | Avaliable |
| High Light: | PVC Electrical Cable,PVC Insulated Power Cable |
||

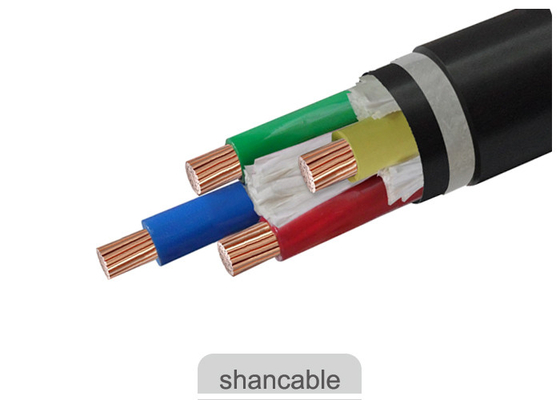

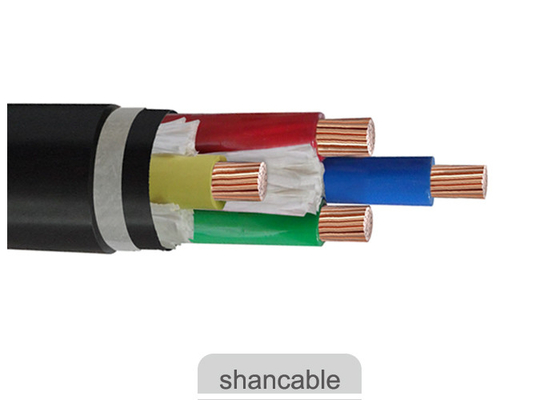

Five Cores CU / PVC/STA/PVC Cable CE 1kV Copper Conductor PVC Insulated Cables
Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70℃), short circuit no more than 5 s (160℃ when section area below 300mm2, 140℃ when section area above 300mm2)
Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D
Installation:
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
Applications:
PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV. Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.
Standards:
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Technical parameter
| Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
| mm2 | mm | mm | mm | ohm/km | KV/5min |
| 5x2.5 | 0.8 | 1.8 | 13.6 | 7.41 | 3.5 |
| 5x4 | 1.0 | 1.8 | 16.1 | 4.61 | 3.5 |
| 5x6 | 1.0 | 1.8 | 17.7 | 3.08 | 3.5 |
| 5x10 | 1.0 | 1.8 | 21.0 | 1.83 | 3.5 |
| 5x16 | 1.0 | 1.8 | 23.8 | 1.15 | 3.5 |
| 5x25 | 1.2 | 1.8 | 28.7 | 0.73 | 3.5 |
| 5x35 | 1.2 | 1.9 | 32.0 | 0.524 | 3.5 |
| 5x50 | 1.4 | 2.1 | 37.4 | 0.387 | 3.5 |
| 5x70 | 1.4 | 2.2 | 41.7 | 0.268 | 3.5 |
| 5x95 | 1.6 | 2.4 | 48.1 | 0.193 | 3.5 |
| 5x120 | 1.6 | 2.5 | 53.0 | 0.153 | 3.5 |
| 5x150 | 1.8 | 2.7 | 58.6 | 0.124 | 3.5 |
| 5x185 | 2.0 | 2.9 | 65.1 | 0.0991 | 3.5 |
| 5x240 | 2.2 | 3.1 | 72.1 | 0.0754 | 3.5 |
| 5x300 | 2.4 | 3.4 | 80.1 | 0.060 | 3.5 |
| 5x400 | 2.6 | 3.6 | 87.0 | 0.0470 | 3.5 |
Main Properties
| No. | Test Item | Property | ||
| 1 | Construction | Listed to the tables | ||
| 2 | Conductor resistance | Listed to the tables | ||
| 3 | Test Voltage | A.C 3.5kV 5min | No breaken | |
| 4 | Machenical Properties before aging | Tensile Strength | Insulation | Min. 12.5N/mm2 |
| Sheath | Min. 12.5N/mm2 | |||
| Elongation at break | Insulation | Min. 150% | ||
| Sheath | Min. 150% | |||
| Machenical properties after aging | Tensile Strength | Insulation | 100℃±2℃7days Min. 12.5N/mm2 | |
| Sheath | 100℃±2℃7days Min. 12.5N/mm2 | |||
| Varying valve of tensile strength | Insulation | 100℃±2℃7days Max. 25% | ||
| Sheath | 100℃±2℃7days Max. 25% | |||
| Elongation at break | Insulation | 100℃±2℃7days Min.150% | ||
| Sheath | 100℃±2℃7days Min.150% | |||
| Varying valve of tensile strength | Insulation | 100℃±2℃7days Max. 25% | ||
| Sheath | 100℃±2℃7days Max. 25% | |||
| 5 | Flame retardant property | IEC60332 - 3 | ||
| 6 | Constant of insulation resistivity | Min at 20℃ | 36.7 | |
| Ki MΩ.km | Min at 70℃ | 0.037 | ||
