Customized PVC Insulated Cables 600 / 1000V Rated Voltage With Three Half Core

China Customized PVC Insulated Cables 600 / 1000V Rated Voltage With Three Half Core supplier
Customized PVC Insulated Cables 600 / 1000V Rated Voltage With Three Half Core supplier Customized PVC Insulated Cables 600 / 1000V Rated Voltage With Three Half Core supplier

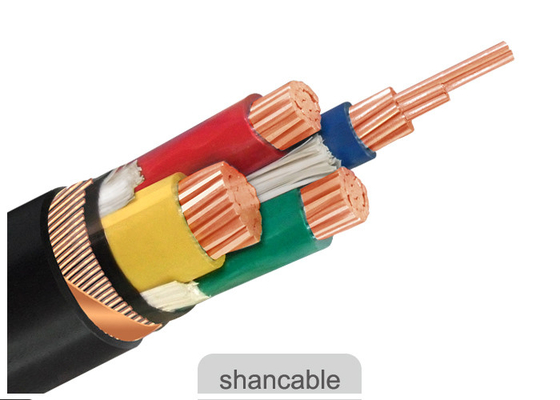

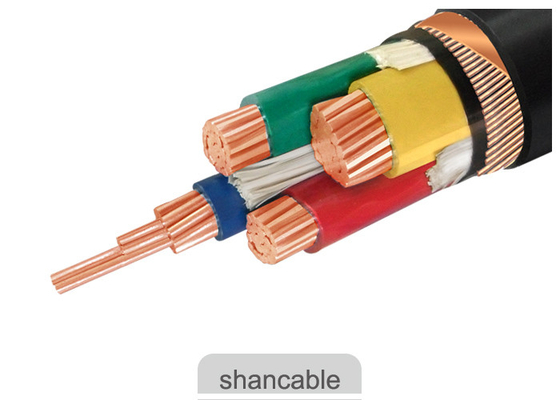

Large Image :  Customized PVC Insulated Cables 600 / 1000V Rated Voltage With Three Half Core

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,KEMA
Model Number: VV 3+1C, CU/PVC/PVC 1000V

Payment & Shipping Terms:

Minimum Order Quantity: 1000 meter
Price: US$2.06~71.95per meter
Packaging Details: Wooden drums for export
Delivery Time: 10 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 Kilometer per Week
Contact Now
Detailed Product Description
Model Name: PVC Insulated Cable 3+1 Cores Conductor Type: Copper
Size: 1.5sqmm~400 Sqmm Core No.: 3+1
Insulation Color: Customization Sheath Color: Normally Black

1000V Copper Conductor PVC Insulated Cables Customized With Three Half Core





Product Name PVC Insulation Electrical Cable and wire Application Power transmission and distribution and lighting systems
Nominal Area of conductor Power cable:1.5mm2 to 800mm2 Wire:0.50mm2 to 400mm2 Rated Voltage

600/1000V

300/500V

450/750V

Test Voltage

3.5KV/5min

2000V/5min

2500V/5min

Outer sheath Colour Black White,Green/or according to customer’s requirment
Standard IEC50502-1,IEC60228,IEC60227 type VV/VV22/VV32/BV/BVV/RV



Applications



Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.



Standards



International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor



Installation


1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.



Technical parameter:



Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
3x4+1x2.5 1.0 1.8 14.3 4.61 3.5
3x6+1x4 1.0 1.8 15.8 3.08 3.5
3x10+1x6 1.0 1.8 18.5 1.83 3.5
3x16+1x10 1.0 1.8 21.1 1.15 3.5
3x25+1x16 1.2 1.8 24.9 0.73 3.5
3x35+1x16 1.2 1.8 27.1 0.524 3.5
3x50+1x25 1.4 1.9 30.4 0.387 3.5
3x70+1x35 1.4 2.0 33.9 0.268 3.5
3x95+1x50 1.6 2.2 39.5 0.193 3.5
3x120+1x70 1.6 2.3 44.0 0.153 3.5
3x150+1x70 1.8 2.4 48.5 0.124 3.5
3x185+1x95 2.0 2.6 53.3 0.0991 3.5
3x240+1x120 2.2 2.8 55.0 0.0754 3.5
3x300+1x150 2.4 3.1 59.8 0.060 3.5
3x400+1x240 2.6 3.3 66.0 0.0470 3.5


Packing and shipping



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).

Shanghai Shenghua Cable (Group) Co., Ltd.



Customized PVC Insulated Cables 600 / 1000V Rated Voltage With Three Half Core



FAQ


Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
