| Model Name: | XLPE Insulated PVC Insulated Cables | Conductor: | Copper Conductor |
|---|---|---|---|
| Insulation: | XLPE(cross-linked Polyethylene) | Sheath: | PVC Or FR-PVC Type ST2 To IEC 60502, Black |
| Application: | Power Transmission And Distribution System | Free Sample: | Avaliable |
| High Light: | PVC Electrical Cable,PVC Insulated Power Cable |
||
XLPE Insulated PVC Insulated Cables Power Transmission And Distribution System
XLPE Insulated PVC Insulated Cables Applications
It is used to transmit and distribute power in power transmission and distribution system .
It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry
and communication in complete replace of oil immersed paper insulated power cable and in partial replace
of PVC insulated power cable.
XLPE Insulated PVC Insulated Cables Standards
Maximum Conductor Temperature: under normal (90 OC), emergency (110OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
XLPE Insulated PVC Insulated Cables Technical parameter
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 1.5 | 1/1.38 | 0.7 | 1.4 | 6.2 | 49 | 12.1 | 3.5 | 21 | 32 |
| 1 ×2.5 | 1/1.78 | 0.7 | 1.4 | 6.6 | 62 | 7.41 | 3.5 | 31 | 42 |
| 1 × 4 | 1/2.25 | 0.7 | 1.4 | 7.1 | 79 | 4.61 | 3.5 | 41 | 55 |
| 1 × 6 | 1/2.76 | 0.7 | 1.4 | 7.6 | 101 | 3.08 | 3.5 | 52 | 69 |
| 1 × 10 | 7/1.38 | 0.7 | 1.4 | 8.7 | 148 | 1.83 | 3.5 | 71 | 92 |
| 1 × 16 | 7/1.78 | 0.7 | 1.4 | 9.6 | 211 | 1.15 | 3.5 | 92 | 115 |
| 1 × 25 | 7/2.14 | 0.9 | 1.4 | 11.2 | 308 | 0.727 | 3.5 | 120 | 150 |
| 1 × 35 | 7/2.52 | 0.9 | 1.4 | 12.2 | 406 | 0.524 | 3.5 | 150 | 180 |
| 1 × 50 | 10/2.52 | 1.0 | 1.4 | 13.6 | 560 | 0.387 | 3.5 | 180 | 215 |
| 1 × 70 | 14/2.52 | 1.1 | 1.4 | 15.3 | 759 | 0.268 | 3.5 | 230 | 265 |
| 1 × 95 | 19/2.52 | 1.1 | 1.5 | 17.2 | 1006 | 0.193 | 3.5 | 285 | 320 |
| 1 × 120 | 24/2.52 | 1.2 | 1.5 | 18.9 | 1250 | 0.153 | 3.5 | 335 | 360 |
| 1 × 150 | 30/2.52 | 1.4 | 1.6 | 21.0 | 1557 | 0.124 | 3.5 | 385 | 410 |
| 1 × 185 | 37/2.52 | 1.6 | 1.6 | 23.0 | 1902 | 0.0991 | 3.5 | 450 | 460 |
| 1 × 240 | 48/2.52 | 1.7 | 1.7 | 25.7 | 2438 | 0.0754 | 3.5 | 535 | 535 |
| 1 × 300 | 61/2.52 | 1.8 | 1.8 | 28.2 | 3023 | 0.0601 | 3.5 | 620 | 605 |
| 1 × 400 | 61/2.97 | 2.0 | 1.9 | 32.1 | 3990 | 0.047 | 3.5 | 720 | 685 |
| 1 × 500 | 61/3.23 | 2.2 | 2.0 | 35.0 | 4959 | 0.0366 | 3.5 | 835 | 775 |
| 1 × 630 | 61/3.5 | 2.4 | 2.2 | 39.8 | 6231 | 0.0283 | 3.5 | 960 | 865 |
| 2 × 1.5 | 1/1.38 | 0.7 | 1.8 | 9.6 | 128 | 12.1 | 3.5 | 22 | 35 |
| 2 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.4 | 164 | 7.41 | 3.5 | 33 | 46 |
| 2 × 4 | 1/2.25 | 0.7 | 1.8 | 11.4 | 201 | 4.61 | 3.5 | 43 | 59 |
| 2 × 6 | 1/2.76 | 0.7 | 1.8 | 12.3 | 247 | 3.08 | 3.5 | 55 | 75 |
| 2× 10 | 7/1.38 | 0.7 | 1.8 | 14.6 | 365 | 1.83 | 3.5 | 76 | 100 |
| 2 × 16 | 7/1.78 | 0.7 | 1.8 | 16.4 | 494 | 1.15 | 3.5 | 97 | 130 |
| 2 × 25 | 7/2.14 | 0.9 | 1.8 | 19.6 | 708 | 0.727 | 3.5 | 130 | 165 |
| 2 × 35 | 7/2.52 | 0.9 | 1.8 | 21.6 | 923 | 0.524 | 3.5 | 160 | 200 |
| 2 × 50 | 10/2.52 | 1.0 | 1.8 | 25.2 | 1298 | 0.387 | 3.5 | 195 | 240 |
| 2 × 70 | 14/2.52 | 1.1 | 1.8 | 28.6 | 1704 | 0.268 | 3.5 | 245 | 290 |
| 2 × 95 | 19/2.52 | 1.1 | 2.0 | 32.4 | 2219 | 0.193 | 3.5 | 305 | 355 |
| 2 × 120 | 24/2.52 | 1.2 | 2.1 | 36.0 | 2731 | 0.153 | 3.5 | 355 | 405 |
| 2 × 150 | 30/2.52 | 1.4 | 2.2 | 40.0 | 3358 | 0.124 | 3.5 | 405 | 450 |
| 2 × 185 | 37/2.52 | 1.6 | 2.3 | 44.2 | 4136 | 0.0991 | 3.5 | 465 | 510 |
| 2 × 240 | 48/2.52 | 1.7 | 2.5 | 49.6 | 5250 | 0.0754 | 3.5 | 545 | 590 |
| 2 × 300 | 61/2.52 | 1.8 | 2.7 | 54.6 | 6465 | 0.0601 | 3.5 | 625 | 670 |
| 3 × 1.5 | 1/1.38 | 0.7 | 1.8 | 10.0 | 150 | 12.1 | 3.5 | 18 | 29 |
| 3 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.9 | 186 | 7.41 | 3.5 | 28 | 39 |
| 3 × 4 | 1/2.25 | 0.7 | 1.8 | 12.0 | 239 | 4.61 | 3.5 | 37 | 51 |
| 3 × 6 | 1/2.76 | 0.7 | 1.8 | 13.0 | 304 | 3.08 | 3.5 | 47 | 64 |
| 3 × 10 | 7/1.38 | 0.7 | 1.8 | 15.4 | 471 | 1.83 | 3.5 | 65 | 86 |
| 3 × 16 | 7/1.78 | 0.7 | 1.8 | 17.4 | 658 | 1.15 | 3.5 | 84 | 110 |
| 3 × 25 | 7/2.14 | 0.9 | 1.8 | 20.8 | 961 | 0.727 | 3.5 | 110 | 140 |
| 3 × 35 | 7/2.52 | 0.9 | 1.8 | 23.2 | 1257 | 0.524 | 3.5 | 135 | 170 |
| 3 × 50 | 10/2.52 | 1.0 | 1.8 | 26.8 | 1732 | 0.387 | 3.5 | 170 | 205 |
| 3 × 70 | 14/2.52 | 1.1 | 1.9 | 30.7 | 2564 | 0.268 | 3.5 | 215 | 250 |
| 3 × 95 | 19/2.52 | 1.1 | 2.0 | 34.6 | 3298 | 0.193 | 3.5 | 265 | 300 |
| 3 × 120 | 24/2.52 | 1.2 | 2.1 | 38.4 | 4047 | 0.153 | 3.5 | 310 | 345 |
| 3 × 150 | 30/2.52 | 1.4 | 2.3 | 43.0 | 4981 | 0.124 | 3.5 | 350 | 385 |
| 3 × 185 | 37/2.52 | 1.6 | 2.4 | 47.5 | 6096 | 0.0991 | 3.5 | 405 | 435 |
Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service.

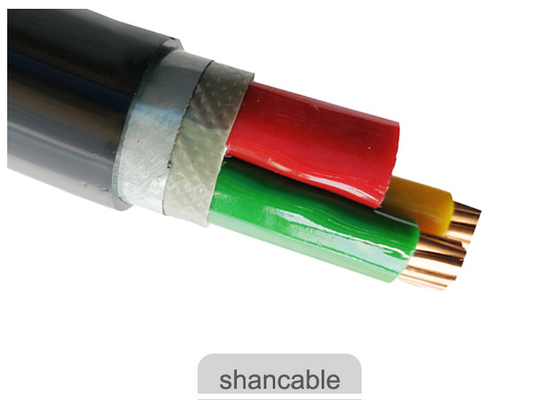

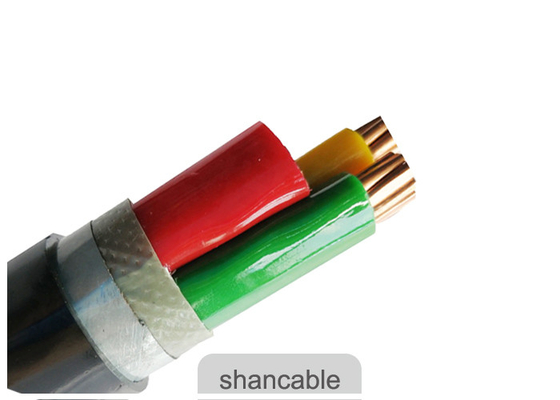

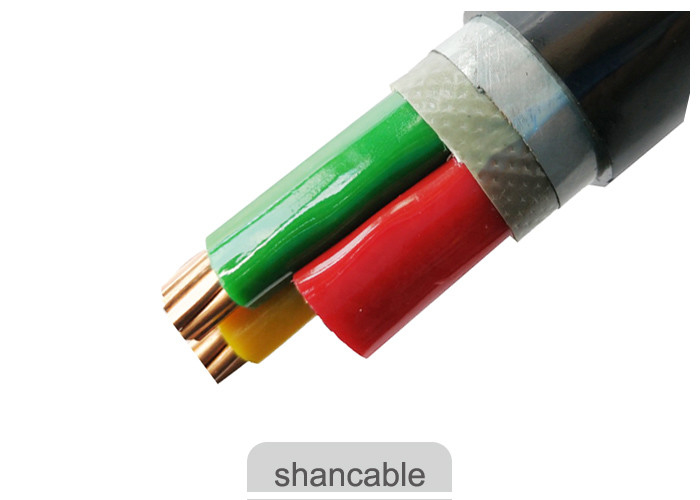

XLPE Insulated PVC Insulated Cables Details
