| Model Name: | Pvc Insulated PVC Sheathed Cable | Application: | Electricity Transmission |
|---|---|---|---|
| Insulation: | XLPE(cross-linked Polyethylene) Rated At 90 OC | Sheath: | PVC Or FR-PVC Type ST2 To IEC 60502, Black |
| Warranty: | 2 Years | Free Sample: | Avaliable |
| High Light: | PVC Electrical Cable,PVC Insulated Power Cable |
||

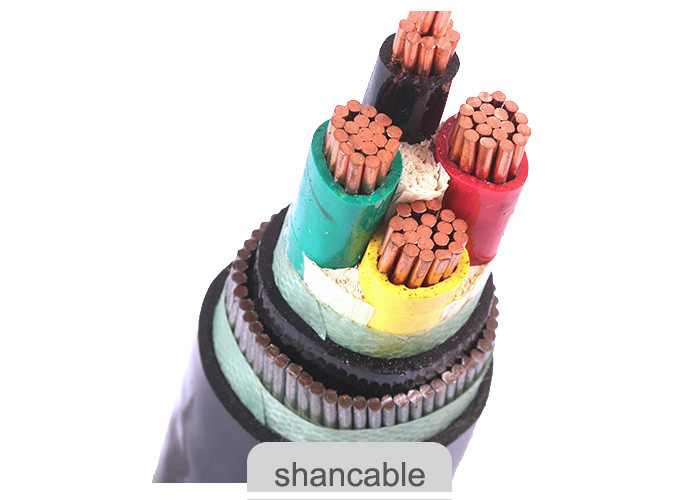

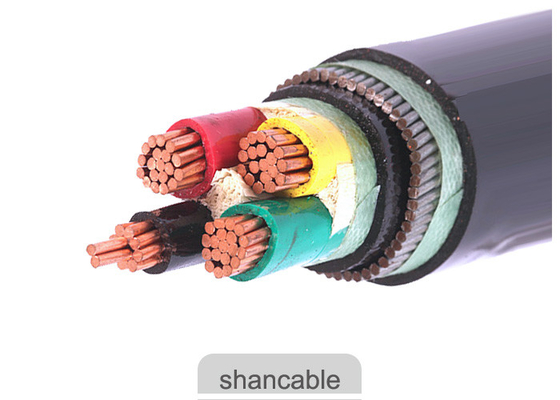

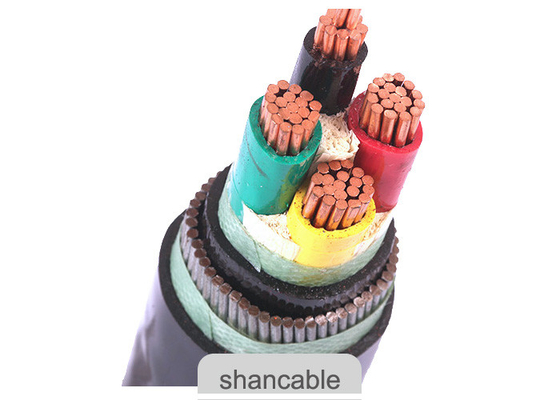

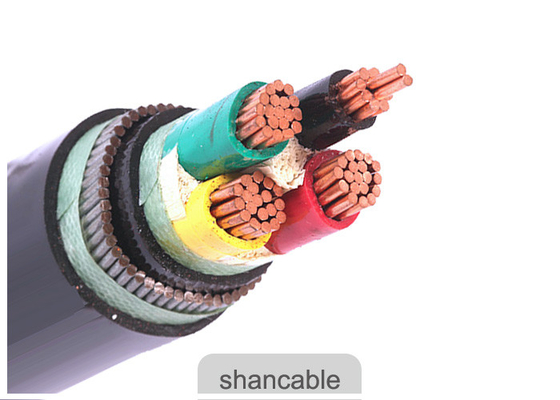

IEC 60502 Pvc Insulated PVC Sheathed Cable For Electricity Transmission
Introduction
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Applications
This cable is suitable for the fixed laying in the AC 50Hz,rated voltage 0.6/1kV and the following transmission and transmission and distribution lines on the road for transmission of electricity can be used.
Standards
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (110OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 500m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
Technical parameter
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 6 | 1/2.76 | 0.7 | 1.4 | 7.6 | 101 | 3.08 | 3.5 | 52 | 69 |
| 1 × 10 | 7/1.38 | 0.7 | 1.4 | 8.7 | 148 | 1.83 | 3.5 | 71 | 92 |
| 1 × 16 | 7/1.78 | 0.7 | 1.4 | 9.6 | 211 | 1.15 | 3.5 | 92 | 115 |
| 1 × 25 | 7/2.14 | 0.9 | 1.4 | 11.2 | 308 | 0.727 | 3.5 | 120 | 150 |
| 1 × 35 | 7/2.52 | 0.9 | 1.4 | 12.2 | 406 | 0.524 | 3.5 | 150 | 180 |
| 1 × 50 | 10/2.52 | 1.0 | 1.4 | 13.6 | 560 | 0.387 | 3.5 | 180 | 215 |
| 1 × 70 | 14/2.52 | 1.1 | 1.4 | 15.3 | 759 | 0.268 | 3.5 | 230 | 265 |
| 1 × 95 | 19/2.52 | 1.1 | 1.5 | 17.2 | 1006 | 0.193 | 3.5 | 285 | 320 |
| 1 × 120 | 24/2.52 | 1.2 | 1.5 | 18.9 | 1250 | 0.153 | 3.5 | 335 | 360 |
| 1 × 150 | 30/2.52 | 1.4 | 1.6 | 21.0 | 1557 | 0.124 | 3.5 | 385 | 410 |
| 1 × 185 | 37/2.52 | 1.6 | 1.6 | 23.0 | 1902 | 0.0991 | 3.5 | 450 | 460 |
| 1 × 240 | 48/2.52 | 1.7 | 1.7 | 25.7 | 2438 | 0.0754 | 3.5 | 535 | 535 |
| 1 × 300 | 61/2.52 | 1.8 | 1.8 | 28.2 | 3023 | 0.0601 | 3.5 | 620 | 605 |
| 1 × 400 | 61/2.97 | 2.0 | 1.9 | 32.1 | 3990 | 0.047 | 3.5 | 720 | 685 |
| 1 × 500 | 61/3.23 | 2.2 | 2.0 | 35.0 | 4959 | 0.0366 | 3.5 | 835 | 775 |
| 1 × 630 | 61/3.5 | 2.4 | 2.2 | 39.8 | 6231 | 0.0283 | 3.5 | 960 | 865 |
| 2 × 1.5 | 1/1.38 | 0.7 | 1.8 | 9.6 | 128 | 12.1 | 3.5 | 22 | 35 |
| 2 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.4 | 164 | 7.41 | 3.5 | 33 | 46 |
| 2 × 4 | 1/2.25 | 0.7 | 1.8 | 11.4 | 201 | 4.61 | 3.5 | 43 | 59 |
| 2 × 6 | 1/2.76 | 0.7 | 1.8 | 12.3 | 247 | 3.08 | 3.5 | 55 | 75 |
| 2× 10 | 7/1.38 | 0.7 | 1.8 | 14.6 | 365 | 1.83 | 3.5 | 76 | 100 |
| 2 × 16 | 7/1.78 | 0.7 | 1.8 | 16.4 | 494 | 1.15 | 3.5 | 97 | 130 |
| 2 × 25 | 7/2.14 | 0.9 | 1.8 | 19.6 | 708 | 0.727 | 3.5 | 130 | 165 |
| 2 × 35 | 7/2.52 | 0.9 | 1.8 | 21.6 | 923 | 0.524 | 3.5 | 160 | 200 |
| 2 × 50 | 10/2.52 | 1.0 | 1.8 | 25.2 | 1298 | 0.387 | 3.5 | 195 | 240 |
| 2 × 70 | 14/2.52 | 1.1 | 1.8 | 28.6 | 1704 | 0.268 | 3.5 | 245 | 290 |
| 2 × 95 | 19/2.52 | 1.1 | 2.0 | 32.4 | 2219 | 0.193 | 3.5 | 305 | 355 |
| 2 × 120 | 24/2.52 | 1.2 | 2.1 | 36.0 | 2731 | 0.153 | 3.5 | 355 | 405 |
| 2 × 150 | 30/2.52 | 1.4 | 2.2 | 40.0 | 3358 | 0.124 | 3.5 | 405 | 450 |
| 2 × 185 | 37/2.52 | 1.6 | 2.3 | 44.2 | 4136 | 0.0991 | 3.5 | 465 | 510 |
| 2 × 240 | 48/2.52 | 1.7 | 2.5 | 49.6 | 5250 | 0.0754 | 3.5 | 545 | 590 |
| 2 × 300 | 61/2.52 | 1.8 | 2.7 | 54.6 | 6465 | 0.0601 | 3.5 | 625 | 670 |
| 3 × 1.5 | 1/1.38 | 0.7 | 1.8 | 10.0 | 150 | 12.1 | 3.5 | 18 | 29 |
| 3 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.9 | 186 | 7.41 | 3.5 | 28 | 39 |
| 3 × 4 | 1/2.25 | 0.7 | 1.8 | 12.0 | 239 | 4.61 | 3.5 | 37 | 51 |
| 3 × 6 | 1/2.76 | 0.7 | 1.8 | 13.0 | 304 | 3.08 | 3.5 | 47 | 64 |
| 3 × 10 | 7/1.38 | 0.7 | 1.8 | 15.4 | 471 | 1.83 | 3.5 | 65 | 86 |
| 3 × 16 | 7/1.78 | 0.7 | 1.8 | 17.4 | 658 | 1.15 | 3.5 | 84 | 110 |
| 3 × 25 | 7/2.14 | 0.9 | 1.8 | 20.8 | 961 | 0.727 | 3.5 | 110 | 140 |
| 3 × 35 | 7/2.52 | 0.9 | 1.8 | 23.2 | 1257 | 0.524 | 3.5 | 135 | 170 |
| 3 × 50 | 10/2.52 | 1.0 | 1.8 | 26.8 | 1732 | 0.387 | 3.5 | 170 | 205 |
| 3 × 70 | 14/2.52 | 1.1 | 1.9 | 30.7 | 2564 | 0.268 | 3.5 | 215 | 250 |
| 3 × 95 | 19/2.52 | 1.1 | 2.0 | 34.6 | 3298 | 0.193 | 3.5 | 265 | 300 |
| 3 × 120 | 24/2.52 | 1.2 | 2.1 | 38.4 | 4047 | 0.153 | 3.5 | 310 | 345 |
| 3 × 150 | 30/2.52 | 1.4 | 2.3 | 43.0 | 4981 | 0.124 | 3.5 | 350 | 385 |
| 3 × 185 | 37/2.52 | 1.6 | 2.4 | 47.5 | 6096 | 0.0991 | 3.5 | 405 | 435 |
| 3 × 240 | 48/2.52 | 1.7 | 2.6 | 53.3 | 7729 | 0.0754 | 3.5 | 480 | 500 |
| 3 × 300 | 61/2.52 | 1.8 | 2.8 | 58.6 | 9509 | 0.0601 | 3.5 | 555 | 565 |
| 3 × 400 | 61/2.97 | 2.0 | 3.1 | 67.2 | 12479 | 0.047 | 3.5 | 640 | 640 |
Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
