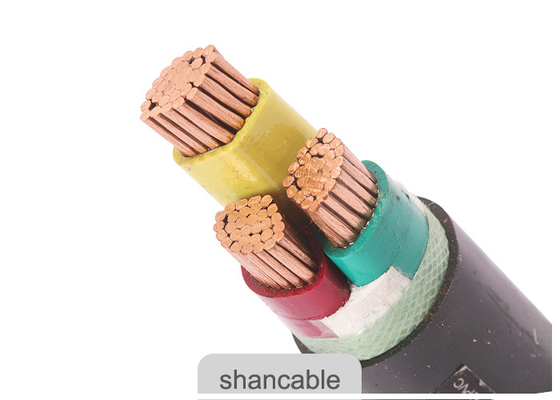

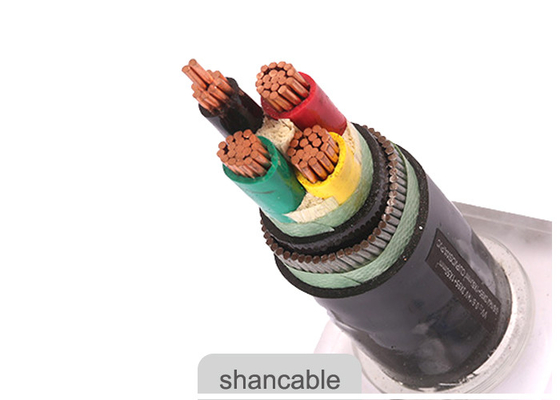

Three Core Copper Conductor XLPE Insulated Low Voltage 1kV Power Cable

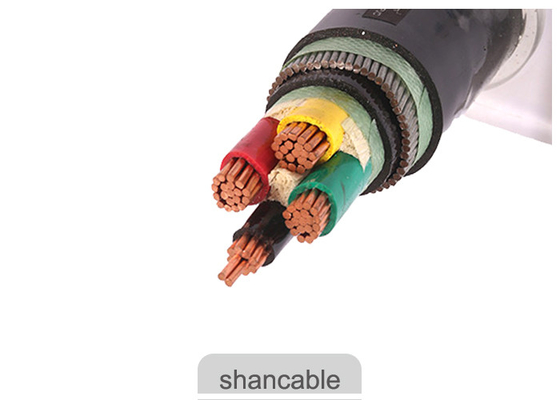

Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Applications
This cable is suitable for the fixed laying in the AC 50Hz,rated voltage 0.6/1kV and the following transmission and transmission and distribution lines on the road for transmission of electricity can be used.
Standards
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (110OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 500m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
Technical parameter
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 1.5 | 1/1.38 | 0.7 | 1.4 | 6.2 | 49 | 12.1 | 3.5 | 21 | 32 |
| 1 ×2.5 | 1/1.78 | 0.7 | 1.4 | 6.6 | 62 | 7.41 | 3.5 | 31 | 42 |
| 1 × 4 | 1/2.25 | 0.7 | 1.4 | 7.1 | 79 | 4.61 | 3.5 | 41 | 55 |
| 1 × 6 | 1/2.76 | 0.7 | 1.4 | 7.6 | 101 | 3.08 | 3.5 | 52 | 69 |
| 1 × 10 | 7/1.38 | 0.7 | 1.4 | 8.7 | 148 | 1.83 | 3.5 | 71 | 92 |
| 1 × 16 | 7/1.78 | 0.7 | 1.4 | 9.6 | 211 | 1.15 | 3.5 | 92 | 115 |
| 1 × 25 | 7/2.14 | 0.9 | 1.4 | 11.2 | 308 | 0.727 | 3.5 | 120 | 150 |
| 1 × 35 | 7/2.52 | 0.9 | 1.4 | 12.2 | 406 | 0.524 | 3.5 | 150 | 180 |
| 1 × 50 | 10/2.52 | 1.0 | 1.4 | 13.6 | 560 | 0.387 | 3.5 | 180 | 215 |
| 1 × 70 | 14/2.52 | 1.1 | 1.4 | 15.3 | 759 | 0.268 | 3.5 | 230 | 265 |
| 1 × 95 | 19/2.52 | 1.1 | 1.5 | 17.2 | 1006 | 0.193 | 3.5 | 285 | 320 |
| 1 × 120 | 24/2.52 | 1.2 | 1.5 | 18.9 | 1250 | 0.153 | 3.5 | 335 | 360 |
| 1 × 150 | 30/2.52 | 1.4 | 1.6 | 21.0 | 1557 | 0.124 | 3.5 | 385 | 410 |
| 1 × 185 | 37/2.52 | 1.6 | 1.6 | 23.0 | 1902 | 0.0991 | 3.5 | 450 | 460 |
| 1 × 240 | 48/2.52 | 1.7 | 1.7 | 25.7 | 2438 | 0.0754 | 3.5 | 535 | 535 |
| 1 × 300 | 61/2.52 | 1.8 | 1.8 | 28.2 | 3023 | 0.0601 | 3.5 | 620 | 605 |
| 1 × 400 | 61/2.97 | 2.0 | 1.9 | 32.1 | 3990 | 0.047 | 3.5 | 720 | 685 |
| 1 × 500 | 61/3.23 | 2.2 | 2.0 | 35.0 | 4959 | 0.0366 | 3.5 | 835 | 775 |
| 1 × 630 | 61/3.5 | 2.4 | 2.2 | 39.8 | 6231 | 0.0283 | 3.5 | 960 | 865 |
| 2 × 1.5 | 1/1.38 | 0.7 | 1.8 | 9.6 | 128 | 12.1 | 3.5 | 22 | 35 |
| 2 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.4 | 164 | 7.41 | 3.5 | 33 | 46 |
| 2 × 4 | 1/2.25 | 0.7 | 1.8 | 11.4 | 201 | 4.61 | 3.5 | 43 | 59 |
| 2 × 6 | 1/2.76 | 0.7 | 1.8 | 12.3 | 247 | 3.08 | 3.5 | 55 | 75 |
| 2× 10 | 7/1.38 | 0.7 | 1.8 | 14.6 | 365 | 1.83 | 3.5 | 76 | 100 |
| 2 × 16 | 7/1.78 | 0.7 | 1.8 | 16.4 | 494 | 1.15 | 3.5 | 97 | 130 |
| 2 × 25 | 7/2.14 | 0.9 | 1.8 | 19.6 | 708 | 0.727 | 3.5 | 130 | 165 |
| 2 × 35 | 7/2.52 | 0.9 | 1.8 | 21.6 | 923 | 0.524 | 3.5 | 160 | 200 |
| 2 × 50 | 10/2.52 | 1.0 | 1.8 | 25.2 | 1298 | 0.387 | 3.5 | 195 | 240 |
| 2 × 70 | 14/2.52 | 1.1 | 1.8 | 28.6 | 1704 | 0.268 | 3.5 | 245 | 290 |
| 2 × 95 | 19/2.52 | 1.1 | 2.0 | 32.4 | 2219 | 0.193 | 3.5 | 305 | 355 |
| 2 × 120 | 24/2.52 | 1.2 | 2.1 | 36.0 | 2731 | 0.153 | 3.5 | 355 | 405 |
| 2 × 150 | 30/2.52 | 1.4 | 2.2 | 40.0 | 3358 | 0.124 | 3.5 | 405 | 450 |
| 2 × 185 | 37/2.52 | 1.6 | 2.3 | 44.2 | 4136 | 0.0991 | 3.5 | 465 | 510 |
| 2 × 240 | 48/2.52 | 1.7 | 2.5 | 49.6 | 5250 | 0.0754 | 3.5 | 545 | 590 |
| 2 × 300 | 61/2.52 | 1.8 | 2.7 | 54.6 | 6465 | 0.0601 | 3.5 | 625 | 670 |
| 3 × 1.5 | 1/1.38 | 0.7 | 1.8 | 10.0 | 150 | 12.1 | 3.5 | 18 | 29 |
| 3 ×2.5 | 1/1.78 | 0.7 | 1.8 | 10.9 | 186 | 7.41 | 3.5 | 28 | 39 |
| 3 × 4 | 1/2.25 | 0.7 | 1.8 | 12.0 | 239 | 4.61 | 3.5 | 37 | 51 |
| 3 × 6 | 1/2.76 | 0.7 | 1.8 | 13.0 | 304 | 3.08 | 3.5 | 47 | 64 |
| 3 × 10 | 7/1.38 | 0.7 | 1.8 | 15.4 | 471 | 1.83 | 3.5 | 65 | 86 |
| 3 × 16 | 7/1.78 | 0.7 | 1.8 | 17.4 | 658 | 1.15 | 3.5 | 84 | 110 |
| 3 × 25 | 7/2.14 | 0.9 | 1.8 | 20.8 | 961 | 0.727 | 3.5 | 110 | 140 |
| 3 × 35 | 7/2.52 | 0.9 | 1.8 | 23.2 | 1257 | 0.524 | 3.5 | 135 | 170 |
| 3 × 50 | 10/2.52 | 1.0 | 1.8 | 26.8 | 1732 | 0.387 | 3.5 | 170 | 205 |
| 3 × 70 | 14/2.52 | 1.1 | 1.9 | 30.7 | 2564 | 0.268 | 3.5 | 215 | 250 |
| 3 × 95 | 19/2.52 | 1.1 | 2.0 | 34.6 | 3298 | 0.193 | 3.5 | 265 | 300 |
| 3 × 120 | 24/2.52 | 1.2 | 2.1 | 38.4 | 4047 | 0.153 | 3.5 | 310 | 345 |
| 3 × 150 | 30/2.52 | 1.4 | 2.3 | 43.0 | 4981 | 0.124 | 3.5 | 350 | 385 |
| 3 × 185 | 37/2.52 | 1.6 | 2.4 | 47.5 | 6096 | 0.0991 | 3.5 | 405 | 435 |
| 3 × 240 | 48/2.52 | 1.7 | 2.6 | 53.3 | 7729 | 0.0754 | 3.5 | 480 | 500 |
| 3 × 300 | 61/2.52 | 1.8 | 2.8 | 58.6 | 9509 | 0.0601 | 3.5 | 555 | 565 |
| 3 × 400 | 61/2.97 | 2.0 | 3.1 | 67.2 | 12479 | 0.047 | 3.5 | 640 | 640 |
