Product Details:
Payment & Shipping Terms:
|
| Name: | Electrical Cable Wire | INSULATION: | PVC |
|---|---|---|---|
| Conductor: | Copper Conductor | Certificates: | CE,ROHS,CCC,KEMA And More Other At Request |
| Core: | Single Core | Application: | Indoor Applications |
| High Light: | electrical wire cable,insulated wire cable |
||

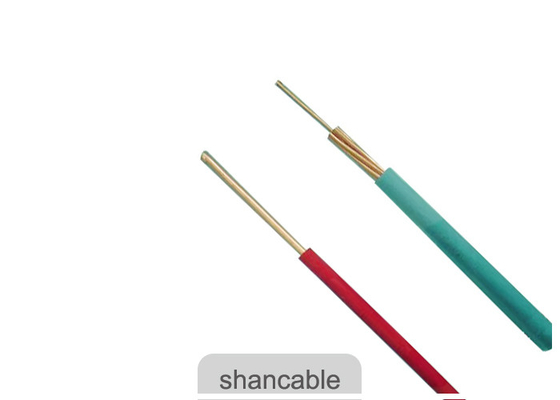

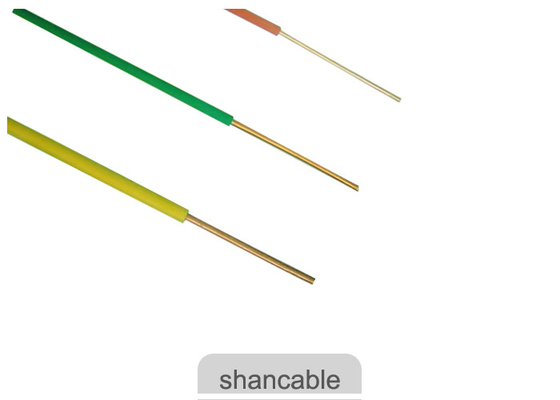

Single Core Electrical Cable Wire Solid Or Stranded Copper Conductor
Electrical Cable Wire Introduction :
Solid/Stranded Copper, Cl.1/Cl.2, PVC Insulation
As per standard IEC 60227 IEC 60228 GB/T5023-2008
Electrical Cable Wire Constructions
Conductor: Solid or Stranded copper conductor, conforms to IEC 60228 class 1or class 2
Insulation : PVC compound rated 70ºC or 85ºC for continuous operation.
Note: Insulation color as per standards or customer requirement
Electrical Cable Wire Applications
The cable is suitble to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of
electric enquipment, instrument, eletron equipment, automatization device etc.
Standards
International: IEC 60227 IEC 60331, IEC 61034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Electrical Cable Wire Technical data
Rated voltage:300/500 V, 300/300V, 450/750V
Max. Conductor Temp. in normal use: 70°C or 90°C
Electrical Cable Wire Certificates
CE, RoHS, CCC, KEMA and more others at request
Packing: Wooden Iron drum or 100m/roll then put into wooden Case.
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
