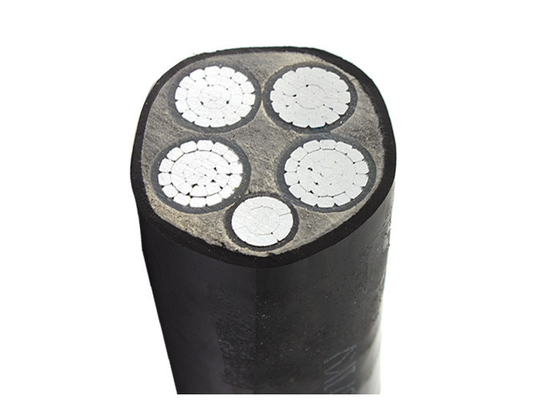

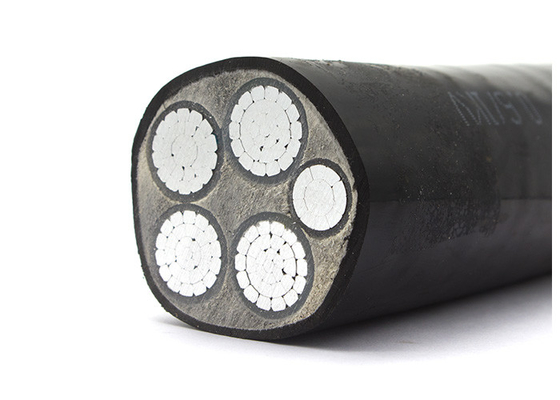

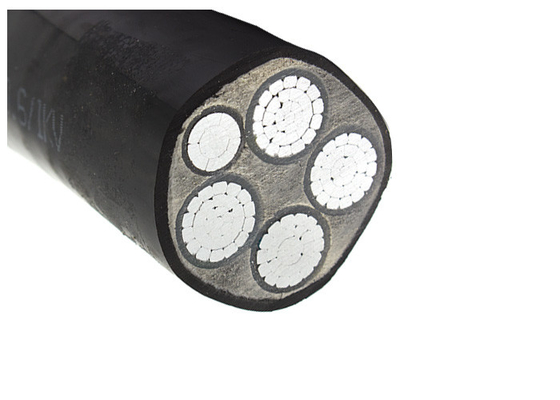

Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable

China Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable supplier
Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable supplier Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable supplier Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable supplier

Large Image :  Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: PVC Insulation Power Cable 0.6-1KV Aluminum

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Model Name: PVC Insulation Power Cable Conductor: Aluminum Conductor
Insulation: PVC Rated At 70 OC Sheath: PVC Or FR-PVC Type ST2 To IEC 60502, Black
Application: Transmission And Lighting Free Sample: Avaliable
High Light:

PVC Electrical Cable

,

PVC Insulated Power Cable

XLPE Insulated PVC Insulated Cables Power Transmission And Distribution System



PVC Insulation Power Cable Constructions



Conductor :Stranded Aluminum conductor, Cl.2 as per IEC 60228

Insulation : PVC rated at 70 OC

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



PVC Insulation Power Cable Applications



This cable is suitable for the fixed laying in the AC 50Hz,rated voltage 0.6/1kV and the following transmission and lighting and distribution lines on the road for transmission of electricity can be used.



PVC Insulation Power Cable Standards



International: IEC 60502, IEC 60228,

China: GB/T 12706, GB/T 3956

Other standards such as CE, KEMA ,BS,DIN and ICEA upon request



PVC Insulation Power Cable Technical data



Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (70 OC), emergency (110OC) or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core



Certificates



CE, RoHS, , KEMA and more others at request



XLPE Insulated PVC Insulated Cables Technical parameter



Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable 0



Details



Four And Five Core PVC Insulation Power Cable / Aluminum Conductor PVC Electrical Cable 1



Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service.
