Product Details:
Payment & Shipping Terms:
|
| Model Name: | Low Voltage Power Cable | Conductor: | Copper Conductor |
|---|---|---|---|
| Insulation: | PVC Rated At 70 OC | Core: | Four Core |
| Standard: | IEC 60228 | Type: | Low Voltage Power Cable |
| High Light: | PVC Electrical Cable,PVC Insulated Power Cable |
||

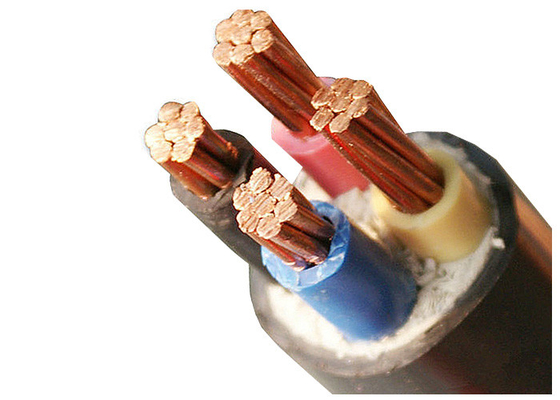

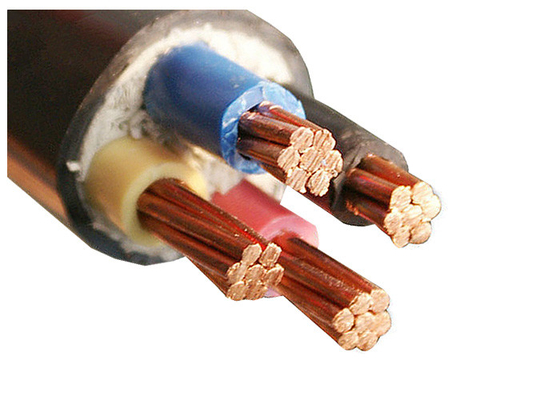

Four Core Copper Conductor PVC Insulated Cables , 1kV Low Voltage Power Cable
Low Voltage Power Cable Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : PVC rated at 70 OC
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Low Voltage Power Cable Standards
International: IEC 60502, IEC 60228,
China: GB/T 12706, GB/T 3956
Other standards such as BS,DIN and ICEA upon request
Low Voltage Power Cable Technical data
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (70 OC), emergency (110OC) or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
Low Voltage Power Cable Technical parameter
Low Voltage Power Cable Details
Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service.
