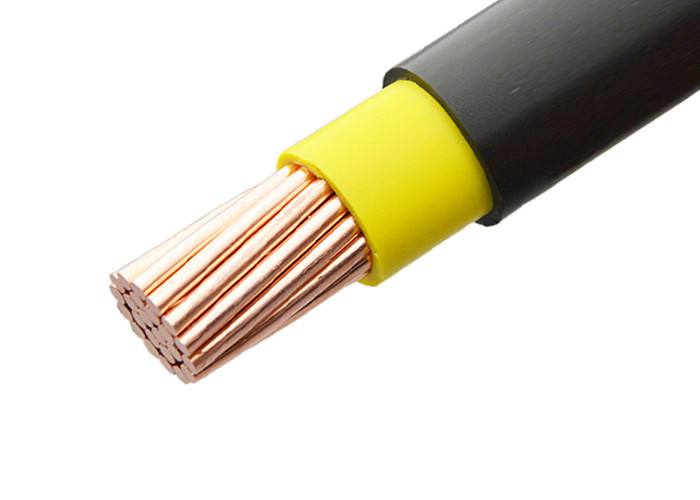

Single Core PVC insulated Power Cable , 800 x 600
insulated Power Cable Constructions
① Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 2
② Insulation: PVC
③ Sheath: PVC type ST2 to IEC 60502, black
insulated Power Cable Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
insulated Power Cable Standards
International: IEC 60502-1, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
insulated Power Cable Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70℃), short circuit no more than 5 s (160℃ when section area below 300mm2, 140℃ when section area above 300mm2)
Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
insulated Power Cable Specifications
1Core
| Nom. Cross-section of conductor |
Strands No. |
Insulation Thickness |
Sheath Thickness |
Approx. O.D. |
Approx.Weight |
Max. D.C Resistance of Conductor (20 ℃ )Ω /km |
Testing Voltage A.C |
| mm2 |
piece |
mm |
mm |
mm |
kg/km |
kV/5min |
kV/5min |
| 1 × 1.5 |
1 |
0.8 |
1.4 |
6.1 |
50.7 |
12.1 |
3.5 |
| 1 × 2.5 |
1 |
0.8 |
1.4 |
6.5 |
63.5 |
7.41 |
3.5 |
| 1 × 4 |
1 |
1.0 |
1.4 |
7.4 |
87.7 |
4.61 |
3.5 |
| 1 × 6 |
1 |
1.0 |
1.4 |
7.9 |
111.0 |
3.08 |
3.5 |
| 1 × 10 |
7 |
1.0 |
1.4 |
8.8 |
166.6 |
1.83 |
3.5 |
| 1 × 16 |
7 |
1.0 |
1.4 |
9.8 |
233.3 |
1.15 |
3.5 |
| 1 × 25 |
7 |
1.2 |
1.4 |
11.2 |
344.9 |
0.727 |
3.5 |
| 1 × 35 |
7 |
1.2 |
1.4 |
12.2 |
449.8 |
0.524 |
3.5 |
| 1 × 50 |
19 |
1.4 |
1.4 |
13.6 |
590.5 |
0.387 |
3.5 |
| 1 × 70 |
19 |
1.4 |
1.4 |
15.4 |
807.3 |
0.268 |
3.5 |
| 1 × 95 |
19 |
1.6 |
1.5 |
17.2 |
1102.0 |
0.193 |
3.5 |
| 1 × 120 |
37 |
1.6 |
1.5 |
18.7 |
1349.0 |
0.153 |
3.5 |
| 1 × 150 |
37 |
1.8 |
1.6 |
20.6 |
1654.0 |
0.124 |
3.5 |
| 1 × 185 |
37 |
2 |
1.7 |
22.7 |
2060.0 |
0.0991 |
3.5 |
| 1 × 240 |
37 |
2.2 |
1.8 |
25.4 |
2651.0 |
0.0754 |
3.5 |
| 1 × 300 |
61 |
2.4 |
1.9 |
28.0 |
3323.0 |
0.0601 |
3.5 |
| 1 × 400 |
61 |
2.6 |
2 |
31.9 |
4205.0 |
0.0470 |
3.5 |
| 1 × 500 |
61 |
2.8 |
2.1 |
35.8 |
5359.0 |
0.0366 |
3.5 |
| 1 × 630 |
61 |
2.9 |
2.2 |
40.3 |
6707.0 |
0.0283 |
3.5 |
| 1 × 800 |
61 |
2.9 |
2.4 |
45.7 |
8064.0 |
0.0221 |
3.5 |
