Product Details:
Payment & Shipping Terms:
|
| Product Name: | PVC Insulation Electrical Cable And Wire | Nominal Area Of Conductor: | Power Cable:1.5mm2 To 800mm2 |
|---|---|---|---|
| Test Voltage: | 3.5KV/5min | Standard: | IE650502-1,IEC60228,IEC60227 |
| Application: | Power Transmission And Distribution And Lighting Systems | Rated Voltage: | 600/1000V |
| Outer Sheath Colour: | Black White,Green/or According To Customer’s Requirment | Type: | VV |
| High Light: | 800 X 600 4 core pvc cable,KEMA pvc flexible cable |
||

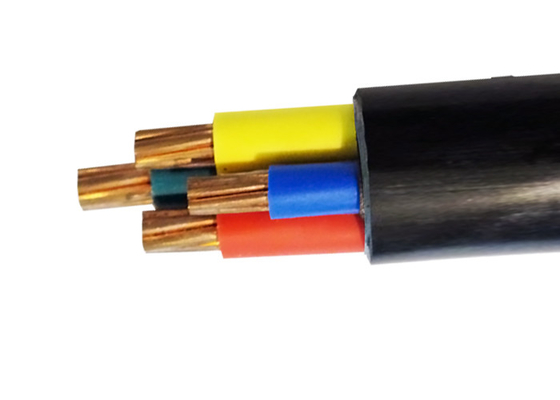

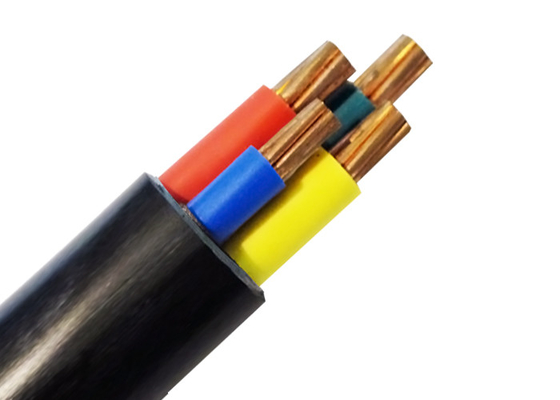

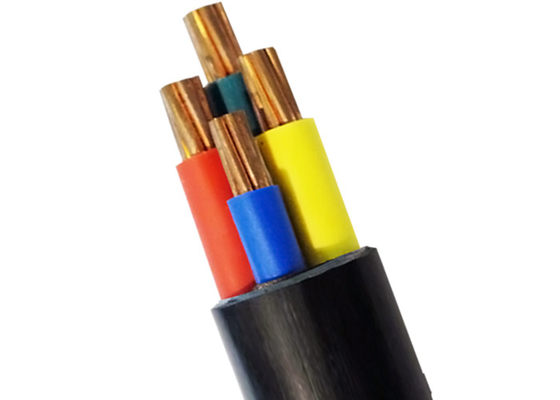

Four Core 800 X 600 PVC Insulated Cables KEMA Certificate
PVC Insulated Cables Constructions
① Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 2
② Insulation: PVC
③ Sheath: PVC type ST2 to IEC 60502, black
PVC Insulated Cables Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
PVC Insulated Cables Standards
International: IEC 60502-1, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
PVC Insulated Cables Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70℃), short circuit no more than 5 s (160℃ when section area below 300mm2, 140℃ when section area above 300mm2)
Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
PVC Insulated Cables Specifications
4 Cores
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃)Ω /km | Testing Voltage A.C | |
| mm2 | pc/mm | mm | mm | Lower Limit (mm) | Upper Limit (mm) | kg/km | Ω /km | kV/5min |
| 4 × 10 | 7/1.38 | 1.0 | 1.8 | 18.7 | 20.4 | 393.0 | 1.83 | 3.5 |
| 4 × 16 | 7/1.78 | 1.0 | 1.8 | 21.2 | 22.9 | 541.0 | 1.15 | 3.5 |
| 4 × 25 | 7/2.14 | 1.2 | 1.8 | 24.5 | 26.2 | 794.0 | 0.727 | 3.5 |
| 4 × 35 | 7/2.52 | 1.2 | 1.8 | 26.9 | 28.6 | 1037.0 | 0.524 | 3.5 |
| 4 × 50 | 10/2.52 | 1.4 | 1.8 | 26.8 | 28.5 | 1227.0 | 0.387 | 3.5 |
| 4 × 70 | 14/2.52 | 1.4 | 1.8 | 28.0 | 29.7 | 1650.0 | 0.268 | 3.5 |
| 4 × 95 | 19/2.52 | 1.6 | 2.0 | 32.9 | 34.6 | 2213.0 | 0.193 | 3.5 |
| 4 × 120 | 24/2.52 | 1.6 | 2.1 | 34.8 | 36.5 | 2273.0 | 0.153 | 3.5 |
| 4 × 150 | 30/2.52 | 1.8 | 2.2 | 40.0 | 41.7 | 3396.0 | 0.124 | 3.5 |
| 4 × 185 | 37/2.52 | 2.0 | 2.3 | 43.5 | 45.2 | 3943.0 | 0.0991 | 3.5 |
| 4 × 240 | 48/2.52 | 2.2 | 2.5 | 49.0 | 50.7 | 5135.0 | 0.0754 | 3.5 |
| 4 × 300 | 61/2.52 | 2.4 | 2.7 | 54.6 | 56.3 | 6436.0 | 0.0601 | 3.5 |
| 4 × 400 | 61/2.97 | 2.6 | 3.1 | 69.0 | 70.7 | 8356.0 | 0.0470 | 3.5 |
Details
Packing and shipping: We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
