Single Core Aluminum Conductor 1kV PVC Insulated Cables

China Single Core Aluminum Conductor 1kV PVC Insulated Cables supplier
Single Core Aluminum Conductor 1kV PVC Insulated Cables supplier Single Core Aluminum Conductor 1kV PVC Insulated Cables supplier Single Core Aluminum Conductor 1kV PVC Insulated Cables supplier Single Core Aluminum Conductor 1kV PVC Insulated Cables supplier Single Core Aluminum Conductor 1kV PVC Insulated Cables supplier

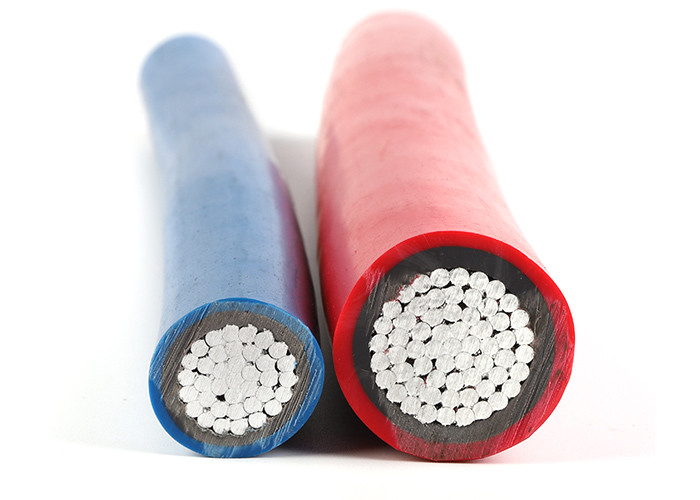

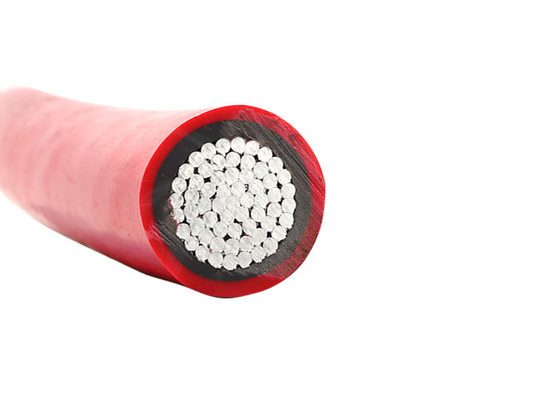

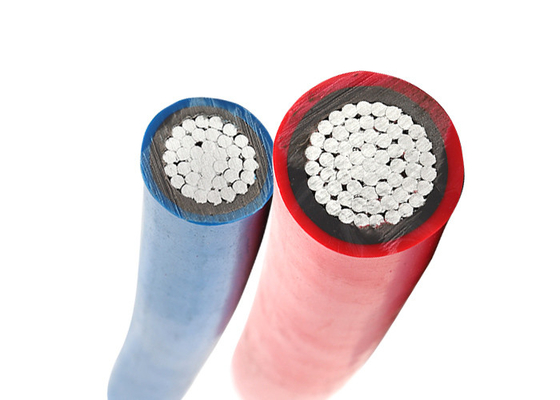

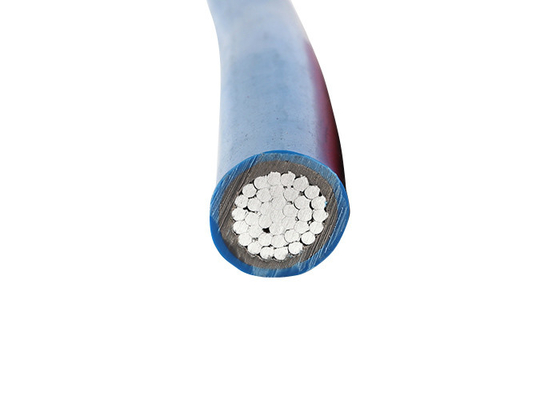

Large Image :  Single Core Aluminum Conductor 1kV PVC Insulated Cables

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Model Number: YLV 0.6-1V single core

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Certification: IEC 60228 Conductor: Compact Stranded Aluminum Conductor
Insulation: PVC (Polyvinyl Chloride) Sheath: PVC Or FR-PVC Type
Application: Underground,Power Station,Solar PV System Type: Low Voltage
High Light:

1kV PVC Insulated Cables

,

Aluminum Conductor PVC Insulated Cables

,

Stranded PVC Insulated Cables

Single Core Aluminum Conductor PVC Insulated Low Voltage 1kV Power Cable





Constructions

Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Insulation : PVC (Polyvinyl Chloride) rated at 90 OC

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black





Applications

This cable is suitable for the fixed laying in the AC 50Hz,rated voltage 0.6/1kV and the following transmission and transmission and distribution lines on the road for transmission of electricity can be used.



Standards

International: IEC 60502, IEC 60228,

China: GB/T 12706, GB/T 3956

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90 OC), emergency (110OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core



Certificates

CE, RoHS,KEMA and more others at request





Commercial Items: MOQ: 500m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum







Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 ×2.5 1/1.78 0.7 1.4 6.6 62 12.1 3.5 24 32
1 × 4 1/2.25 0.7 1.4 7.1 79 7.41 3.5 32 42
1 × 6 1/2.76 0.7 1.4 7.6 101 4.61 3.5 42 54
1 × 10 7/1.38 0.7 1.4 8.7 148 3.08 3.5 55 69
1 × 16 7/1.78 0.7 1.4 9.6 211 1.91 3.5 71 90
1 × 25 7/2.14 0.9 1.4 11.2 308 1.2 3.5 94 115
1 × 35 7/2.52 0.9 1.4 12.2 406 0.868 3.5 115 135
1 × 50 10/2.52 1.0 1.4 13.6 560 0.641 3.5 140 165
1 × 70 14/2.52 1.1 1.4 15.3 759 0.443 3.5 180 200
1 × 95 19/2.52 1.1 1.5 17.2 1006 0.32 3.5 220 240
1 × 120 24/2.52 1.2 1.5 18.9 1250 0.253 3.5 260 275
1 × 150 30/2.52 1.4 1.6 21.0 1557 0.206 3.5 300 310
1 × 185 37/2.52 1.6 1.6 23.0 1902 0.164 3.5 350 355
1 × 240 48/2.52 1.7 1.7 25.7 2438 0.125 3.5 414 410
1 × 300 61/2.52 1.8 1.8 28.2 3023 0.1 3.5 485 465
1 × 400 61/2.97 2.0 1.9 32.1 3990 0.0778 3.5 570 535
1 × 500 61/3.23 2.2 2.0 35.0 4959 0.0605 3.5 670 610
1 × 630 61/3.5 2.4 2.2 39.8 6231 0.0469 3.5 790 695
